HC-660T Professional Kelvar Ceiling Speaker hi fi Audio

Description

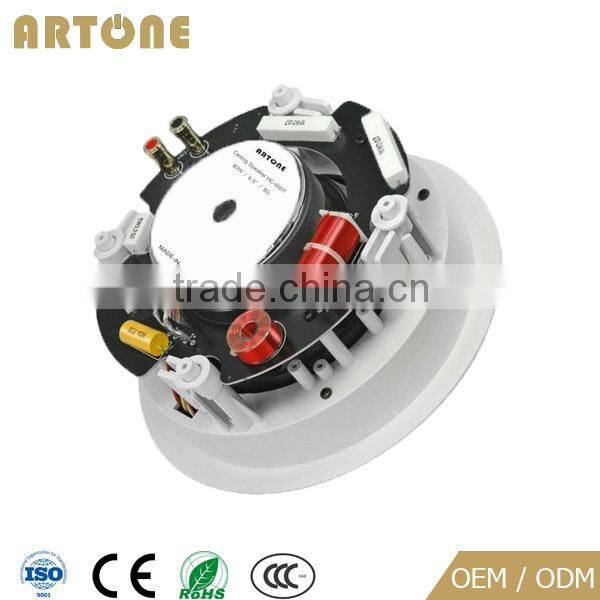

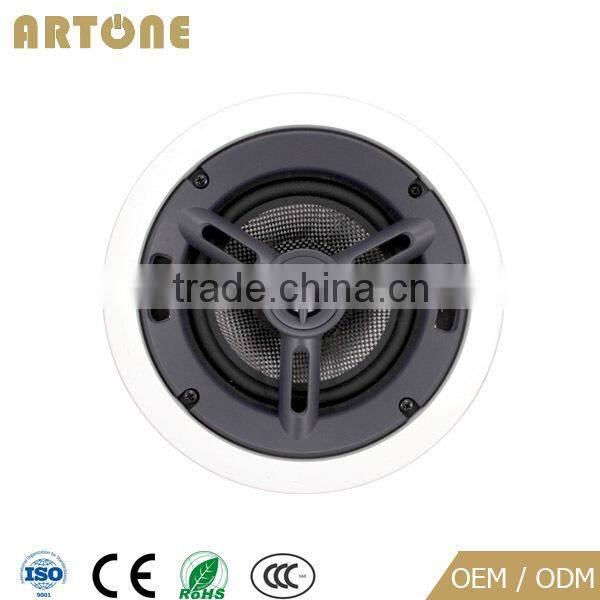

ARTONE Ceiling speaker HC-660T is an audiophile level inceiling speaker, designed in 2-way 6-1/2'' speaker with pivot tweeter. The state-of-art crossover makes perfect frequency separation to kelvar woofer and alu tweeter. The speaker power at 50W  @ 8Ω, and handling power max to 125W , frequency response 30-21KHz , sensitivity 91dB (1W/1M), ±3 dB adjust for treble and bass,cutout size 206 mm  mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling decoration, home cinema or home theater system, home av integration, meeting room/conference room audio purpose, etc.

Installation Guide

The ARTONE Hifi in ceiling speaker  HC-660T is designed not only for environmental embedding, but also for quick and easy installation, very practical use in background audio system.

Before ceiling speaker installation, user have to study the environment, choose the power of speaker, the mounting type, the noise level in surroundings,  the height of ceiling, etc.

First, to open a hole in ceiling according to the cutout size of ceiling speaker, then pull and lead the speaker wires or speaker cables through it from where amplifier is placed. Connect the speaker wires to the ceiling speaker.

Take out or remove the grill from the surface of speaker. Unlock or loose the L-shape clips on rear side of ceiling speakers by unscrew the screws on front of speaker, and put it onto the ceiling hole. Then fasten the screws from front of ceiling speaker, the in-ceiling speaker will be fastened tight by the clips as soon as it is set on the ceiling.

Specification

Packaging & Shipping

First Packing: Plastic Bag (to prevent it from scratch);

Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)

Third Packing: Carton Box (For easier delivery and selling)

Forth Packing: General Packing for 8 pieces speakers, for fast loading and handling
