2016 Size D R20 Zinc Carbon Battery
Basic information:
Product | 2016 Size D R20 Zinc Carbon Battery |
Battery standard | IEC standard |
Nominal voltage | 1.5 Volts |
Open-circuit voltage | 1.69 Volts |
Closed-circuit voltage | 1.52 Volts |
Diameter | 32.30-34.20 MM |
Height | 59.50-61.50 MM |
Average weight | 76.50 Grams |
Shelf life | 24 Months |
Main battery material | Manganese dioxide, Zinc, Acetylene black, Grophite powder, Carbon rod, Plating cap, Tinplate bottom etc |
Application | Flashlight, Torch, Radio, Water heater,Electronic product etc |
Detailed pictures below for your reference:
Battery Performance Testing Lab:
Technical data of batteries:
Art. No.
| Battery
Type
| Nominal Voltage | Shelf Life (Month) |
Test Conditions | Discharge Time | |
IEC Standard(IEC 60085-2:2007) | PERFECELL | |||||
P123
| R20 D UM-1 |
1.5
|
24
| 20±2°C,3.9Ω, 24h/d, E.P.V. 0.9V | ----- | ≥350 Min |
20±2°C,10Ω, 4h/d, E.P.V. 0.9V | 1080 Min | ≥1500 Min | ||||

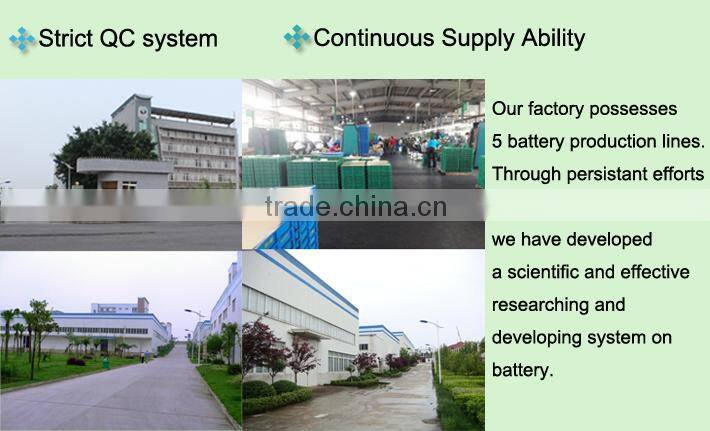

Quality control & performance:
1)Our battery is made of high quality raw materials which have been inspected strictly before usage.
2)Our workers and technicians closely watched each step in the battery production processes, strictly executed the quality management system to insure each battery up to IEC standard.
3)Our battery has the characteristics of high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge, and it has low decline rate of capacity.

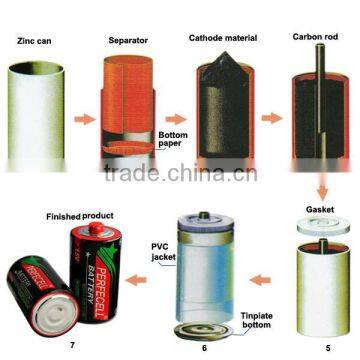

Product procedure:
1 | Zinc can | The zinc can is the negative terminal and anode material |
2 | Inserting the separator | The separator and the bottom paper are inserted to prevent battery short-circuit between the positive and the negative electrode. |
3 | Filling cathode material | The mixture of manganese dioxide, electrolyte and others are filled as the cathode material |
4 | Inserting carbon rod | The carbon rod for collecting electricity is inserted into the middle of the battery |
5 | Sealing | The plastic gasket for sealing is fitted to prevent leakage and water evaporation |
6 | Fitting tinplate bottom and PVC jacket | The tinplate bottom is placed on the bottom of zinc can and PVC jacket is shrinked |
7 | Finished product | The batteries are packed by shrink after inspecting the voltage, current and appearance |
Packaging details:
Shrink pack | 2 PCS |
Inner Box | 24 PCS |
Colorful carton | 288 PCS |
Gross weight | 24.00KGS |
Net weight | 23.00KGS |
Measurement | 420X285X210MM |
1X20’FCL container | 1,100 Cartons |
About our company:
Important notice of dry battery:
1)Insert batteries properly. |
2)Keep batteries away from infants. |
3)Remember to switch off. |
4)Dry batteries are not rechargeable. |
5)Remove used-up batteries soon. |
Posters:
Passionate Customer-service + Specialists Outstanding Technology
- We promise to provide you with high quality battery.
- With over18 years' experience in battery business, we guarantee each single piece of battery is reliable in quality.
- Our battery is made of high quality raw materials which have been inspected strictly before usage.
- Our workers and technicians closely watch each step in the battery production processes, strictly execute the quality management system to ensure each battery up to IEC standard.
- Our battery has the characteristics of high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge, and it has low decline rate of capacity.
- 24 hours online service.
- The guranteed shelf life of our product is 50% longer than the requirement in IEC
Please feel free to contact us if any questions.
Q: What kind of certificates do you have?
A: SONCAP, ISO9001-2008.
Q: How long is your quality guarantee period?
A: 24 months. While only 18 months required by IEC standard.
Q: Where are your main markets?
A: We mainly export to Pakistan, Afghanistan, Myanmar, Armenia, Ethiopia,Guinea,Nigeria, U.S.A, and Belgium .
We promise to provide you with high quality battery as well as high efficiency services.
