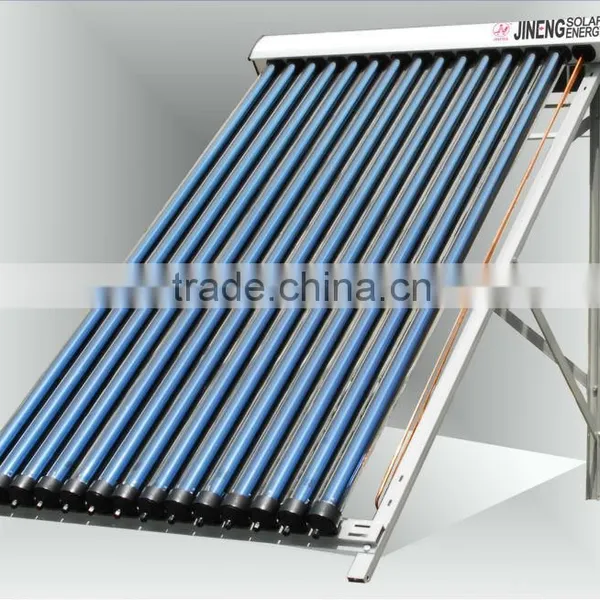

U-Tube High Pressurized Solar Thermal Collectors

 U-Tube High  Pressurized Solar Thermal Collectors

 1.Working principle:

U-pipe solar collector bends a straight copper pipe to U-shape at a certain position, and two ends of the copper pipe are parallel with one end higher than the other. The collector consists of water channel for U-shape pipe, insulation layer, vacuum tube and frame, and it also contains U-shape copper pipe and metal sheet. When the collector is working, sunshine passes through the outer tube, and the inner tube is exposed to the sunlight. The aluminum fin is connected closely to the inner tube, and it transfers the heat absorbed by the vacuum tubes to the U-shape copper pipe, and then the heat is transferred to the working medium by the copper pipe. As a result, the temperature of the working medium is becoming higher and higher, and then water in the tank is heated by absorbing heat transferred by the medium.

2. Detailed Information:

 1) Header material: Red copper

 2) Manifold connection size: 3/4’inch

 3) Collector: Red copper with aluminum fin

 4) Head box material: 2.0mm aluminum

 5) Insulation layer: 50mm rock wool

 6) Working Pressure: 0.6MPa

 7) U-shape pipe: 0.6mm copper pipe

3. Features:

1. Rigid connection method is adopted by our U-pipe solar collector, so the ageing and leakage phenomena caused by the silicone seal are avoided

2. The water doesn’t flow through the vacuum tube, thus scaling problems is prevented. Furthermore, the heat collecting efficiency won’t be reduced after long-time service.

3. The installation angle won’t affect the mounting method, and this machine can be fixed horizontally or vertically which means that it can be hanged on the balcony as well.

4. Our product can be used as the non-pressure type or pressurized type and the whole system is still able to work even if one vacuum tube is broken.

5. Forced heat transfer via liquid is achieved by the circulation pump, and the heat transfer efficiency is very high.

6. The solar collectors can be assembled together by series and parallel connections to form big scale heat collecting project.

4. Packing details:

Five models of U-shape solar collector are available now, and they have the same length and height whose specific values are 1970mm and 136mm, respectively, on the other hand, the width is different, and the numbers are 88mm, 103mm, 1268mm, 1493mm and 1643mm. Among these models, the smallest aperture area is 0.87 m2 while the number of the biggest one can reach up to 1.73m2. JNSC-58-1800-10U takes up a volume of 0.273m3, and a 40'HG container can load 249 sets of this model while it can only load 136 sets of JNSC-58-1800-20U under the same condition.

As a specialized U-PIPE solar collector manufacturer and supplier in China, our company also provides solar evacuated tube, non pressure solar water heater, split solar water heating system, among others.

5. Service:

1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
4. 1% extra vacuum tubes, slicone rings will be sent for free.
