4axes compression CNC spring coiling machine

FOB Price

USD $1 - $1,000,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	GuangJin
Model Number	GJ-20A	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Features

1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.

2, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine

3, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles

4, ensure that the 100% Taiwan imported, superior quality

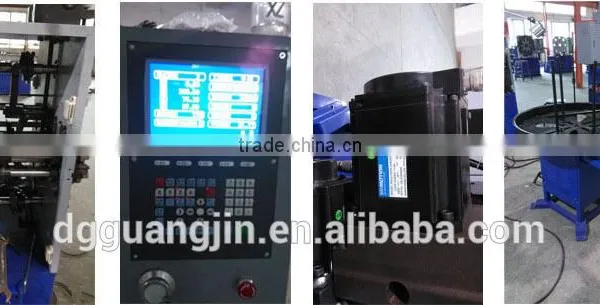

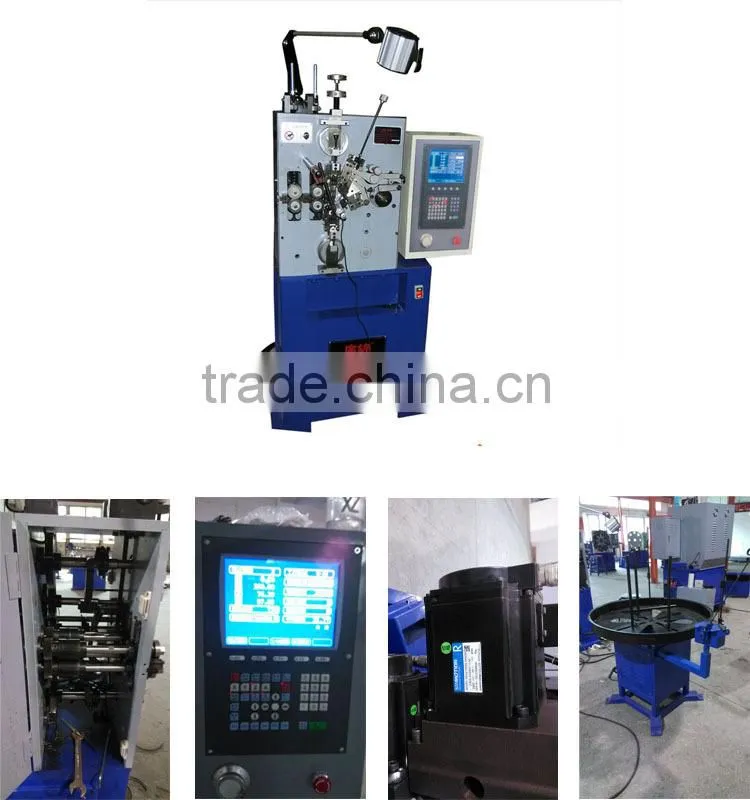

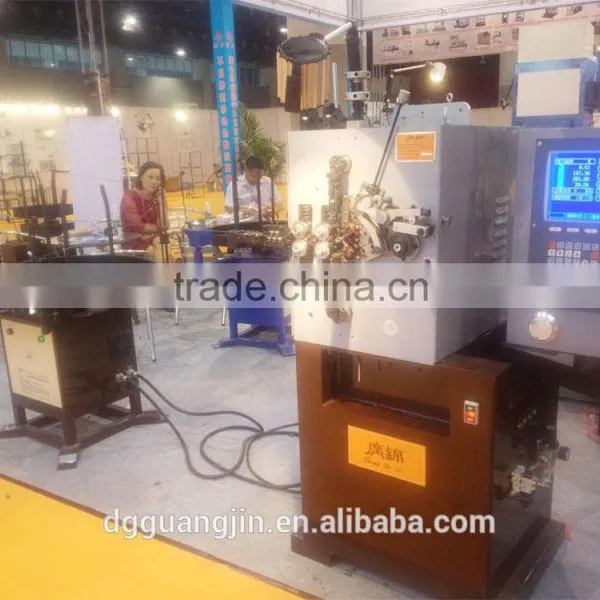

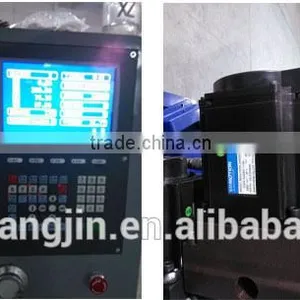

Pictures

Technical Parameters

Machine	compression spring machine
Model	GJ-20A
Wire Size	Φ0.15- Φ2.0mm
Axis	4 axis
Wind direction	Right and Left Hand
Feeding Length	±0.1~±9999.99
Wire feed speed	0~150m/min
Cam Setting value	±0.1°~±359.9°
Max Feeding length	Unlimited
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor	2.0kw 1.5kw 1.5kw 1kw
Power AC	380v±10%V50HZ
Dimensions(LWH)mm	5408001300
Weight	650kg
