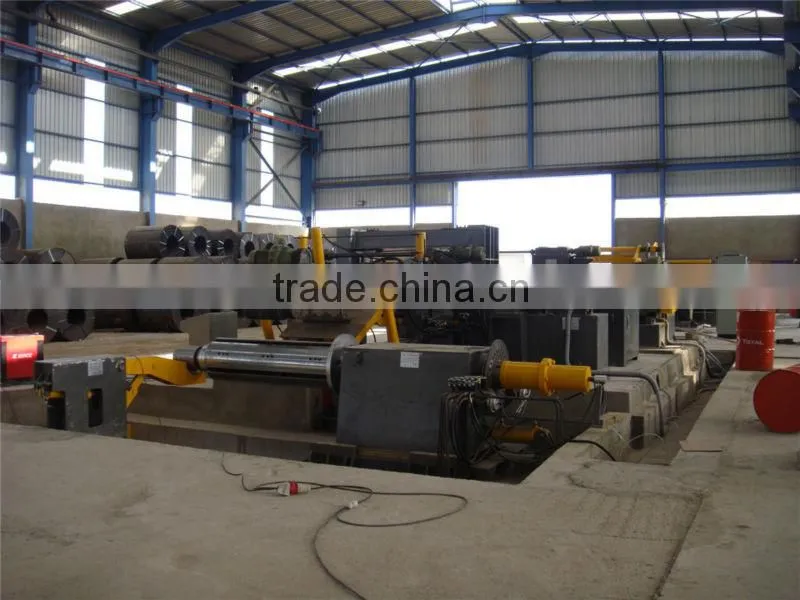

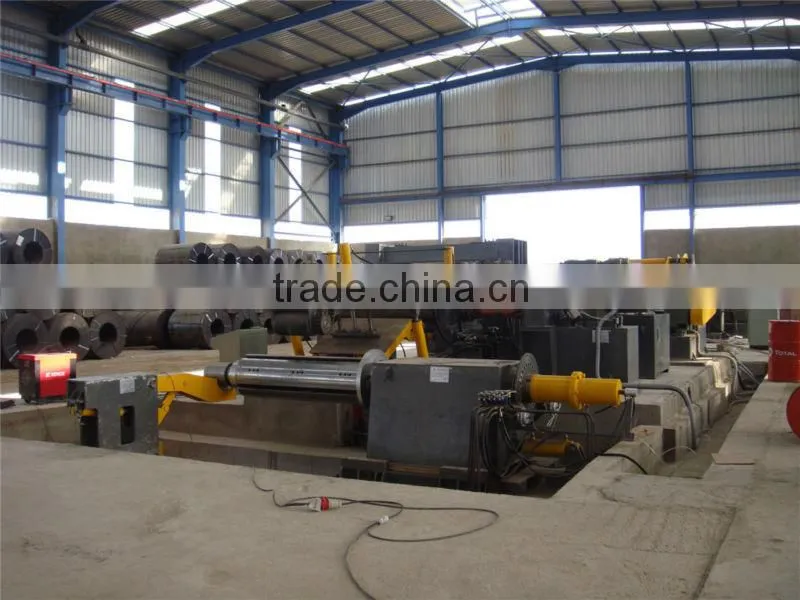

(0.7-6.0)*1600mm Metal sheet slitting line

I. Introduction of the steel sheet slitting line:

Slitting line machine is not only for the steel serivice cutting industry, but also for the pipe industry. A lot of customers make the pipes before slitting the large coil to the small size of coils. Mother coil has slit into the required width to become many separate narrow coil.

Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, etc. It mainly used in coil or hot rolled carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.

This line can be adjusted to do recoiling or dividing work to meet customer’s demand.

II. Consist of the metal slitting machine:

1. Coil car

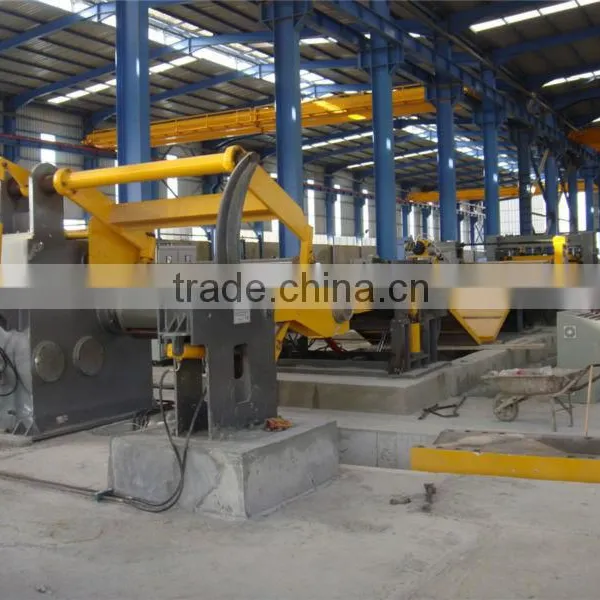

2. Decoiler

3. Peeler entry table

4. Straightener

5. Shearing machine

6. Loop table

7. Coil guide and pinch roll

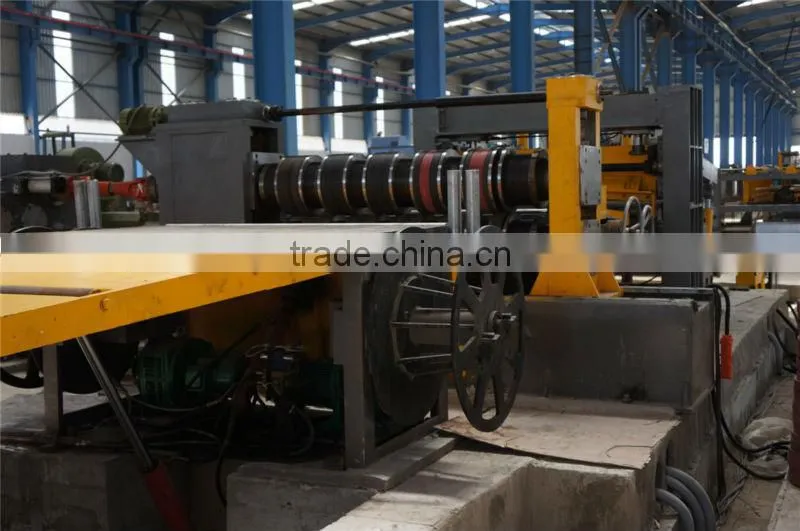

8. Slitting machine

9. Scrap winder (both sides)

10. Loop table

11. Separator and tension table

12. Deflector roll and exit threading table

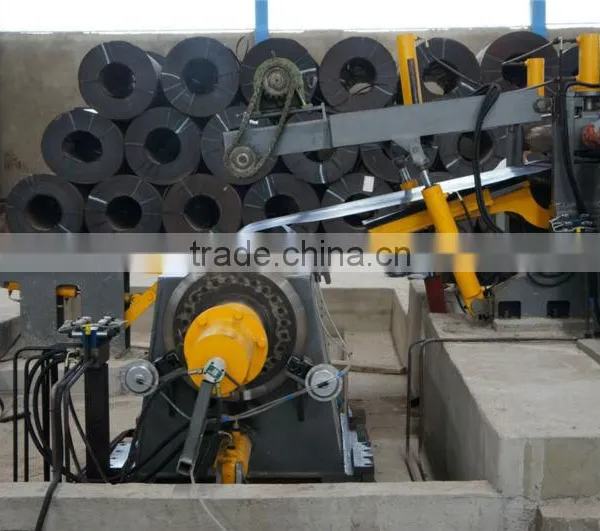

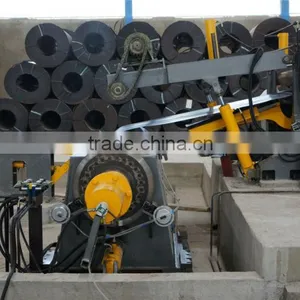

13. Recoiler

14. Over arm separator in the recoiler.

15. Exit coil car for recoiler

16. Hydraulic system

17. Pneumatic system

18. Electrical control system

III. Main technical parameters:

Material: cold and hot rolled steel coils;

Steel coil thickness: 0.7-6.0mm;

Steel coil width: 500-1600mm;

Steel coil I.D.: Φ508mm;

Steel coil O.D.: ≤Φ1800mm;

Steel strip weight: 20T Max;

Min steel strip width: 250mm

Slitting speed: 50 m/min

Width accuracy: ±0.2mm

Slitting burr: 6% of coil thickness

Side scrap width: 1.5-15mm

Slitting straightness error: 1.0mm/1000mm
