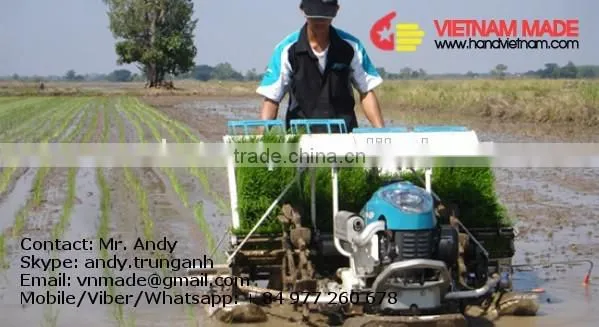

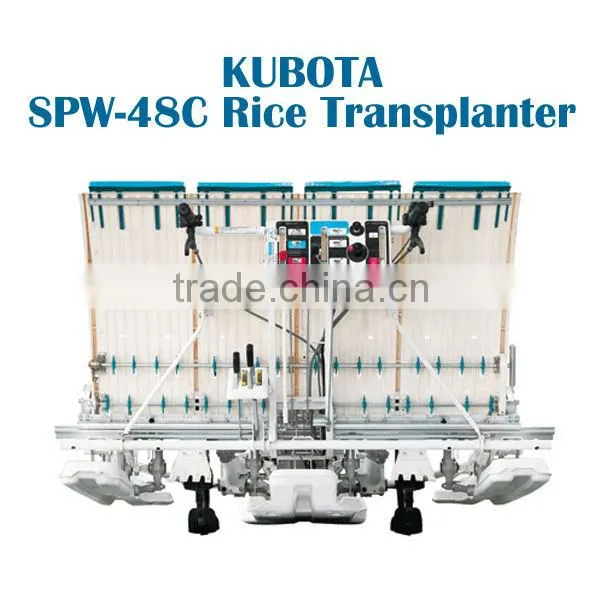

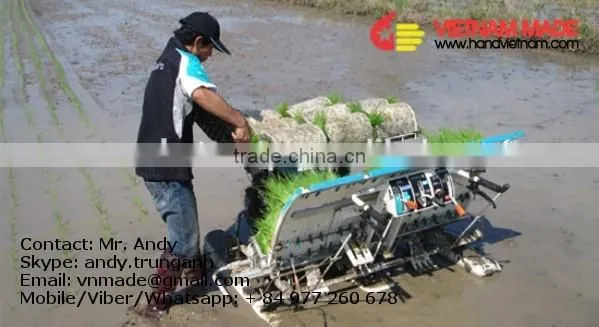

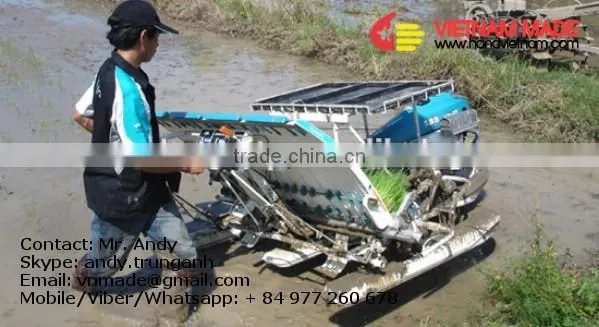

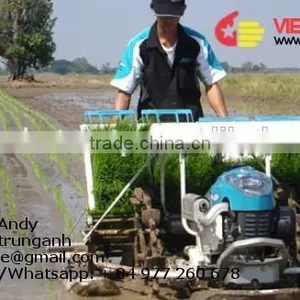

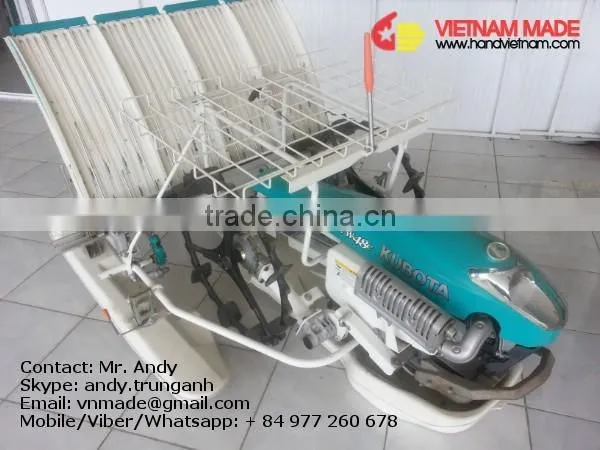

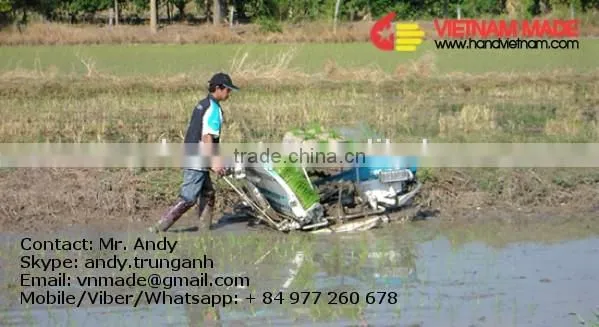

KUBOTA tobacco transplanter SPW-48C

Model

SPW-48C

Type

Walk-behind type

Dimensions

Overall length ( mm{inch} )

2140{84.25}

Overall width ( mm{inch} )

1630{64.17}

Overall height ( mm{inch} )

910{35.83}

Weight ( kg )

160

Engine

Model

MZ175-B-1

Type

Air-cooled, 4-cycIe, OHV gasoline engine

Total displacement ( L {cc} )

0.171 {171}

Output / revolution speed

( kW {PS} / rpm )

2.6 {3.5} /3000 MAX [3.2 {4.3}]

Applicable fuel

Unleaded gasoline for automobile

Tank capacity ( L )

4.0

Ignition system

Contact less magneto ignition

Starting system

Hand Recoil starter

Fuel efficiency ( kg/ha )

2.0-4.7

Traveling

Wheel adjustment

Hydraulic system (Up / Down)

Wheel

Type

Rubber lug wheel with thick rim

External dlameter

( mm{inch} )

φ660{φ25.98}

Number of shifting positions

Forward 2 (Planting 1) / Reverse 1

Planting portion

Number of planting rows

4

Distance between rows (cm )

30

Hill space ( cm )

*12,14,16,18,21

Number of hills per 3.3m2

*90,80,70,60,50

Planting depth ( cm )

*0.7 - 3.7 [ 5 positions ]

Number of seedlings per hill

*Seedling crossfeed [ 2 positions ],
Vertical taking quantity [ 7mm{0.28} - 17mm{0.67} ]

Planting speed ( m/s )

0.34 - 0.77

Travelling speed on road ( m/s )

0.58 - 1.48

Operation efficlency ( acre/h )

0.22 - 0.52

Seeding condition

Seedling type

Seedling mat

Seedling height ( cm )

10 - 25

Number of leaves

2.0 - 4.5

Number of boxes for spare seedlings

3
