Home > Products > Ceramic Rods > STCERA high alumina ceramic tube 99% al2o3 Tolerance to 0.001mm
STCERA high alumina ceramic tube 99% al2o3 Tolerance to 0.001mm
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- STCERA 99.5 Alumina Ceramic Screws
- STCERA 99% Aluminum Oxide Ceramic Rods Resistor ceramic rod
- STCERA Alumina mechanical rolling pins rods Ceramic pin holder
- STCERA Best Selling Zirconia Ceramic Screws
- STCERA Cavitation Resistance Ceramic Piston Rod
- STCERA Technical ZrO2 ceramic rolling pin, heater ceramic pin holder
Product Details
Place of Origin: | Hunan, China | Application: | Industrial Ceramic |
Model Number: | ST201509257 | Brand Name: | STCERA |
Product Description
STCERA high alumina ceramic tube 99% al2o3 Tolerance to 0.001mm

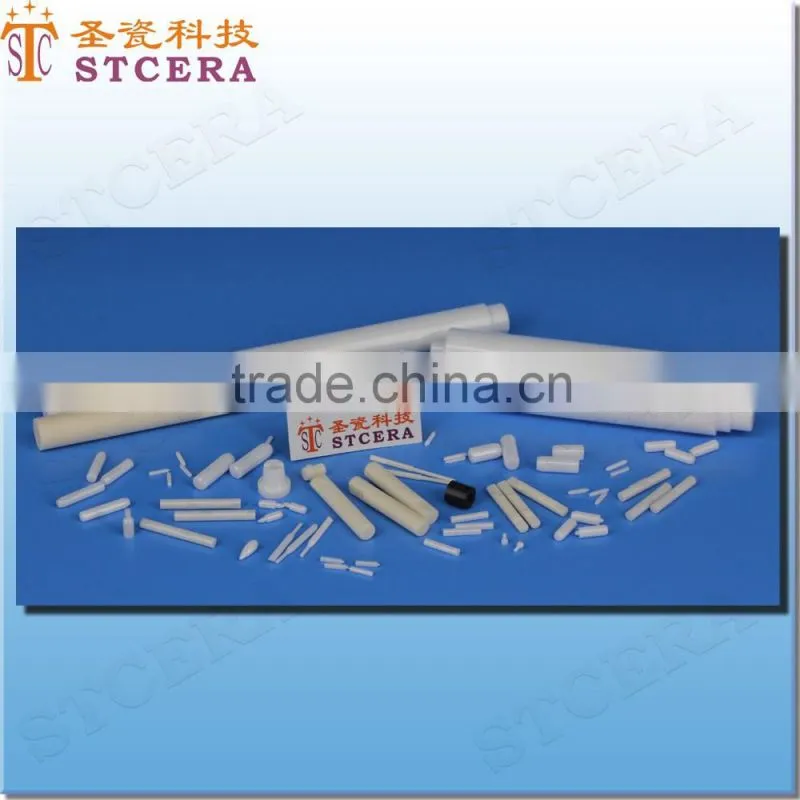

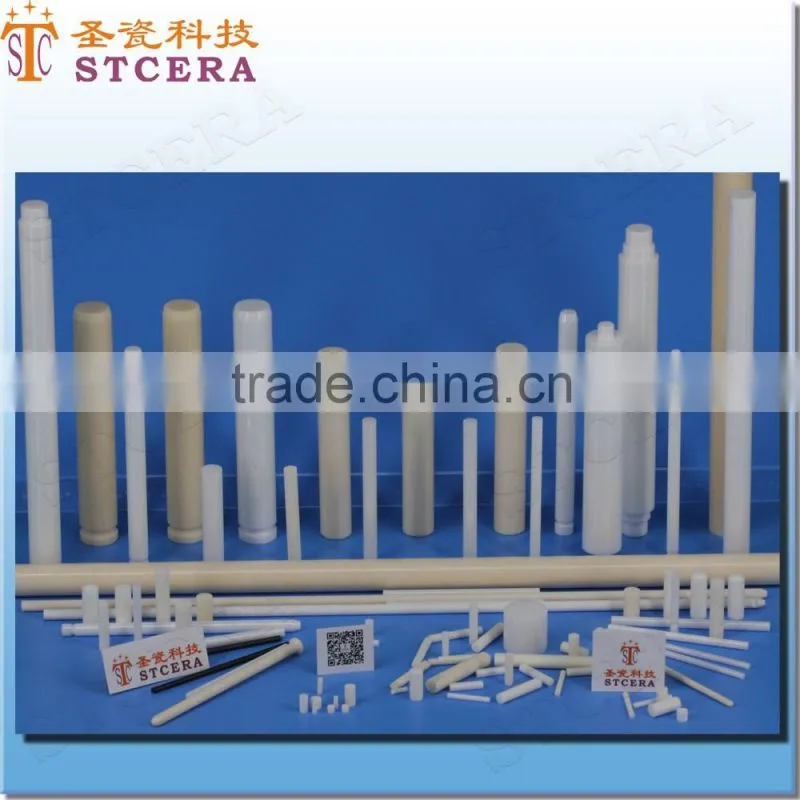

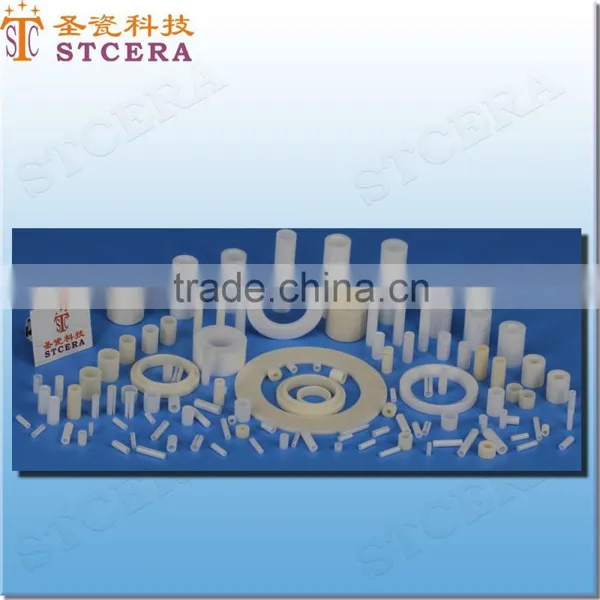

Product Pictures Display
More products to choose
---------------------------------------------------Ceramic Robot Arm--------------------------------------
----------------------------------------------------------------Ceramic Rod------------------------------------------------------------------
---------------------------------------------------------------Ceramic Plate------------------------------------------------------------------
--------------------------------------------------------Industrial Ceramic Parts----------------------------------------------------------
Material data sheet
Properties | Unit | Alumina | Zirconia | ||||
96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP | ||
Colour | - | White | White | Ivory | Ivory | Translucent | white/black |
Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 |
Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 |
Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 |
Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 |
KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 |
Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 |
Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 |
Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 |
Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 |
Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 |
Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 |
Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 |
Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
(RT) |
Advanced equipments and Exquisite Machining Process
Quick Details
Place of Origin: | Hunan, China (Mainland) |
Type: | precision ceramic parts |
Color: | White or Ivory |
MOQ: | 1 piece |
Material: | Alumina(Al2O3)Ceramics/Zirconia(ZrO2)Ceramics |
Testing Way: | Quality Control |
Including Shape: | Tube, Rod, Plate, Ring and so on |
Main products: | Precision Alumina & Zirconia Ceramic Tube, Ceramic Rod, Ceramic Plate, Ceramic Ring |
Main Properties: | Wear Resistant, Electrical Insulator, Resist High Temperature |
Practical Application: | Semiconductor devices/Medical equipment/Electronics/LED |
Main Forming Way: | Molding/Sintering/Dry Press/high-temperature sintering/grinding/polishing etc |
Samples: | Custom-made is acceptable,we can provide free sample when we have the sample in stock |
Payment: | 30% deposit in advance, the balance paid before shipment. |
Payment Terms: | T/T, L/C, Paypal |
Packaging & Delivery
Packaging Details: | 1. Carton with Bubble bag or foam. |
Delivery Details: | 1. 3-25 days for sample |
Shipment Terms: | 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc. |
About Hunan STCERA Co.,Ltd
About us | 1. Welcome custom-made and sample firstly;
2. All products must pass the inspection by professional QC team; Quality guaranteed,
3. Good After Sales service: We have responsible after sale service staff to contact
4. STCERA Principle: Honest Operation, Customer satisfaction, Talents oriented,
|
About our company | 1.Hunan STCERA Co., Ltd. is a private technological enterprise which is professional in
2. We have our own brand and factory,With a whole set of equipments;
3. The most advanced equipments we have: Dry pressing molding, cold isostatic press complicate shape products CNC machining and so on;
4. We also have the most professional precision ceramic and super hard Material specialists and technician team. |
Pictures of our industrial park
1. How we get an offer? |
You can send your drawing with technology requirements and the quantity you need. If you can, pls inform what’s application of your part? We will quote for you asap.
|
2. can you provide sample order? |
Yes, custom-made sample is acceptable. We can also provide free sample when we have the sample in stock as customer requirement with freight collected.
|
3. What materials do you have? |
high purity(95%,96%,97%,99%,99.5%,99.8%) Alumina(Al2O3), Zirconia(ZrO2), Silicon Nitride.
|
4. What's your best selling products? |
ceramic tube, ceramic rod, ceramic plate, ceramic ring |
