Packaging For Glass Bottles Machine

Specifications

packaging for glass bottles machine
1.Suitable bottle size :250-1500ml
2.capacity:4000bph







packaging for glass bottles machine main performance



a, Upper and lower motor driven conveyor system to facilitate film convey.

b, Stick-free Teflon-coated sealing cutter to ensure clear and stick-free sealing lines.

c, Reinforced conveyor motor ensure steady transport.

d, Adopting German advanced technology, elaborating according to European process.

e, Imported converter to achieve to 0-12m/min. Adjustable speed range.

f, Large power double fan motor, assure enough circulate wind.

g, Ultra strong cooling system to ensure quick formation after heat-shrinking of products.

h, Furnished with anchor bolts for integration with the production line.

i, The electrical units are chosen from international famous companies.

Such as OMRON, SICK, NAIS, MITUBISHI and so on.

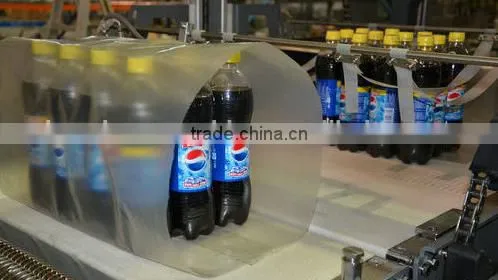

Suitable for such products as pop-top cans, glass bottles, beer and mineral water. It is also can be packed wood, round steel, China steel and so on. Applicable to PVC and PE shrink film. The packed good is neatness, compact, suitable for long transportation.







 Packaging for glass bottles machine technical parameter



model				ST6030AF SEALING MACHINE			SM6540 SHRINKING TUNNEL
horizonta height and				850 ± 50mm/2000mm
length of infeed conveyor
max packing dimension				L500*W300*H300			W650*H400*L Unlimited
minium packing size				280*100*100mm
packing speed				8-12pcs/min			15m/min
voltage				220V/50HZ			380V/50HZ
rated power				2KW			24KW
sealing/shrink time				0.5-1.5S/0-0.6S
temperature				0-250'C
width/thickness of the film				MA*600mm/0.04-0.12mm
dimension				L2750*W1530*H1970mm			L3200*W950*H1580mm
gross weight				600kg			400kg
air pressure of working				4-8Mpa
shrink film				PE POF PVC			PE POF PVC

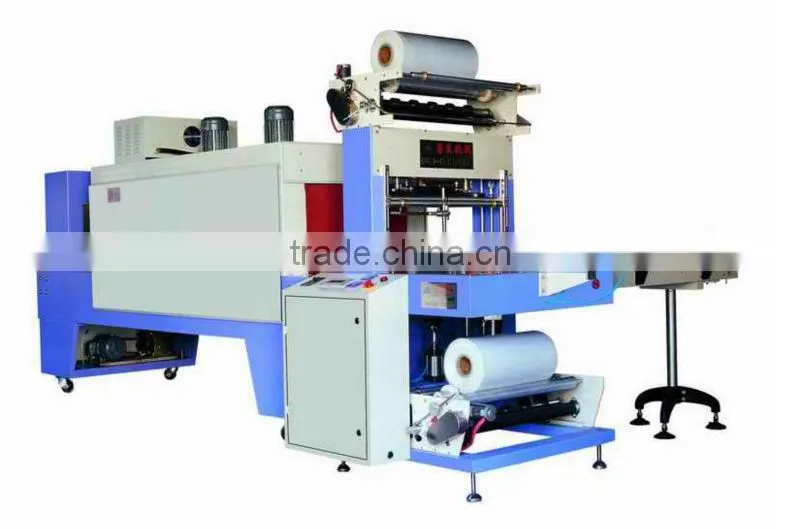

   Packaging for glass bottles machine pictures





Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment. They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.They have 300+ users in and out of China, and now 30% order from regular customer. The products scope as below: PET bottle filling machine,Glass bottle filling machine,Capping machine,Bottle washing machine,Water treatment,Oil filling machine/piston filler,Other bottle filling machine,Labeling machine, wrap packing machine,bottle unscrambler,and some drinks production line auxiliary.



   Before sales:
the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.

During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer?can inspect the machine but without travelling.

After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts
