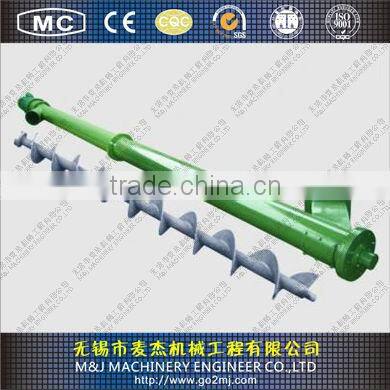

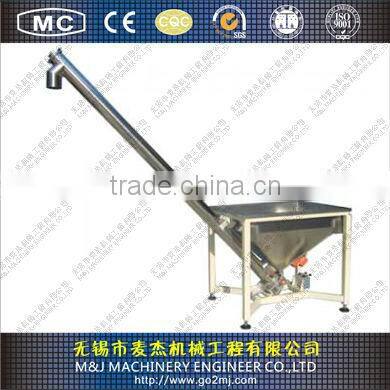

screw conveyors

Specifications

screw conveyors
Adjustable longth and output
CE&ISO9001

screw conveyor

Adjustable longth and output
CE&ISO9001



TDTG series elevator is used for perpendicular transporting the grain, powder and disperse materials, and also suitable for  the oil, animal feed and chemical industry, etc. The model's construction is tightly packed, established the machine which will make the machine dint the machine, machine the head, promote tube three all with the machine proceeding the valid connect, convenient for gearing adjust with support to maintain, spread to move dependable. First runner adoption packs gum craft, enlarges the coefficient of friction, and increases to spread and move the efficiency.



DTG Type Bucket Elevator Technical Data List 1

Model: 26/9, 26/13, 26/15, 36/18, 36/20, 36/23, 36/28, 41/23, 41/28, 41/32

Lifting Volume: (1) Granule: 5.42, 11.49, 15.06, 25.1, 27.89, 37.42, 51, 55.82, 67.8, 77.5 (m³/h)

             (2) Powder: 4.7, 9.96, 13.06, 21.73, 24.15, 32.4, 44.1, 48.17, 58.65, 67 (m³/h)

Top Wheel Rotating Speed: (1) Granule: 81(r/min), (2) Powder: 70(r/min)

Bucket Pace: 350, 300 (mm)

Lifting Height: 10—40 (m)

Motor: 2.2–-22(KW)



DTG Type Bucket Elevator Technical Data List 2

Model: 48/33, 48/38, 50/42, 60/32, 60/38, 60/42, 60/48

Lifting Volume: (1) Granule: 80.8, 99.7, 115, 133, 190.1, 210.1, 240.2 (m³/h)

             (2) Powder: 69.35, 85.57, 98.66, 114, 162.88, 180, 205.74 (m³/h)

Top Wheel Rotating Speed: (1) Granule: 70(r/min), (2) Powder: 60(r/min)

Bucket Pace: 300 (mm)

Lifting Height: 10—40 (m)

Motor: 2.2–-22(KW)
