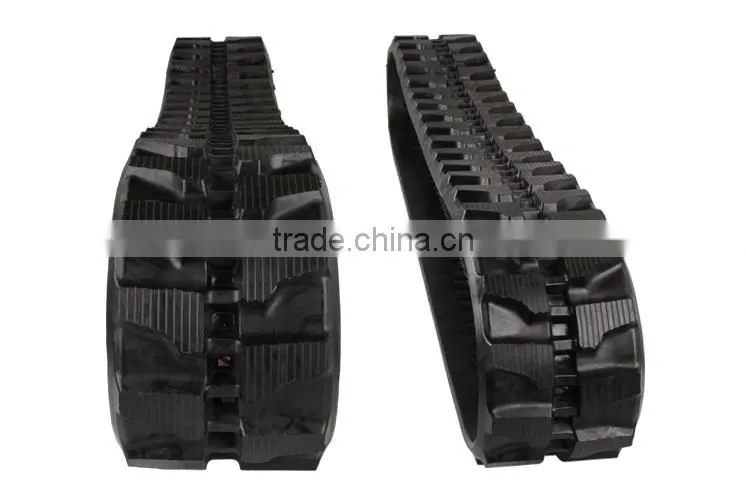

Supply high quality rubber track for mini excavator
- 3000 Piece / Pieces per Month
- Ningbo Shanghai
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Rubtrack | Model Number: | rubber track for mini excavator |
Packaging Details
rubber track for mini excavator + pallet/naked package
Product Description
rubber track for mini excavator . Continuous track, also called tank tread[1] or caterpillar track, is a system of vehicle propulsion in which a continuous band of treads is driven by two or more wheels. rubber track for mini excavator. This band is typically made of modular steel plates in the case of military vehicles, or rubber reinforced with steel wires in the case of lighter agricultural or construction vehicles. The large surface area of the tracks distributes the weight of the vehicle better than steel or rubber tyres on an equivalent vehicle, enabling a continuous tracked vehicle to traverse soft ground with less likelihood of becoming stuck due to sinking. The prominent treads of the metal plates are both hard-wearing and damage resistant, especially in comparison to rubber tyres. The aggressive treads of the tracks provide good traction in soft surfaces but can damage paved surfaces. Special tracks that incorporate rubber pads can be installed for use on paved surfaces to prevent the damage that can be caused by all-metal tracks. rubber track for mini excavator. Continuous tracks can be traced back as far as 1770 and today are commonly used on a variety of vehicles including bulldozers,excavators, tanks, and tractors, but can be found on any vehicle used in an application that can benefit from the added traction, low ground pressure and durability inherent in continuous track propulsion systems.In modern times, continuous track propulsion systems can be traced back to a crude continuous track system designed in the 1770s byRichard Lovell Edgeworth. Polish mathematician and inventor Józef Maria Hoene-Wroski conceived of the idea in the 1830s.[2] The British polymath Sir George Cayley patented a continuous track, which he called a "universal railway".[3] In 1837, a Russian inventorZagryazhsky designed a "carriage with mobile tracks" which he patented the same year, but due to a lack of funds and interest from manufacturers he was unable to build a working prototype, and his patent was voided in 1839. cat excavator track. Small tracks on a roadworks machine, note the rubber pads to reduce wear on the carriageway.Bandvagn 206 (Bv 206) is a tracked articulated, all-terrain carrier developed by H?gglunds (now part of BAE Systems Global Combat Systems) for the Swedish Army. It consists of two units, with all four tracks powered. It can carry up to 17 people (6 in the front compartment, 11 in the rear), and the trailer unit can be adapted for different applications (see Variants section). Development of the Bv 206 all-terrain articulated tracked carrier began in 1974. Three batches of trial vehicles were delivered between 1976 and 1978 and the first production examples were delivered to the Swedish Defense Administration in 1980. We always have a large Stock of Used / Refurbished H?GGLUND BV206 ATV's available. We stock and supply Used / Refurbished H?GGLUND BV206 All Terrain Vehicles to customers all over the world from tropical climates to the icy tundra of the polar regions. rubber track for mini excavator.Rubtrack Tracked Vehicle Systems Co., LTD specialized in development and manufactures a variety of rubber tracks, rubber track systems and related replacement parts, such as road wheels, drive sprocket, idler, track roller, bearing collar, wheel fork, etc. With over 10 years experience in supply and manufacture high quality replacement components for the H?GGLUND BV206 tracked drive system and other all-terrain vehicle transportation in snow, mud, swamps and other harsh terrains. Rubtrack's products are widely used in engineering machine, construction machine, transportation machine, landscape maintenance machine, garden machine for industrial, agricultural and defense vehicles. cat excavator track. Continuous track, also called tank tread[1] or Rubber Tracks caterpillar track, is a system of vehicle propulsion in which a continuous band of treads is driven by two or more wheels. rubber track for lawn mower. This band is typically made of modular steel plates in the case of military vehicles, or rubber reinforced with steel wires in the case of lighter agricultural or construction vehicles. The large surface area of the tracks distributes the weight of the vehicle better than steel or rubber tyres on an equivalent vehicle, enabling a continuous tracked vehicle to traverse soft ground with less likelihood of becoming stuck due to sinking. The prominent treads of the metal plates are both hard-wearing and damage resistant, especially in comparison to rubber tyres. The aggressive treads of the tracks provide good traction in soft surfaces but can damage paved surfaces.rubber track for mini excavator. Special tracks that incorporate rubber pads can be installed for use on paved surfaces to prevent the damage that can be caused by all-metal tracks. rubber track for lawn mower. Continuous tracks can be traced back as far as 1770 and today are commonly used on a variety of vehicles including bulldozers,excavators, tanks, and tractors, but can be found on any vehicle used in an application that can benefit from the added traction, low ground pressure and durability inherent in continuous track propulsion systems.In modern times, continuous track propulsion systems can be traced back to a crude continuous track system designed in the 1770s byRichard Lovell Edgeworth. Polish mathematician and inventor Józef Maria Hoene-Wroski conceived of the idea in the 1830s.[2] The British polymath Sir George Cayley patented a continuous track, which he called a "universal railway".[3] In 1837, rubber track for lawn mower, a Russian inventorZagryazhsky designed a "carriage with mobile tracks" which he patented the same year, but due to a lack of funds and interest from manufacturers he was unable to build a working prototype, and his patent was voided in 1839. rubber track for lawn mower. Small tracks on a roadworks machine, note the rubber pads to reduce wear on the carriageway.Bandvagn 206 (Bv 206) is a tracked articulated, all-terrain carrier developed by Hägglunds (now part of BAE Systems Global Combat Systems) for the Swedish Army. It consists of two units, with all four tracks powered. rubber track for mini excavator.It can carry up to 17 people (6 in the front compartment, 11 in the rear), and the trailer unit can be adapted for different applications (see Variants section). Development of the Bv 206 all-terrain articulated tracked carrier began in 1974. Three batches of trial vehicles were delivered between 1976 and 1978 and the first production examples were delivered to the Swedish Defense Administration in 1980. We always have a large Stock of Used / Refurbished HÄGGLUND BV206 ATV's available.rubber track for mini excavator. We stock and supply Used / Refurbished HÄGGLUND BV206 All Terrain Vehicles to customers all over the world from tropical climates to the icy tundra of the polar regions.rubber track for lawn mower.Rubtrack Tracked Vehicle Systems Co., LTD rubber track for mini excavator specialized in development and manufactures a variety of rubber tracks, rubber track systems and related replacement parts, such as road wheels, drive sprocket, idler, track roller, bearing collar, wheel fork, etc. With over 10 years experience in supply and manufacture high quality replacement components for the HÄGGLUND BV206 tracked drive system and other all-terrain vehicle transportation in snow, mud, swamps and other harsh terrains. Rubtrack's products are widely used in engineering machine, construction machine, transportation machine, landscape maintenance machine, garden machine for industrial, agricultural and defense vehicles.
Wholesale rubber track for mini excavator
rubber track for mini excavator
Product Name | Rubber Track for mini Excavator |
Warranty | 13 Months/1500 Operating Hours |
Type | Crawler |
How to Measure Rubber Tracks?
To check for the size of your existing rubber track you will need to measure followings.
1. Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)
2. Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you). This distance is known as the pitch of the track.
3. Count the total number of links (also called metal pieces or lugs) inside of the track.
The measurement of a track is Width x Pitch x Links.
Interchangeable Track Designs
Interchangeable guide type replacement tracks were originally designed for use on equipment with undercarriages designed for steel tracks but now most can interchange with rubber. Interchangeable type rubber tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 47, 48, 48.5, 60, 52.5, 53, 54, 54.5, 55, 55.5, 56, 71, 72, 72.5, 75.5, 76, 81, 83.5, 92, 96 millimeters.
Conventional Track Designs
Conventional guide type replacement tracks are designed for use on equipment with undercarriages designed for rubber tracks. Conventional type tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 60, 72, 84, 86, 87, 90, 100, 125 and 150 millimeters.

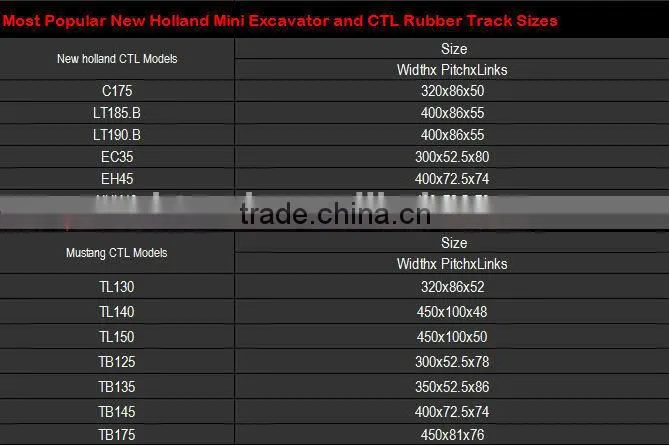

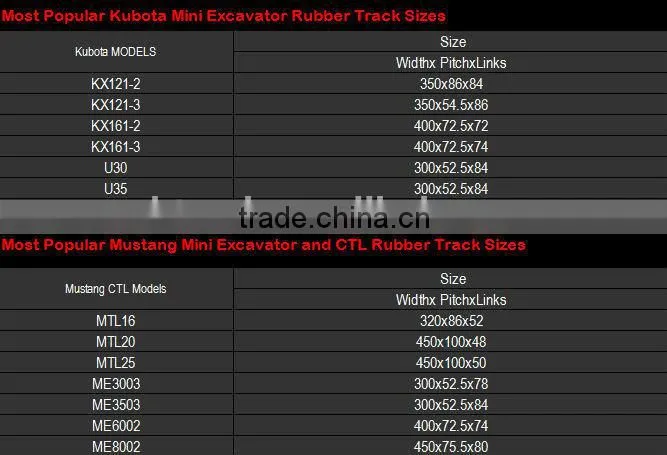

Rubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.
Track Patterns
Roller Type
Engineering track technical parameters
Agricultural technical parameters
Clip-on technical parameters
We're manufacturer!
Contact us to Get a Quote!
NO OBLIGATION!
Company Profile
![](http://res.goldsupplier.com/3/1_622_31787_320_240.jpg)
Rubtrack develops and manufactures high quality rubber tracks and conversion tracked systems for variety of vehicles, i.e.: all-terrain vehicle, excavators, bulldozers, agricultural machinery, garden tracked vehicles, landscape maintenance machines, etc. We also supply full line of replacement parts, including road wheels, drive sprocket, idler, track roller, bearing collar, wheel fork, etc.
With over 10 years experience in manufacturing high quality replacements for the HAGGLUND BV206 tracked driver system, our rubber tracks and parts fit original BV206 well, they have longer lifespan than most of rubber tracks in current market.
Rubtrack offers rubber tracked systems for variety of vehicles. Our products can be customized according to delivered specification and customer demand. We are open for cooperation. Our priority is quality, customer satisfaction, high level of service and competitive price.
BENEFITS to use our rubber tracks
-Lower ground pressure & minimizes ground and soil damage.
-Eliminates pavement & finished surface damage.
-Quieter than steel tracks.
-Reduced machine vibration.
-Improved traction in difficult working conditions.
-Reduced weight and improved machine efficiency.
Guarantee: Our products are warranted to be free from defects in materials and/or workmanship for a period of 24 months/2000 Hours of Operation, whichever occurs first, from the date of purchase.
