Wire manufacturer offer good quality copper cable with PVC insulated

Specifications

Wire manufacturer offer good quality copper cable with PVC insulated
1. Has passed CE, ISO, CCC, PCCC...Certificate

1.Has passed CE, ISO, CCC, PCCC...certificate
2.sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS


1.Product standard
GB/T12706-2002 (IEC60502-1983)

 Applications

The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.

Operating characteristics

Rated power-frequency voltage U₀/U: 3.6/6KV~26/35KV.

    Max. Permissible continuous operating temperature or conductor:90°C.

    Max. short-circuit temperature of conductor shall not exceed 250°C. (5s maximum duration)

    The ambient temperature under installation should not below 0°C.

    The bending radius of a single-core cable should not less than 20 times of the cable diameter.

    The bending radius of a three-core cable should not less than 15 times of the cable diameter.

Voltage designation

The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of U₀/U (Um) KV. Where:

U₀—The rated power-frequency voltage between conductor and earth or metallic screen, for which the cable designed;

U—The rated power-frequency voltage between conductors, for which the cable designed;

Um—The maximum value of the “highest system voltage” for which the equipment may be used.

2.specifications and names


Type		Designation
Copper conductor	Aluminium conductor

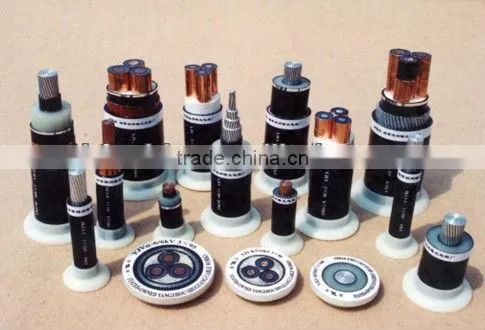

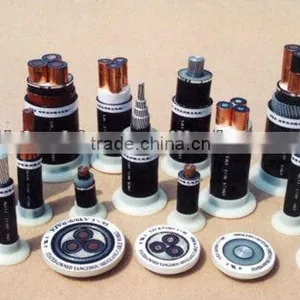

YJV	YJLV	XLPE insulated and PVC sheathed power cable
YJV22	YJLV22	XLPE insulated, steel tape armored and PVC sheathed power cable
YJV23	YJV23	XLPE insulated, steel tape armored and PE sheathed power cable.
YJV32	YJLV32	XLPE insulated, steel wire armored and PVC sheathed power cable.
YJV33	YJV33	XLPE insulated, steel wire armored and PE sheathed power cable.
