Hollow Core Fiberglass Rod

Hollow core fiberglass rod made of E glass reinforced the epoxy resin, which have a good electrical and mechanical property .The hollow core fiberglass rod can be used for multiple purposes

1.Standard: IEC, ANSI

2.Material: E glass and epoxy resin.

3.Process: Continuous pultrusion.

      1 - Continuous roll of reinforced fibers/woven fiber mat
      2 - Tension roller
      3 - Resin Impregnator
      4 - Resin soaked fiber
      5 - Die and heat source
      6 - Pull mechanism
      7 - Finished hardened fiber reinforced polymer.

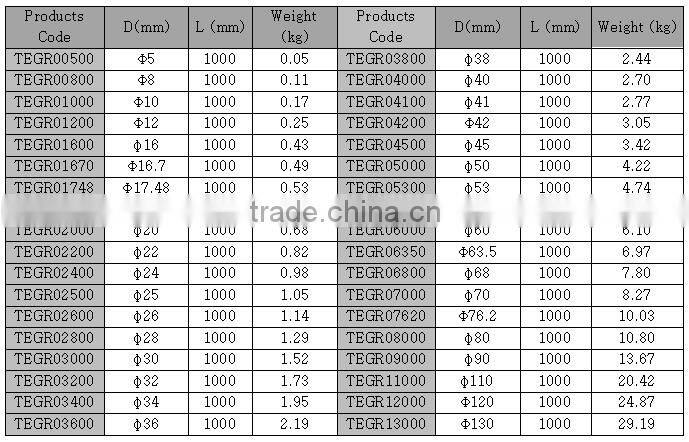

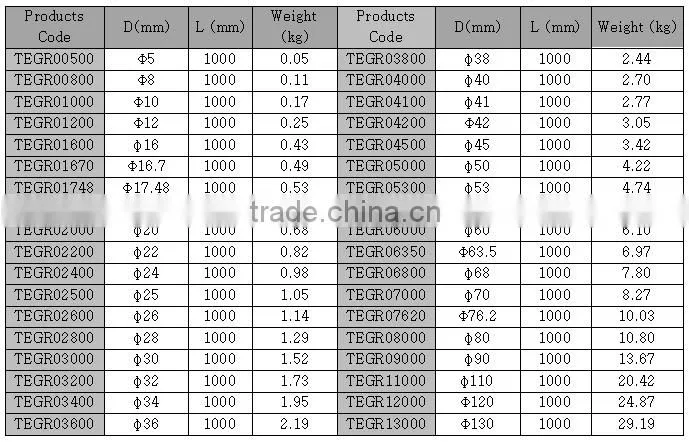

4.Technical Parameters

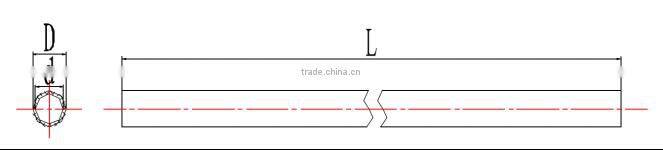

5.Out diameter D

Note:

  Color: light green or brown.

  Length: according to Customer requirement.

  We offer customized products,including the new size, New surface treatment,

  jointing the fitting, screw or mechanical.

6.Inner diameter d: according to Customer requirement.
