ISO11120 40feet OD559mm 10tubes CNG Tube Skid
- 100 Set / Sets per Month
- T/T L/C D/P D/A
-
ISO11120 40feet OD559mm 9tubes CNG Trailer
-
EN ISO TPED 229mm 50L 200bar High Pressure Seamless Steel Gas Cylinder
-
ISO9809 219mm 40L 150bar High Pressure Seamless Steel Gas Cylinder for Oxygen
-
OD559mm High Pressure Jumbo Cylinder
-
Good Quality High Pressure Seamless Steel Gas Cylinder with GB ISO EN TPED Standard
-
OD559mm Jumbo Cylinder for Gas Storage
Product Details
| Material: | Steel | Place of Origin: | China | Brand Name: | SINOCLEANSKY |
| Model Number: | SCS1025CT-40B |
Product Description

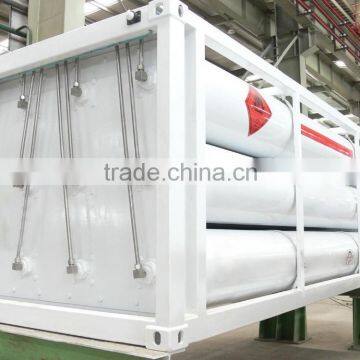

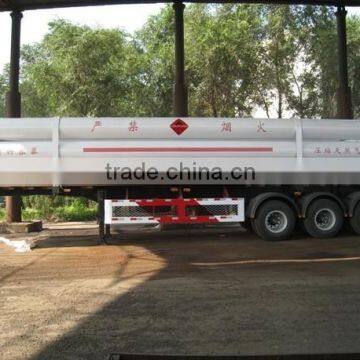

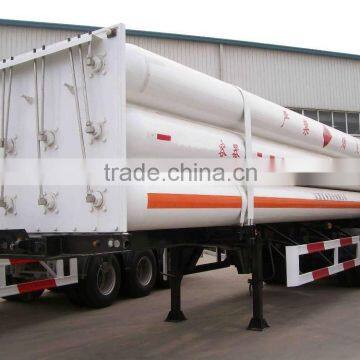

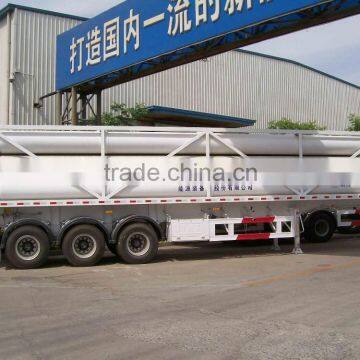

ISO11120 40feet OD559mm 10tubes CNG Tube Skid
Model No. | SCS0825CS-40F | SCS0925CT-40B | SCS1025CT-40B | SCS1225CS-40F | SCS0625CS-40F-711 |
Cylinder quantity | 8 | 9 | 10 | 12 | 6 |
Working pressure/MPa | 25 | 25 | 25 | 25 | 25 |
Cylinder size/mm | OD559*17.4*10975 | OD559*17.4*12190 | OD559*17.4*10975 | OD559*17.4*10975 | OD711*22.1*10975 |
Steel type | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo |
Working temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
Cylinder weight/KG | 2825 | 3100 | 2825 | 2825 | 4460 |
Equipment weight /KG | 25860 | 35500 | 33920 | 37260 | 31000 |
Water volume/M3 | 17.8 | 23.22 | 23.3 | 27 | 22.2 |
Filling gas volume /NM3 | 5300 | 6900 | 7000 | 8030 | 6600 |
Loading weight/KG | 3800 | 4965 | 5019 | 5760 | 4736 |
Total weight/KG | 29660 | 40455 | 38939 | 43020 | 35735 |
Skid/Trailer dimension | 12192*2438*1400 | 12960*2490*3300 | 12192*2438*3350 | 12192*2438*2010 | 12192*2438*1775 |
| (skid) | (trailer) | (trailer) | (skid) | (skid) |
Model No. | SCS0925CS-10F | SCS0825CS-20F | SCS1225CS-20F | SCS1625CS-20F | SCS0925CS-20F-711 |
Cylinder quantity | 9 | 8 | 12 | 16 | 9 |
Working pressure/MPa | 25 | 25 | 25 | 25 | 25 |
Cylinder size/mm | OD559*17.4*2600 | OD559*17.4*5400 | OD559*17.4*5400 | OD559*17.4*5400 | OD711*22.1*5400 |
Steel type | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo | 4130X/30CrMo |
Working temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ |
Cylinder weight/KG | 670 | 1390 | 1390 | 1390 | 2190 |
Equipment weight /KG | 9107 | 14080 | 19700 | 26200 | 23020 |
Water volume/M3 | 4.1 | 8.24 | 12.36 | 16.8 | 15.3 |
Filling gas volume /NM3 | 1230 | 2500 | 3705 | 4950 | 4550 |
Loading weight/KG | 875 | 1770 | 2654 | 3540 | 3260 |
Total weight/KG | 9982 | 15850 | 22354 | 29740 | 26280 |
Skid/Trailer dimension | 3048*1860*2035 | 6058*2438*1400 | 6058*2438*2010 | 6058*2438*2620 | 6058*2438*2485 |
| (skid) | (skid) | (skid) | (skid) | (skid) |
Ideal Solution for CNG Storage and Transportation---CNG Jumbo Cylinder Skid/Trailer
Produce as per ISO11120, ASME and approved by BV inspection report.
Application:
Features of SinoCleansky high-pressure jumbo gas cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
