test Vibrator with perforated plate screen

Specifications

1.high efficiency in filtering, screening.
2.used for powder,particle,liquid.
3.no blockage of mesh
4.aotumatic operation

A professional manufacturer of 27 years of experience

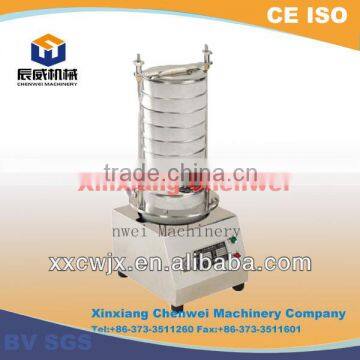

Brief Introduction- Food Powder Test Sieve machine

The standard Testing sieve is made for the purpose of particles size distribution measurement, the determination of impurity content or solid content in liquid, which are extensively used in scientific laboratories and quality inspection departments.



Features- Food Powder Test Sieve machine

•High efficiency and high precision

•Tight Structure and low noise

•Corrosion resistance

•Easy to clean

•Long using life

•Easy to use and transport

•Wide application



Operation Instructions- Food Powder Test Sieve machine

We adopt well-qualified new type of energy generator generating multi-dimensions high frequent vibration to ensure high-efficient sieving and determination. According to different materials features, customers can set different working time by adjusting electric time controller so that the analysis errors could be reduced to minimum and therefore guarantee analysis results unanimous.



Application- Food Powder Test Sieve machine

It applies in the accurate analysis of granularity structures of particle and power materials, and the testing analysis of solid content in liquid for laboratories, quality control rooms and scientific research departments. The testing sieve is widely used in testing analysis of chemical, pharmaceutical, food, building materials, powder metallurgy, and material in the processing process of the sewage and waste water from environmental protection industry.



Technical Parameter- Food Powder Test Sieve machine

Number	Name	Unit	Data
1	Layers	Layer	1-8
2	Diameter	mm	200
3	Granularity	mm	0.038-3
4	Noise	dB	50
5	Feeding Capacity(once)	G	200
6	Amplitude	mm	5
7	Voltage	v	220
8	Speed	R/min	1420
9	Power	Kw	0.125
10	Overall Dimension	mm	360*300*736
11	Weight	Kg	45

Product picture







About us



FAQ



Q:What factors I need to get a quotation?



A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.



Q:What is the real delivery time of your factory?



A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.



Q: How do you ensure the quality of your products?



A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.



Q: How do your after-sale service work if the product got damaged?



A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)



Q: How could I trust your promise?



A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;



secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;



Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.



As the professional manufacturer of vibrating & transporting equipments since 1987, we are pleased to offer you the best product in a competitive price.

Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
