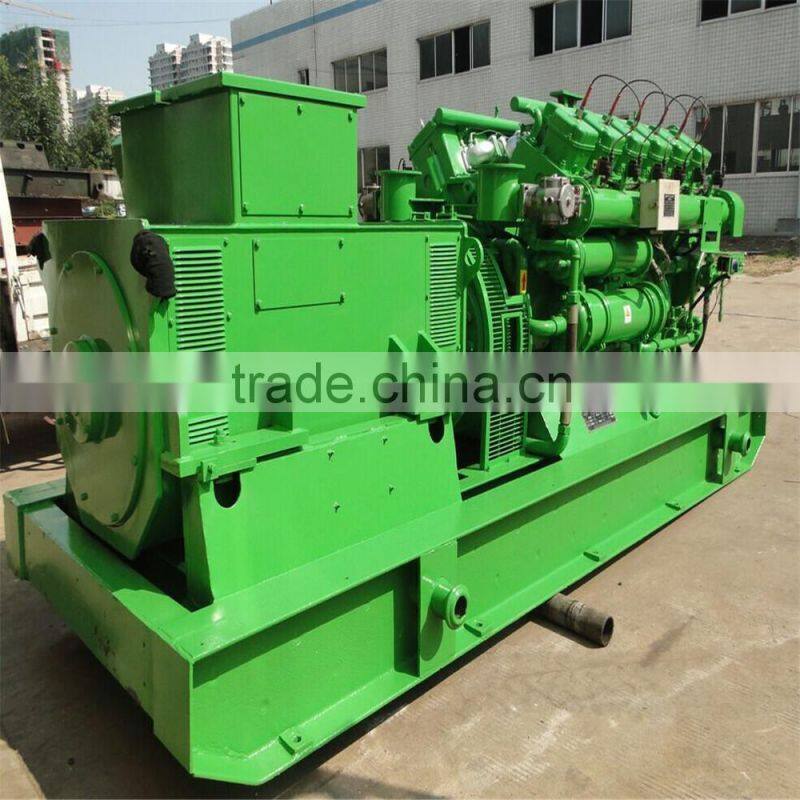

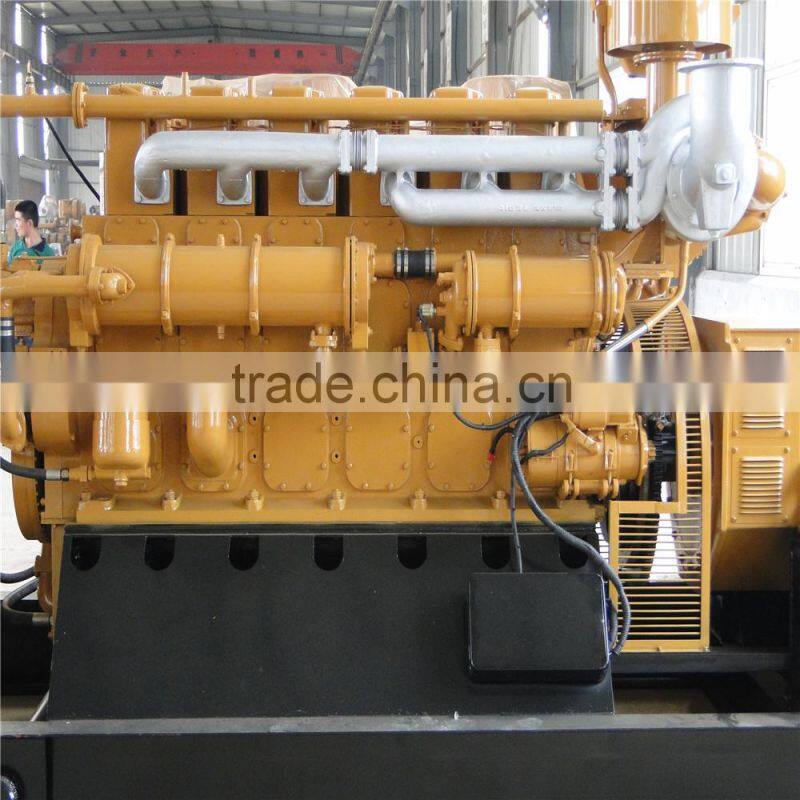

2016 hot sell 500KW biomass gas generator set for home electric plant gasifier

Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.

With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

a. Biomass exists in various forms, like wood, crop( straws of rice, wheat, bean, cotton, husk,etc), weeds, algae, etc, in the plants. Others like animal wastes spoil and the organic exist in waste water and rubbish etc.

Now there are mainly three ways to generate power with biomass: gasify generating, burning generating, CHP technology. In China, we are rich in the resources of biomass, but lack in the power supply. So our country can supply a vast stage to show the advantage and economy to generate power with biomass.

Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

 b. Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.

Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

 Main composition of biomass gas:

After being gasified, the basis of gas is CO(20%), H₂(9%), CH₄(12%),CO₂(12%), N₂(52%), The lower heating value is 5-6 MJ/Nm³.

Efficiency of gasification:1 kg dried material can generate 2 Nm³ gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

Requirements for biomass gas:

Within 1m from pressure regulating value of gas intake;

Gas temperature<40℃

The ratio of CH₄ in natural gas >70%;

Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;

H₂S≤200mg/Nm³;

NH3≤20mg/Nm³;

Tar content≤20mg/ Nm³;

Moisture content ≤40g/Nm³;

Impurity particle size ≤5µm, impurity content ≤30 mg/Nm³

Heat value≥4.2MJ/Nm³

Product Description:

We are professional manufacturer of gas and diesel generator set for alomost 20 years, our products mainly include natural gas generator, biogas generator, biomass generator, coal gas generator, syngas generator, coal-bed gas generator, coke oven gas generator, diesel generator etc.

Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.

Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.

Pressure charging system:Pulse Mixed-flow  supercharger, compression  ration is  1:8,meet engine's  requirement   for gas-flow rate.

Speed regulating system:EGS gas controller of American WOODWARD Company.

scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.

Main technical features for biomass generator:

Core spare parts:

Ignition system:  American ALTRONIC, including: magneto and high-tension coil.

Controller: Comap, Deepsea, Smartgen

Starting system: DC24V electric motor.

Mixer: IMPCO

Sparking plug: STITT

Genset worksite requirements:

The worksite needs to meet following basic requirements:

 a)  Ambient temperature between -40℃~40℃;

 b)  Relative humidity less than 95%(35℃);

 c)  Site elevation not higher than 2500m;

 d)  For outdoor installation, simple rain shelter is required.

 Company Information

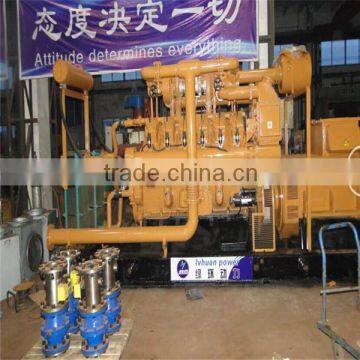

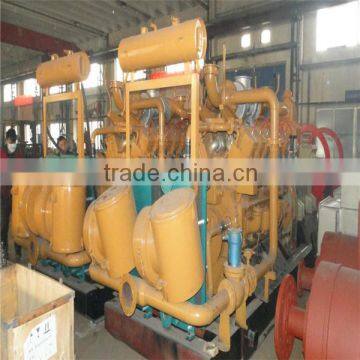

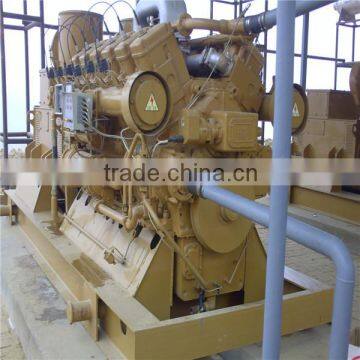

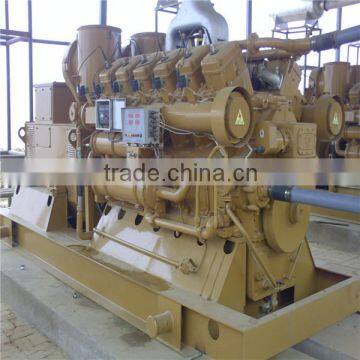

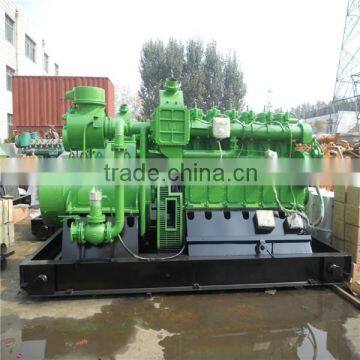

pitures:

FAQ:

1.How to choose the right model?

   A: It depends on continuous output power, Voltage, Frequency and fuel type.  Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.

Me and our engineers are always available at your service.

 2.What is the oil consumption and capacity per hour?

  A: 1.0-1.63g of lubricant oil consumption per hour.

1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h

3.What is the overhaul?

   A: About 30000 working hours. A week is enough to finish.  We offer manual for weekly, monthly and overhaul maintenance.

4. What is the warranty?

    A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare      parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.

5. How is the after sale service and maintenance?

A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.

6. What products we offer?

Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.

Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.

Our Services :

1.Pre-sale service:

A.Our engineers are available for onsite prospect before installation free to charge.

B. Foundation drawing and detailed Dimension free form us.

2.In-sale service:

A. Onsite overall guide installation,operation and maintenance training .

B. Assistance and instruction of trial running.

3.After-sale service:

A.Our every engineers are in charge of different area,we will response periodically and support you

technical service free of charge,

B.For the quality problem, we will service for you free of charge during the guarantee period.

C.One year guarantee period and lifetime service.

D.we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain

4.Spare parts service:

A.All spares parts on our gensets supplied by us.

B. Free spare parts together with genset when shipping.
