fiber optic connector/ audio jack connector DQT(R)-014

Specifications

1.fiber optic connector/ audio jack connector DQT(R)-014
2.Short lead time best price
3.Free samples
4.ROHS SGS ISO9001/14001

  fiber optic connector/ audio jack connector DQT(R)-014

 1. Product Specifications

 Optical Fiber Transmitting Module Electro-Optical Characteristics

Parameter	Symbol	Conditions	MIN.	TYP.	MAX.	Unit
Peak emission wavelength	λp		…	660		nm
Optical power output coupling with fiber	Pc	Refer to Fig.1	-21	-18	-15	dBm
Dissipation current	Icc	Refer to Fig .2	3	…	7	mA
High level inprt voltage	ViH	Refer to Fig .2	2.0	…	Vcc	V
Low level input voltage	ViL	Refer to Fig .2	…	…	0.8	V
Low High delay time	tpLH	Refer to Fig .3	…	…	100	ns
High Low delay time	tpLH	Refer to Fig .3	…	…	100	ns
Pulse width distortion	tw	Refer to Fig .3	-15	…	+15	ns
Jitter	tj	Refer to Fig .3	…	1	+15	ns

 Optical Fiber  Receiving Module Electro-Optical Characteristics

Parameter	Symbol	Conditions	MIN.	TYP.	MAX.	Unit
Peak emission             wavelength	λp		…	660		nm
Receiver input optical power level	Pc	Refer to Fig.3	-24	…	-13.5	dBm
Dissipation current	Icc	Refer to Fig .2	3	…	7	mA
High level input voltage	VoH	Refer to Fig .1	2.1	…	…	V
Low level input voltage	VoL	Refer to Fig .1	…	0.2	0.4	V
Rise time	tr	Refer to Fig .1	…	8	20	ns
Fall time	tr	Refer to Fig .1	…	8	20	ns
Low High delay time	tpLH	Refer to Fig .1	…	…	100	ns
High Low delay time	tpLH	Refer to Fig .1	…	…	100	ns
Pulse width distortion	tw	Refer to Fig .1	-15	…	+15	ns
Jitter	tj	Refer to Fig .1	…	…	15	ns

 Mechanical Characteristics(Ta=25°C)

Parameter	Symbol	Conditions	MIN.	TYP.	MAX.	Unit
Insertion and Withdrawal Force	Fp	*1	3.9	…	40	N

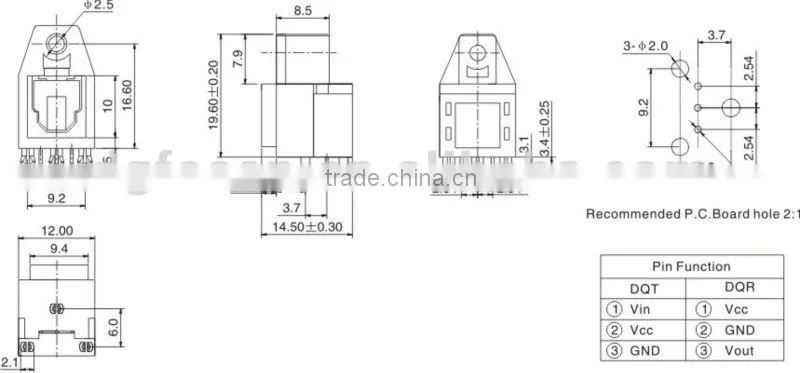

 2. Diagram

 3. Applications

 They can be used to operate computer ancillary equipments, TV, audio equipments,  all kinds of small automatization equipments and instruments etc.
