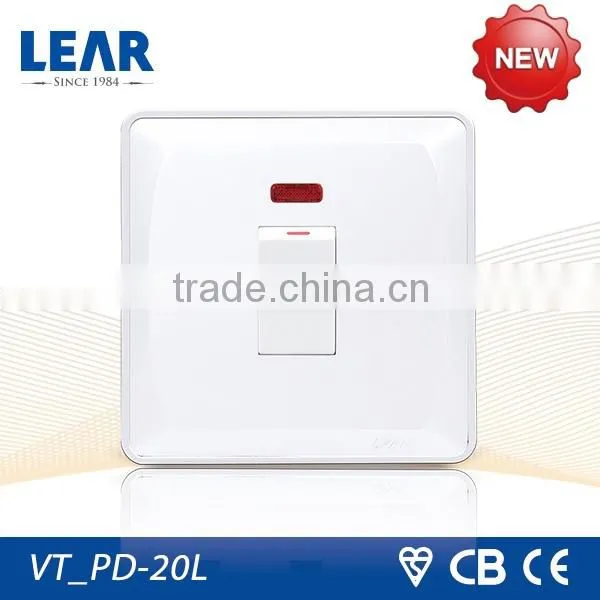

New design vista range electric heater switch
- 3000 Piece / Pieces per Month
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Brand Name | LEAR | Model Number | VT_PD-20L | |
| Size | 86mm*86mm | Max. Current | 20AX | |
| Max. Voltage | 250V AC | Mechanical Life | 40000 on-off times |
Product Description
Characteristics
Vista series switch socket 5.4MM Ultra-Slim Profile with Streamline Appearance, Various Colors Available For Your Choice. 1,Allow Clients Choose To Combine Different Functions and A Custom Combination Of Modules 2,High Quality Silver Oxide Material Used In Contact Points 3,Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity 4,High Strength PC Panel Make Switch And Socket To Be High Temperature Resistant, Abrasion Resistant, And Corrosion Resistant |
Main | |
Range of product | Vista series |
| Product code | VT_PD-20L |
| Product name | 20A 1 gang 2 pole electric heater switch |
| Product or component type | 20A |
| Device presentation | 250V~ |
| Complementary | |
| Switch function | 1-way,2 pole with earth |
| Actuator | Rocker |
| Pilot light | Neon indicator lamp |
| Number of gangs | 1 gang |
| Colour tint | White ,champagne or silver color |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 20 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
Terminal identifier
| COM L1 N1 L2 N2 |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 4 mm² |
| Width | 86mm |
| Height | 86mm |
| Material | |
| Front-plate | Polycarbonate |
| Back-frame | Polycarbonate |
| Back-base | Polycarbonate |
| Contacts material | Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
Standards
| IEC 60669-1 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic | Indoor use |
| Contractual warranty | |
| Period | 12 YEARS |
