Home > Products > Antistatic Control > Hako 498 ESD wrist strap monitor /antistatic wrist strap tester

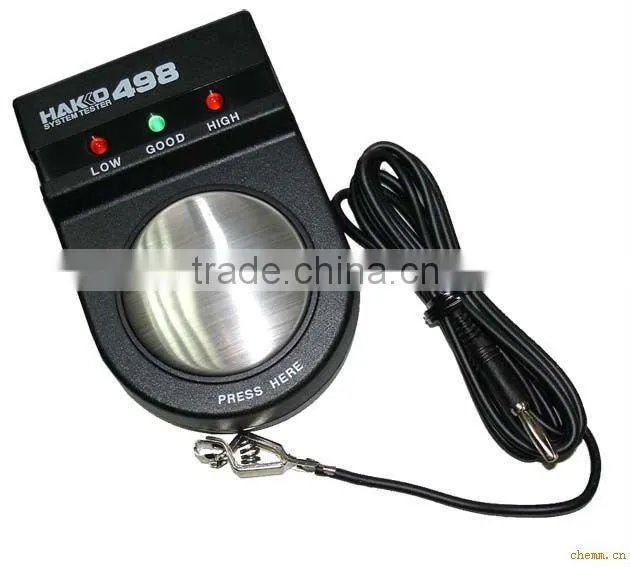

Hako 498 ESD wrist strap monitor /antistatic wrist strap tester
- 10000 Piece / Pieces per Month
- shenzhen
- Credit Card PayPal
-
Super 518-2 ESD antistatic Wrist Strap On-line Monitor
-
SL-033 ESD Wrist and Foot Strap Tester/ESD wrist strap monitor
-
ESD wrist strap monitor /antistatic wrist strap tester /on-line meter
-
SL-035 ESD Wrist strap tester
-
high reliable and quality of ESD Wrist Strap tester /wrist strap
-
high reliable and long lasting ESD wrist strap tester/wrist strap monitor
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HAKKO | Model Number: | HAKKO 498 |
| Power: | Electronic | Usage: | Other, Anti-static Wrist Strap Tester |
Product Description

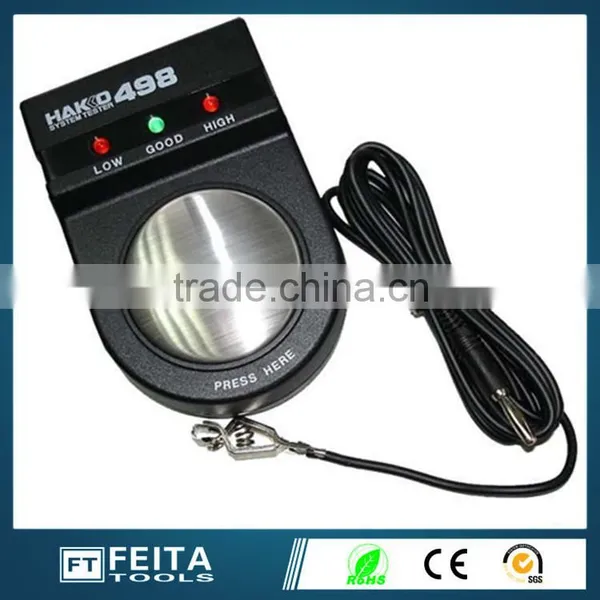

Model: 498
For the static strap function, HAKKO498 Wrist Strap Tester can quickly and easily check the following: 1. Test static strap and ground wire connection.
2. Test the impedance between skin and Static strap.
3. Test the connection during anti-static access panels, cushion for connecting ground.
Features:
1. quickly and easily check ground systems at any place;
2. avoid static electricity to damage the product;
3. Ensure staff safety.
Specifications:
Instruction | Impedance calibration | Buzzer |
Low(red) | R<800KΩ | OFF |
Good(green) | 800KΩ≤R≤9MΩ | ON |
High(red) | R>9MΩ | OFF |
Outside size 80(W)×40(H) ×117(D)mm | ||
Power source:9V battery | ||
The length of grounding wire:2.5m | ||
Operation:
1. Insert the banana plug on the end of the static strap ground cord into the jack located on the front of the wrist strap tester.
2. The wearer of the anti-static wrist strap then pushes the metal pushbutton on the wrist strap tester.
3. A properly operating wrist strap will give an "OK" LED indication on the anti-static wrist strap tester. If either RED "FAIL LOW" or YELLOW "FAIL HIGH" LED's light, and the audible indicator sounds, then the wrist strap should be discarded and replaced with a new one.
Note: After about 50,000 cycles of operation, when the green "GOOD" LED will light up, but did not issue a sound, Replace the battery.
1. Any Inquires will be replied within 24 hours.
2. Professional manufacturer,Welcome to for more models and products
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
Q: How can I make an order?
A: Send us the inquiry or chat with us if you have any questions before order, we will reply you in details ASAP, then, we will issue the PI according to your specific requirement. The goods will be sent out to you upon getting full payment.
Q: Can I place a sample order?
A: Of course, sample order is welcome for checking product functionality and quality. There is no MOQ requirement for sample order.
Q: Do you have any MOQ limit?
A: Yes, the MOQ of general order is 1 set.
Q: Is shipping for free?
A: No, the shipment fee needs to be paid by buyers, and it is determined by weight and shipment method.
Q: Which payments are acceptable?
A: T/T, Paypal and Western Union, there is an extra 4.4% handling charge if Paypal choosen.
Q: Which shipping methods are available?
A: DHL, FEDEX, TNT, UPS, EMS, AIR (door to door).
Q: How about the lead time and delivery time of my order?
A: Lead time is usually 2-8 working days depending on the order qty; delivery time is normally 3-5 working days, it needs extra 2-3 working days for remote areas.
