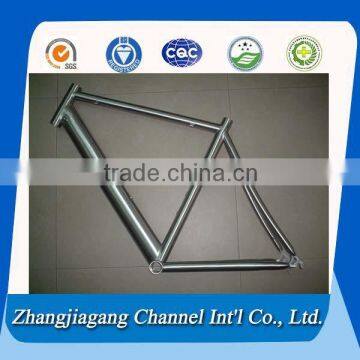

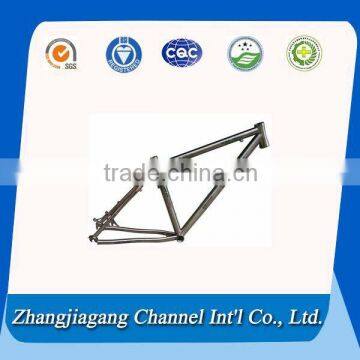

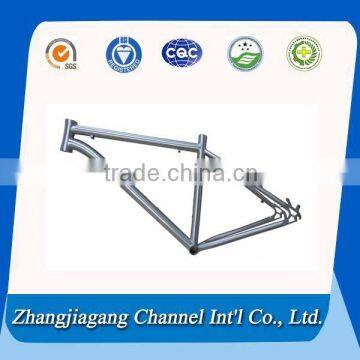

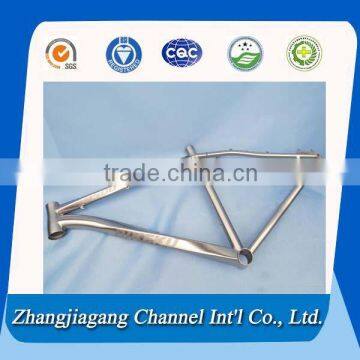

Buy titanium bicycle pipes alibaba
USD $15 - $40
/ Kilogram
50 Kilograms(Min.Order)
- 10000 Kilogram / Kilograms per Month
- Shanghai for titanium tubes
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Channel | Model Number: | titanium tube |
| Material: | titanium | Outer Diameter: | 3-314mm | Length: | ≤9000mm |
| Standard: | ASTM | Application: | Industrial,medical,condensers,etc | Technique: | Seamless |
| Grade: | titanium, Pure titanium and titanium alloy gr1,gr2,gr5,gr9,gr12 | Wall Thickness: | 0.2-30mm | Inside Diameter: | 2.5~150mm |
Product Description
Product Description
Buy titanium bicycle pipes alibaba
Titanium mian feature:
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Product detail:
Product Name | Titanium tube/tubes/pipe/pipes/tubing |
Standard | ASTM B348, ASTM B381, ASTM F67, ASTM F136, ASTM F1295, ASTM F1713, ASME, AMS |
Material | Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, etc |
| Length <6000mm |
Size(mm) | Diameter 8-200 |
Section shape | Round/ Square |
Certification | ISO9001, SGS, |
Surface Treatment | pickling, polished, bright finish etc. |
Feature | 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
Advantages | 1. First-class technonlgy and the rigorous work attitude 2. We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need. 3. Low purchasing cost for repetitive orders in the long-run as our performance/price ratio is higher. 4. Never be backorder. 5. Excellent customer service policies on repair/exchange/refund. 6. Serving both domestic and overseas customers with various requirements for 22 years. |
Chemical Propeties:
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | Bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | Bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0/.6~0.9 | Bal |
Mechanical properities:
Grade | Tensile Strength(Min)
| Yield Strength(Min) | Elongation in 4D, Min, % | Reduction of area, Min, % | ||
| Kis | Mpa | Kis | Mpa |
|
|
Gr1 | 35 | 240 | 25 | 170 | 24 | 30 |
Gr2 | 50 | 345 | 40 | 275 | 20 | 30 |
Gr3 | 72.5 | 500 | 55 | 380 | 18 | 30 |
Gr4 | 85 | 586 | 70 | 483 | 15 | 25 |
Gr5 | 130 | 895 | 120 | 828 | 10 | 25 |
Gr7 | 50 | 345 | 40 | 275 | 20 | 30 |
Gr9 | 90 | 620 | 70 | 483 | 12 | 25 |
Gr11 | 35 | 240 | 25 | 170 | 24 | 30 |
Gr12 | 70 | 483 | 50 | 345 | 18 | 25 |
Production Flow
Packaging & Shipping
FAQ
•Q1. What is your Payment Terms?
•
•A1. We usually suggest T/T(Prepaid & Balanced),L/C,Paypal,Escrow,but other ways will be no problem,like ,Western Union, Money Gram. All will be talked with you before your order.
• Q2. What is the MOQ of your product?
•
•A2. Usually our MOQ is 20KG,But we can sell as per your quantity(even less than 20KG) if they are in ready stock.Anyway,just contact us even it is a very small order.Because all can be talked openly.
•
• Q3. Do you offer free sample?
•
•A3. Usually our sample is free but we wish our customer to pay the freight.When you put us the batch order,we will return the sample freight to you.
•
• Q4. What is your Supply Ability?
•
•A4. 30 tons per month is no problem now.
If you can not find the product you need, See here!
please write the following information, We will send you the product details and quotation.
1.Material: Titanium, Stainless steel,Aluminium etc.
2.Form: plate, sheet, bar, rod, tube,wire,etc.
3.Dimension: thickness, width, length or diameter.
4. Standards: ASTM, ASME, AMS, BS, BT, GOST, etc.
5.If you can supply the quantity and using, it's better for supplying quotation
