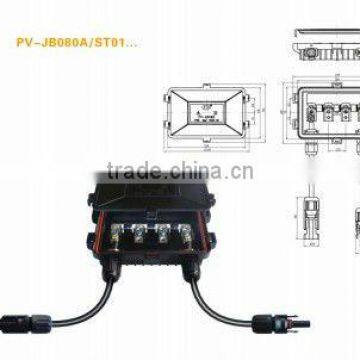

Solar junction box with mc4 connector IP65
- 20000 Set / Sets per Month
- ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TOP | |
| Model Number | PV-JB002/ST01 | Type | Other, connector |
Product Description
Specifications
Solar Connector ,Due to highly robustness,UV-resistance,the touch protection a high grade connection is guaranteed for manySolar Connector ,Due to highly robustness,UV-resistance,the touch protection a high grade connection is guaranteed for many years
Rated voltage 1000 V
Rated current 16A
Contact resistance ≤5mΩ
Dia of pin or socket 3mm /4mm
Protection degree(mated,junction box closed/unmated) IP65/IP2X
Operating temperature -40 C to +85C
Insulation material PPO
Contact material Copper,silver plated
The junction box's inner shoulder be filled with glue under working
