lamp terminal block
Negotiable
/ Piece
500 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shanghai&Ningbo&Shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | DD | Model Number: | TB1-X |
| Type: | Screw Terminal |
Product Description
Specifications
lamp terminal blockU / H / F type, Wire range: 2.5mm2- 40mm2
250V - 450V / 3A - 100A
-40 to 110C

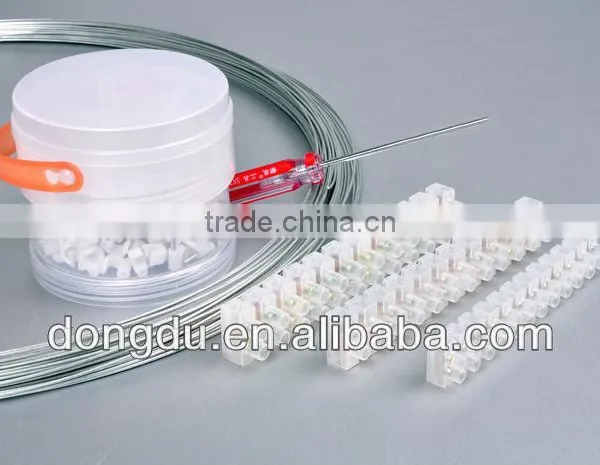

lamp terminal block
1.Product features
Material:Plastic have PA, PP, PE.Brass insert and Steel screw
Type:U / H / F type
Voltage: 250- 400V
Current : 3A - 100A
Cable wire : 2.5mm2 - 40mm2
Working Temperature : - 40°C to 110°C
Color: Natural color,optional
CE ROHS certificated
2.Product data sheet
| Item NO. | Wire Range | Rated Current | Rated Voltage | Length | Width | High | Brass Hole Diameter | Plastic Pole Width | Screw size | Material |
| DDTB1-01 | 2.5-4.0MM2 | 3A | 380V | 92.3 | 16.8 | 12.3 | 3 | 7.8 | M2.5 x 4 | PE PP PA |
| DDTB1-02 | 4.0-6.0MM2 | 6A | 380V | 115.4 | 18.8 | 15.4 | 3.3 | 9.6 | M3.0 x 5 | |
| DDTB1-03 | 6.0-10.0MM2 | 10A | 380V | 129.3 | 20.7 | 16.5 | 4.2 | 11 | M3.0 x 6 | |
| DDTB1-04 | 10-12MM2 | 15A | 380V | 137.8 | 22.5 | 18.6 | 4.5 | 11.7 | M3.5 x 7 | |
| DDTB1-05 | 12-14MM2 | 20A | 380V | 138 | 22.5 | 19 | 4.7 | 12 | M4.0 x 6.5 | |
| DDTB1-06 | 16MM2 | 30A | 380V | 164 | 25.5 | 20 | 5.5 | 13.7 | M4.0 x 7 | |
| DDTB1-07 | 25MM2 | 60A | 380V | 186 | 29.2 | 25.3 | 6.6 | 15.7 | M4.0 x 9 | |
| DDTB1-08 | 35MM2 | 80A | 400V | 226.8 | 36.1 | 29 | 7.8 | 19.2 | M5.0 x 12 | |
| DDTB1-09 | 40MM2 | 100A | 450V | 254.6 | 45 | 34.7 | 9 | 20.5 | M6.0 x 12 |
3.Packing
4.Certification
