Help CenterSFC75-TC 75KW/100HP 13 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Variable Speed Drive
Related Products
-
SFC75-TD 75KW/100HP 8 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Speed Screws AssemblyNegotiableMOQ: 1 Set -
SF110-TC 110KW/150HP 13 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Variable Frequency InverterUS$ 2,000 - 100,000MOQ: 1 Set
-
SF110-TD 110KW/150HP 8 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Medium Voltage Variable Frequency DriveUS$ 2,000 - 100,000MOQ: 1 Set
-
SFG37-TB 37KW/50HP 10 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor ac Variable Frequency DriveUS$ 8,663 - 9,443MOQ: 1 Set
-
SFG37-TC 37KW/50HP 13 BAR AUGUST AC Variable Frequency Air Cooled Screw Air Compressor ac Variable Frequency DriveUS$ 8,663 - 9,663MOQ: 1 Set

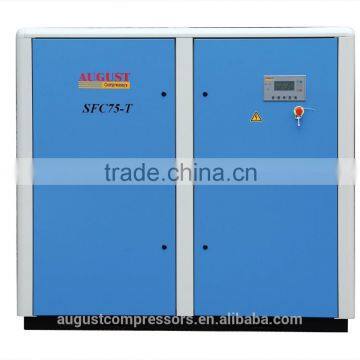

SFC75-TC AUGUST VSD AIR COOLED SCREW AIR COMPRESSOR
- Air Cooled
- Twin Screw Single Stage Air End – AUGUST- Brand
- 5 Year Rotor Warranty
- 45,000-50,000 Working Hours Engineered Lifetime
- SKF Explorer Bearings (mainly)
- Energy Saving micro control system, fully automated operation
- Easy Maintenance
- Low-noise operation, closed cabinet structure, Noise Reducing Dumping Mats made of fire-retardant materials
- Direct Coupling Drive SFG37-SFA45 Displayed drawing is for reference only and might be different in advanced model. Please ask for detailed drawing if and when required.
- Efficient, safe and reliable fully enclosed motor drive (IP54, F class / IP55 optional)
- Energy Saving Air end 5:6 Helix
- Networkable Link between Compressors / Grouping with on-line, remote monitoring and DSC network functions
- High precision heavy duty intake filter 1μm, 99.9% efficiency
- Optimized Oil Separation System residual oil rate 1-3mg/m3
- Low Speed Air end Operation
- Automatic Control of Functions / Maintenance Indicator
- English language display, easy operation, running status at a glance, running real-time monitoring data
- Pressure and Temperature Control and Protection
- Start Up Protection ( Current Spike Free)
- English Language Display / English Language Manual
| Model | SFC75-TA | SFC75T-B | SFC75T-C | SFC75T-D |
| Free air delivery(m3/min) | 13.50 | 11.50 | 9.50 | 12.80 |
| cfm | 477 | 406 | 335 | 452 |
| l/s | 225 | 192 | 158 | 213 |
| Discharge pressure(MPa) | 0.70 | 1.00 | 1.30 | 0.80 |
| bar | 7.00 | 10.00 | 13.00 | 8.00 |
| psig | 101.50 | 145.00 | 188.50 | 116.00 |
| Ambient temperature(℃) | -5~+40 | |||
| Cooling method | Air cooling | |||
| Air supply temperature (℃) | Less Than Ambient temperature +15℃ | |||
| Drive method | Direct Coupling Drive | |||
| Start method | Star delta start | |||
| Noise dB(A)±3 | 76 | |||
| Power (kW/HP) | 75/100 | |||
| Overall dimension (mm) | 2000×1200×1798 | |||
| Weight (kg) | 2100.00 | |||
| Air supply out (Inch) | 2" | |||
The manufacturing company of AUGUST brand Screw Air Compressor is Ningbo Xinda Screw Compressor Co., Ltd. which is the key enterprise of China’s screw air compressor industry and has an independent powerful research and development team and international first-class processing and testing equipment for screw air compressor. AUGUST is specialized in manufacturing S series artificial intelligent controlled, environment-friendly and low maintenance screw air compressor with integrated high efficiency, energy saving and noise reduction elements. The main product reaches the standard of national Class 2 high efficiency. Heat recovery technology and VSD Inverter application provide a high efficiency of the machines.
We combine the advanced German technologies with the latest research achievement and rely on the core technology we own, to establish our leading position in the industry and provide advanced solution to compressed air system for customers in and outside China.
As an outstanding representative of Chinese self-owned brand, AUGUST air compressor is not only the best choice in domestic market, but also meets the European standard, selling well overseas and enjoying high reputation among global customers.
WARRANTY
5 YEAR ROTOR WARRANTY
18 MONTHS SPARE PARTS WARRANTY
