20v3.25a Notebook Adapter of SYI Group
- 1500 Ton / Tons per Month
- Xingang
- T/T Credit Card
Product Details
| Material: | Iron | Technics: | Casting | Type: | Flange |
| Place of Origin: | Shanxi, China | Model Number: | Coupling-019 | Brand Name: | SYI |
| Connection: | Flange | Shape: | Reducing | Head Code: | Other, round |
Packaging Details
Standard export wooden case, wooden pallets or 100% as per your requirements
Product Description
Welcome to SYI Group

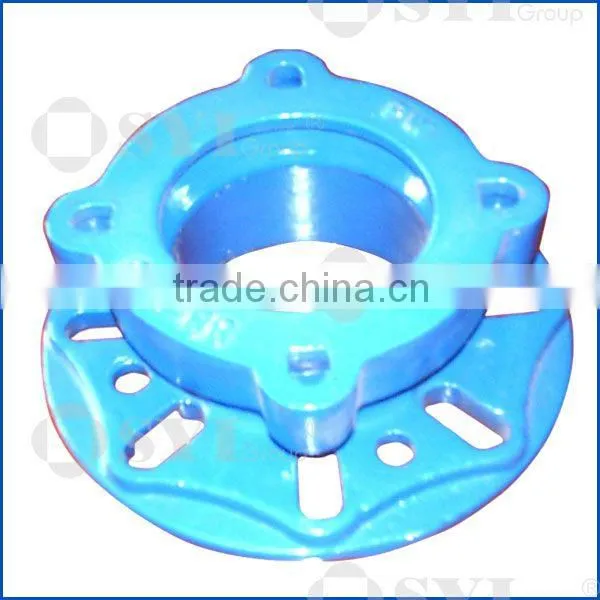

About Our SYI Universal Flanged Adaptors - SYI Group :
| SYI Universal Flanged Adaptors SPECIFICATIONS | |
| Material: | |
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1 D-BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization | |
| Flange: | |
| Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2 | |
| Working Pressure: | |
| 16 Bar or 250 PSI | |
| Fluid Temperature: | |
| 0°C-50°C, excluding frost | |
| Allowed Angular Deflection: | |
| 3° | |
| Joint Gap: | |
| 19mm | |
| Coating: | |
Externall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements | Internall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements |
| Reference Rules: | |
| Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545 | |
| Use: | |
SYI Universal Flanged Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent, with wide range tolerance on O.D. (up to 24mm), SYI Universal Couplings are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.
The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.
The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
SYI Universal Flanged Adaptors , with the further more reasonable sizes and ranges, can allow the pipes of main sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled. | |
Note: The accessories for SYI Universal Couplings are usually supplied by assembled on the body. | |
About SYI Couplings :
Specialist in Pipeline and Construction Products & Services!
- Universal Couplings,
- Universal Flanged Adaptors,
- Straight Couplings,
- Straight Flanged Adaptors,
- Large Range Couplings
- Quick Adaptors,
- Dismantling Joints,
- Clamps,
- Couplings Products Designed By SYI.
Manufacture Process & Quality Control :
- Manufacture Process:
Pattern Making | Sand Mixing | Moulding |
| ||
Pouring | Grinding & Shot Blasting | Machining |
| ||
Coating and Lining | Accessories manufacturing | Packing |
| ||
- Quality Control:
Couplings & Flanged Adaptors Installation Instructions :
Warning: SYI Couplings and Flanged Adaptors don't restrain axial pipe movement!
More certification ... (Contact us!)
SYI Industrial Co., Ltd.
Company Profile
About SYI Group
Specialist in Municipal, Drainage & Machinery Products & Services
SYI Group Companies have served the society for over 20 years with best Municipal, Drainage and Machinery products.
* SYI Foundry (Shanxi Yuansheng Casting & Forging Industrial Co., Ltd.) --- manufactures Manhole Covers, Gully Gratings, Surface Boxes, Tree Gratings, Bollards, Garden Benches, Cast Lamp Posts & Bases and all types of SYI/OEM municipal products and outdoor furnitures.
* SYI Pipeline Corporation --- manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Quick Adaptors, Dismantling Joints, Clamps, Valves, and etc.
* SYI Industrial Casting Division (Shanxi Yuansheng Industrial Co., Ltd.) --- manufactures all kinds of Investment Castings / Precision Castings, Lost-Wax Castings, Resin Sand Casting, Lost Foam Castings and more.
* SYI Forging Factory (Shanxi Yuansheng Casting & Forging Industrial Co., Ltd.) --- manufactures Flanges, Forged Rings, Forged Fittings, Lifting Anchors, Drop Forgings, Cold Forgings and other Free Forging and Die Forging products.
* SYI Aluminum Division --- manufactures Aluminum Sand Castings, Permanent Mould, Aluminum Die Castings, Aluminum Extrusions and all types of aluminum products.
Since the second half of 20th century, SYI has been an OEM manufacturer of machined & un-machined castings and forgings in a variety of industries. Today, we manufacture over 1,000 products - everything from single flange to customized street lamps. SYI are continuing to refine our role as a technical expert, quality leader and fast reactor.
At Shanxi base, we have over 500,000 square meters of workshop, warehousing and production facilities. We have 6 automatic moulding machine lines, CAD machining center, professional laboratory, in-house pattern & tooling shops and most important-a group of highly experienced and technically qualified staff.
SYI regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2008 TUV certified, BSI Kitemarked, SGS certified, UL listed, FM certified and NF certified. Manufacturing "SYI" Brand products has evolved as a mark of quality!
SYI also has the capacity to assist the customer from initial design, engineering to final sample and production.
Our aim is to provide all of our customers with VALUE of the products in stead of only low prices.
