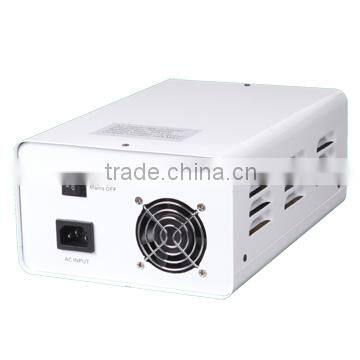

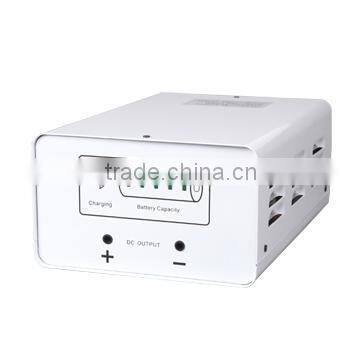

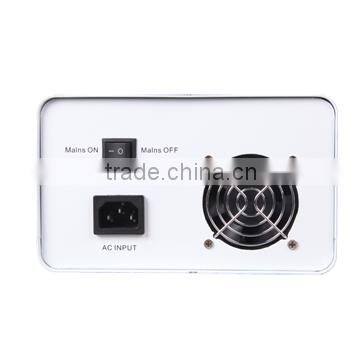

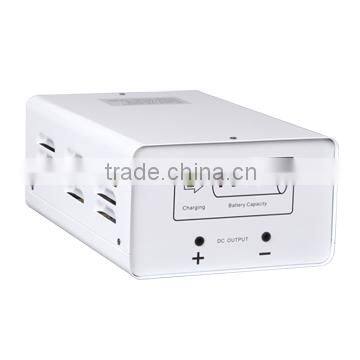

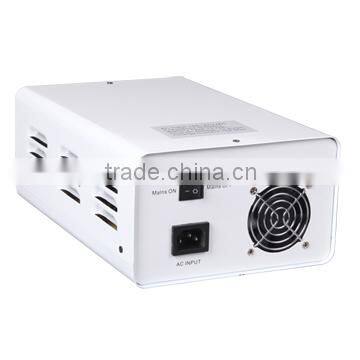

12V10A Lead-acid Battery Charger With Over Charge & Short Circuit Protection

Sako Electrical Group Co., Ltd.
12V10A Lead-acid Battery Charger With Over Charge & Short Circuit Protection thumbnail-1
12V10A Lead-acid Battery Charger With Over Charge & Short Circuit Protection photo-1
US$ 10 - 25 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
CHG-12V 10A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO
Model Number CHG-12V 10A
Accessories Extension Cord
Flexibility Portable

Specifications

1.Low cost and quality warranty
2.Intelligent charging management
3.With over-charge and short circuit protection



A.Short Description:





1.Wide Input voltage range
2.Intelligent charger management
3.Over charge protection
4.shortcircuit protection
5.LED light indicating charging status
6.Cut off charge by manual design
7.Portable design
8.Application for Lead acid battery
9.In series or Parallel connetion providing more option





B.Specification:

MODEL
CHG-12V 10A 12V 20A12V40A24V 10A24V20A24V40A48V 10A48V20A
SPECIFICATION
                                                   AC Input Features
Input AC Range(Vac)90V~270VAC
Input Frequency Range(Hz)50/60HZ
Input Current(A)0.91A1.82A3.64A1.82A3.64A7.28A3.64A7.28A
                                                     AC Charge Features
Charge Current(A)10A MAX.20A MAX.40A MAX.10A MAX.20A MAX.40A MAX.10A MAX.20A MAX.
Charge Voltage(VDC)13.8V13.8V13.8V27.6V27.6V27.6V55.2V55.2V
Overcharge Voltage Protection(VDC)15.0V15.0V15.0V30.0V30.0V30.0V60.0V60.0V
                                           PROTECTION
ProtectionOvercharge protection&Shortcircuit protection
                                 AMBIENT
Noise(dB)< 55dB (1 meter)
working Temperature-20°C~50°C
Humidity0~95% ( no condensation)
Sea Level(m)≤1500
                                     DIMENSION
L×W×H (products size) mmL267*W178*H113L267*W178*H113L267*W178*H160L267*W178*H113L267*W178*H113L267*W178*H160L267*W178*H113L267*W178*H160
L×W×H (package size) mmL307*W218*H153L307*W218*H153L307*W218*H200L307*W218*H153L307*W218*H153L307*W218*H200L307*W218*H153L307*W218*H200
Weight(NW Kg)(No battery)4.5Kg4.5Kg6.0Kg4.5Kg4.5Kg6.0Kg5.0Kg6.0Kg
Weight(GW Kg)(No battery)5.0Kg5.0Kg6.8Kg5.0Kg5.0Kg6.8Kg5.5Kg6.8Kg
20FT QTY( UNIT)27002700205027002700205027002050

12V10A Lead-acid Battery Charger with Over Charge & Short Circuit Protection12V10A Lead-acid Battery Charger with Over Charge & Short Circuit Protection12V10A Lead-acid Battery Charger with Over Charge & Short Circuit Protection12V10A Lead-acid Battery Charger with Over Charge & Short Circuit Protection12V10A Lead-acid Battery Charger with Over Charge & Short Circuit Protection
