Home > Products > Textile Ceramic > Customized Al2O3 Ceramic, High Precision Ceramics Parts
Customized Al2O3 Ceramic, High Precision Ceramics Parts
- 100000 Piece / Pieces per Month
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Alumina Ceramic Roller/Wire Guides for Textile Machinery
-
Textile Spare Parts, Al2O3 Advance Ceramic Part, Precious Ceramic Guide
-
Ceramic Textile Spare Parts, Al2O3 Advance Ceramic Part
-
Heat-resistance Al2O3 Ceramic Spare Parts for Textile Machinery
-
Fine Polish Al2O3 Ceramic Spare Parts for Textile Machinery
-
Al2O3 Ceramic Heater Parts, Textile Machinery Spare Parts
Product Details
| Place of Origin | Guangdong, China | |||
| Model Number | AV--CeramicParts | Brand Name | AV--2015061012 |
Product Description

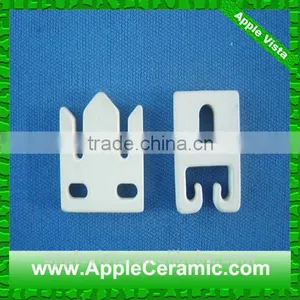

Customized Al2O3 Ceramic, High Precision Ceramics Parts

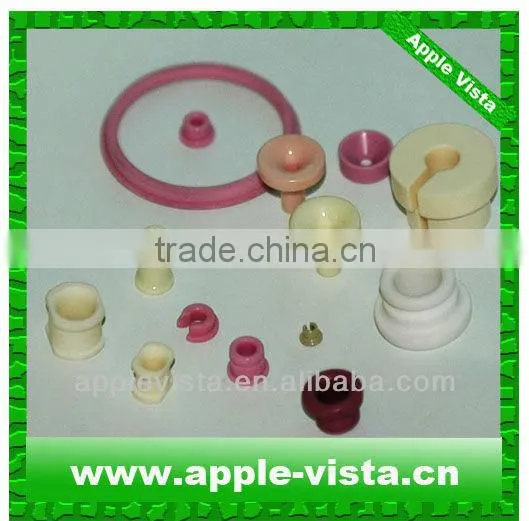

Customized Al2O3 Ceramic, High Precision Ceramics Parts
Specification of ceramic parts
1. these textile ceramic parts do not wear easily , low friction.
2. desirable surface fineness.
3. suitable for use in textile machinery and in fine spinning and kintting machines.
4. we can produce textile ceramic products according to clients specifications and even the molds and drawings.
Parameter of Al2O3 Ceramic Parts
Name | Unit | Slim | ||
Mterial | Al2O3 | 95-97% | 99% | 99.7% |
Desity | g/cm3 | 3.7 | 3.85 | 3.9 |
Flexural Strength | Mpa | 300 | 340 | 390 |
Compressive Strength | Mpa | 3400 | 3600 | 3900 |
Modulus of Elaslicity | Gpa | 350 | 380 | 390 |
Impact Resistance | Mpa m1/2 | 4.0 | 5.0 | 5.2 |
Weibull Moudulus | m | 10.0 | 10.0 | 12.0 |
Vickers Hardness | HV0.5 | 1800 | 1900 | 2000 |
Thermal Expansion Coefficent | 10-6K-1 | 5.0-8.3 | 5.4-8.3 | 5.5-8.4 |
Thermal Conductivity | W/mK | 24 | 27 | 28 |
Thermal Shork Resistance | T°C | 250 | 270 | 280 |
Maximum Use Temperature | °C | 1600 | 1650 | 1700 |
Volume Resistivity at 20°C | Ω | ≥1014 | ≥1014 | ≥1015 |
Dielectric Constant | KV/mm | 20 | 25 | 30 |
Open Porosity | % | 0 | 0 | 0 |
Dielectric Constant | ξr | 10 | 10 | 10 |
Dielectric Loss Angle | Tanσ | 0.001 | 0.001 | 0.0005 |

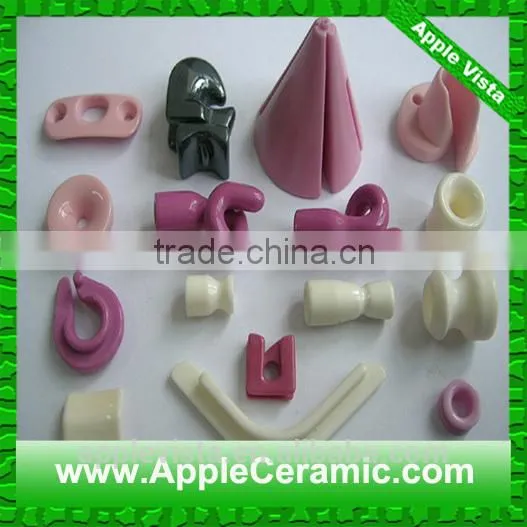

Customized Al2O3 Ceramic, High Precision Ceramics Parts

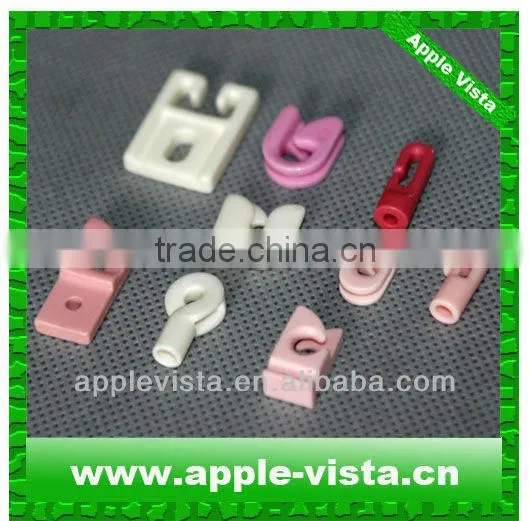

Customized Al2O3 Ceramic, High Precision Ceramics Parts
