Inverter Price Pure Sine Wave Solar Inverter SKN-SS With Charge and Stabilizator(OEM,ISO,CE)

Sako Electrical Group Co., Ltd.

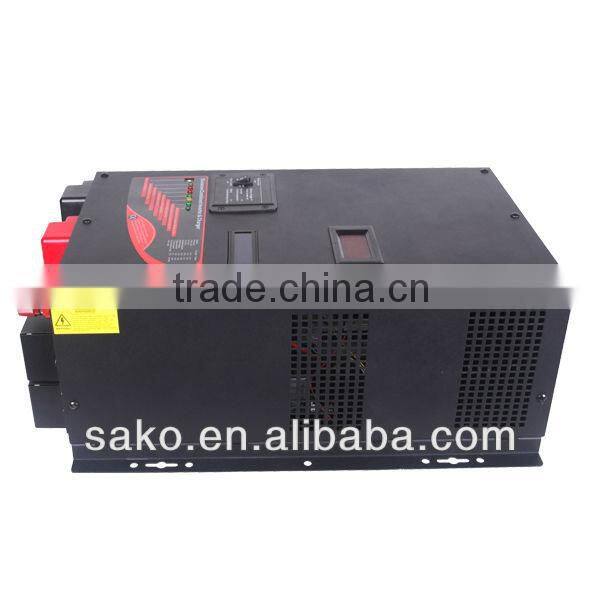

Inverter Price Pure Sine Wave Solar Inverter SKN-SS With Charge and Stabilizator(OEM,ISO,CE) thumbnail-1
Inverter Price Pure Sine Wave Solar Inverter SKN-SS With Charge and Stabilizator(OEM,ISO,CE) photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
SKN-SS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO
Model Number SKN-SS
Specification Normal
Application Industrial
Output Voltage (V) 120VAC or 230VAC (Sine wave)
Load Power (W) 1KW-10KW
Solar Power (W) 1KW-10KW
Work Time (h) 24

Specifications

Pure Sinewav Inverter
Power Factor 100% Pure Sine Wave
110V or 230V Input
Controller with Charger
LCD Inverter CE

Hot Sale High Quality Pure Sinewave Solar Inverter SKN-SS from 21 Years OLD BRAND "SAKO"

1.Input: 110V or 230VAC 50/60Hz

2.Output: 220VAC 50/60Hz

3.Power Factor 1

4.Pure Sine Wave

5.Suitable 7 Kinds of Battery Charging



SAKO SKN-SS SERIES HIGH FREQUENCY HOME INVERTER

-Micro Processsor Control

-Builing inside with solar controller

-Smart size design

-Full automatic and silent operation

-Automatic Line-to-Battery Switch over

-Three stage Intelligent Automatic Charging Mode Technology

-Remote control solution by RJ11 and remote panel

-Automatic charge while AC recovery(off model charging)

-High Efficient DC-to-AC conversion.minimizing energy loss

-Over load,short circuit protection Over charge , discharge protection

-Low battery and high protection

-Cool start

-Isolated output

-Compatibility with generators

-Full Multi-function LED Display with full meanings and buzzer alarms Design

-Application for Fan, light ,TV and office Appliances

-Intelligent Variable speed fan operation

-Battery type setup to get the best charge voltage and mode

Feature

Sine Wave Inverter/Charger System

The Desirable Long Backup Power Solution For Home And Office Appliances.

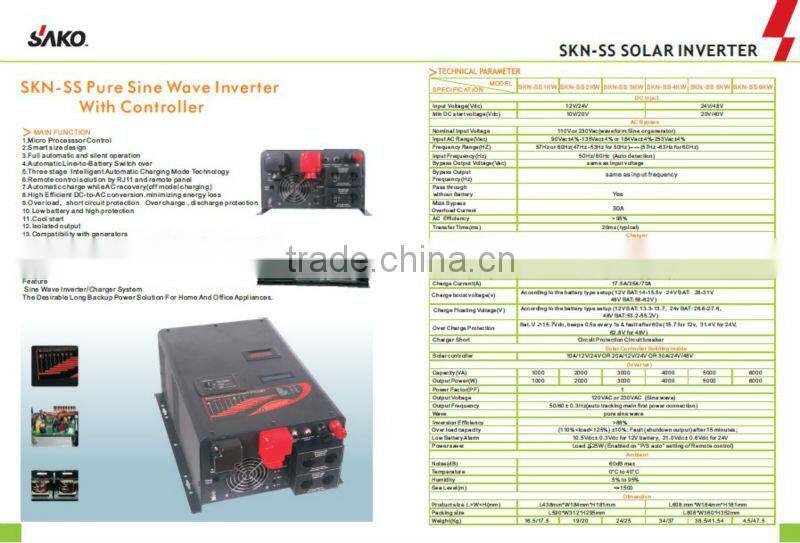

SAKO Solar Inverter Specification

MODEL
SKN-SS 1KWSKN-SS 2KWSKN-SS 3KWSKN-SS 4KWSKN-SS 5KWSKN-SS 6KWSKN-SS 8KVASKN-SS 10KVA
SPECIFICATION
DC INPUT
Input Voltage(Vdc)12V/24V24V/48V48V/96V
Min DC start voltage(Vdc)10V/20V20V/40V48V/96V
AC Bypass
Nominal Input Voltage110V or 230Vac(waveform:Sine or generator)230Vac(waveform:Sine or generator)
Input AC Range(Vac)90Vac±4%-135Vac±4% or 184Vac±4%-253Vac±4%184Vac±4%-253Vac±4%
Frequency Range(HZ)57Hz or 60Hz(47Hz -53Hz for 50Hz)-----{57Hz -63Hz for 60Hz}
Input Frequency(Hz)50Hz/ 60Hz (Auto detection)
Bypass Output Voltage(Vac)same as input voltage
Bypass Output Frequency(Hz)same as input frequency
Pass through without BatteryYes
Max Bypass Overload Current10A30A40A50A
AC Efficiency> 95%
Transfer Time(ms)20ms (typical)
Solar controller
Solar controllerwith 10A,20A,30A,40A,50A,80A 12V/24V/48V/96V/192V optional
AC CHARGER
Charge mode Input Voltage Range95~127Vac or 196~243Vac196~243Vac
Automatic Charge modeThree stage charge mode Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage)
Nominal Charge VoltageAccording to the battery type setup
Charge Current(A)17.5A/35A/70A25A
Charge boost voltage(v)According to the battery type setup( 12V BAT 14-15.5v   24V BAT  28-31V   48V BAT 56-62V 96V BAT 112-124V)
Charge Floating Voltage(V)According to the battery type setup (12V BAT  13.3-13.7, 24v BAT 26.6-27.6, 48V BAT 53.2-55.2V 96V BAT 106.4-110.4V)
Over Charge ProtectionBat. V ≥15.7Vdc, beeps 0.5s every 1s & fault after 60s (15.7 for 12v, 31.4V for 24V, 62.8V for 48V, 125.6V for 96V)
Charger Short Circuit ProtectionCircuit breaker
(INVERTER)
Capacity(VA)100020003000400050006000800010000
Output Power(W)10002000300040005000600064008000
Power Factor(PF)10.8
Output Voltage120VAC or 230VAC (Sine wave)230VAC (Sine wave)
Output Frequency50/60 ± 0.3Hz(auto tracking main first power connection)
Wave pure sine wave
Inversion Efficiency>88%
Over load capacity(110%<load<125%) ±10%  Fault (shutdown output) after 15 minutes
(125%<load<150%) ±10%  Fault (shutdown output) after 60s
Load>150% ±10%  Fault (shutdown output) after 20s
Low Battery Alarm10.5Vdc ± 0.3Vdc for 12V battery, 21.0Vdc ± 0.6Vdc for 24V battery, 42.0Vdc ± 1.2Vdc for 48V battery, 84.0Vdc ± 2.4Vdc for 96V battery
Power saverLoad  25W (Enabled on “P/S auto” setting of Remote control)no Function
AMBIENT
Noise(dB)60dB max.
Temperature0°C to 40°C
Humidity5% to 95%
Sea Level(m)≤1500
DIMENSION
Product size L×W×H(mm)L438mm*W184mm*H181mmL608mm*W184mm*H181mmL610mm*W230mm*H560mm
Packing sizeL590mm*W312mm*H295mmL808mm*W360mm*H352mmL710mm*W330mm*H660mm
Weight(Kg)16.5/17.519/2024/2534/3738.5/41.544.5/47.565.0/70.070.0/75.0

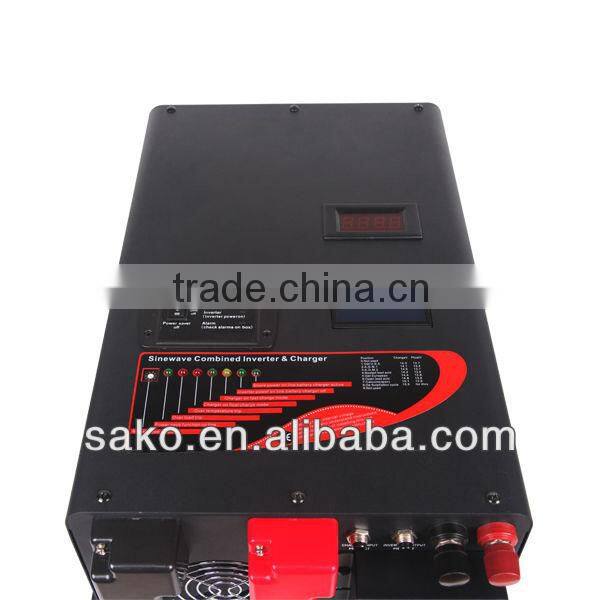

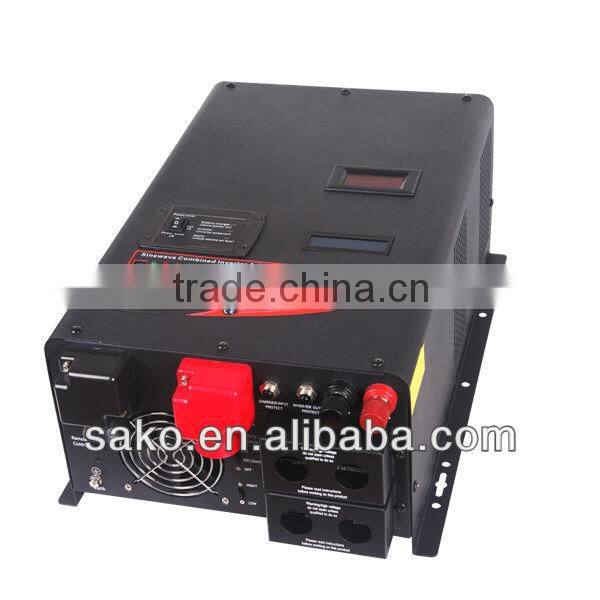

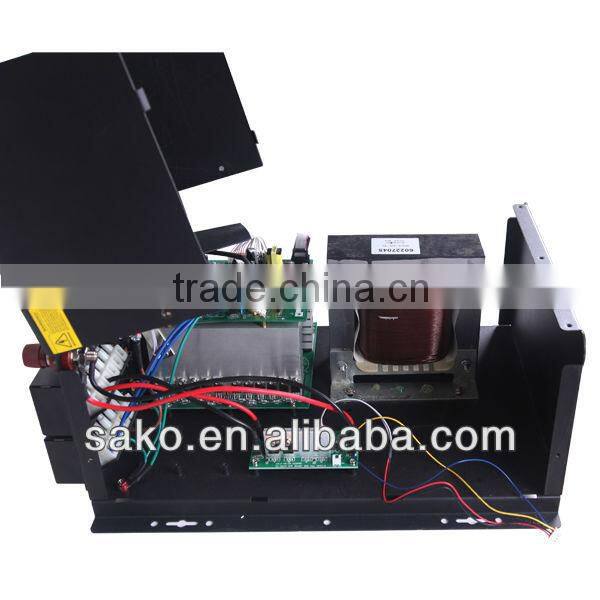

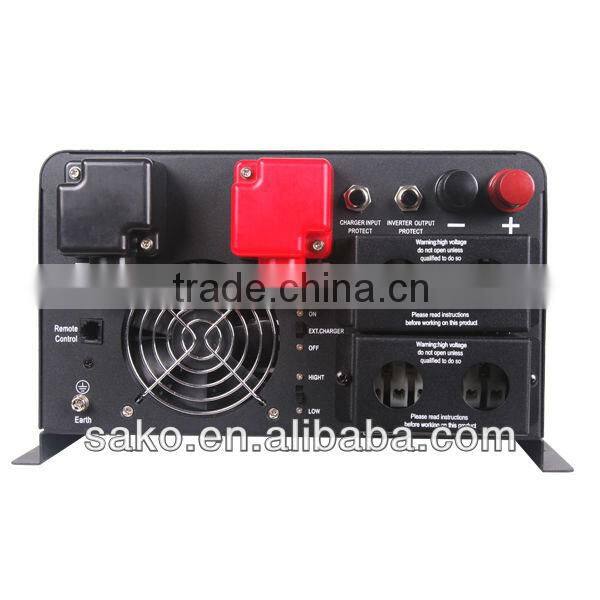

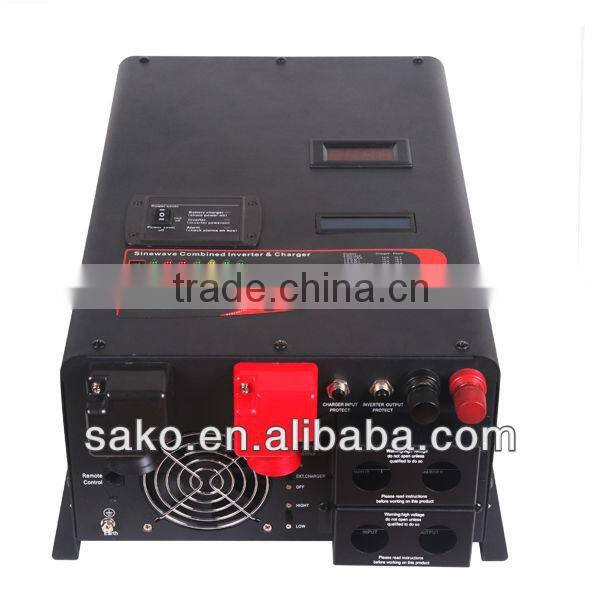

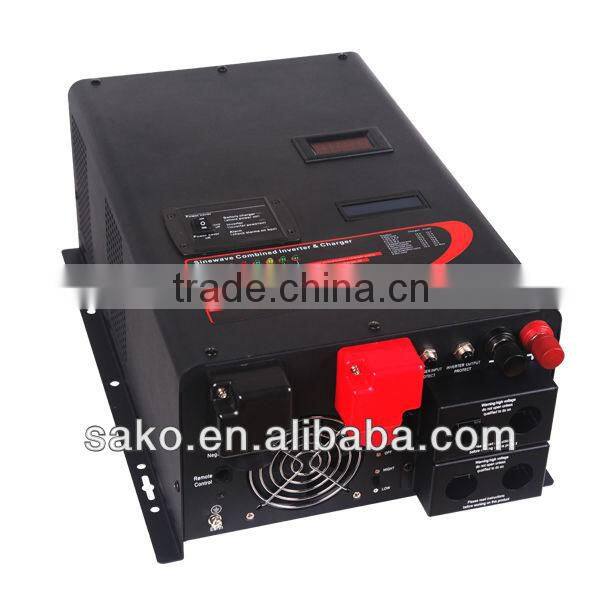

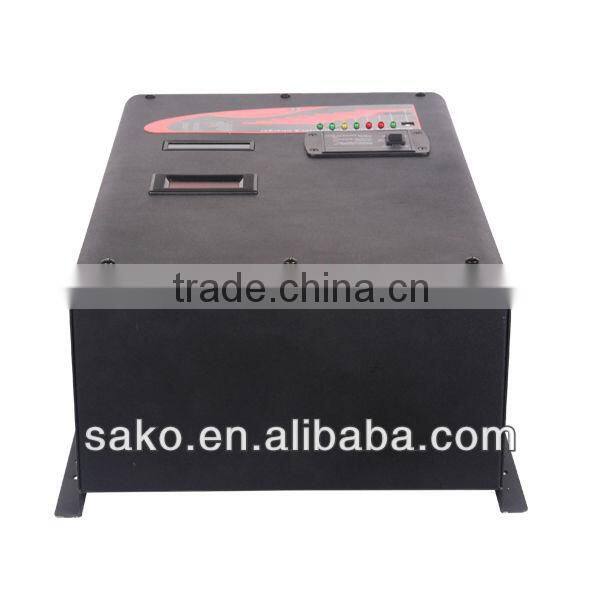

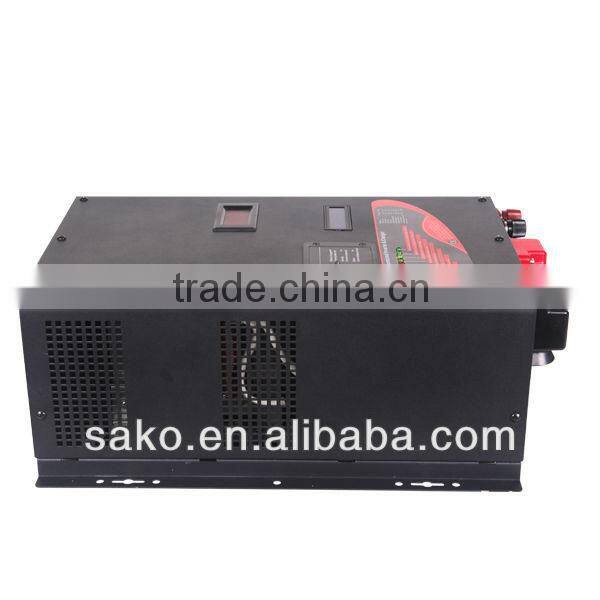

SAKO Solar Inverter More Pictures

Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)Inverter Price Pure Sine Wave Solar Inverter SKN-SS with Charge and Stabilizator(OEM,ISO,CE)

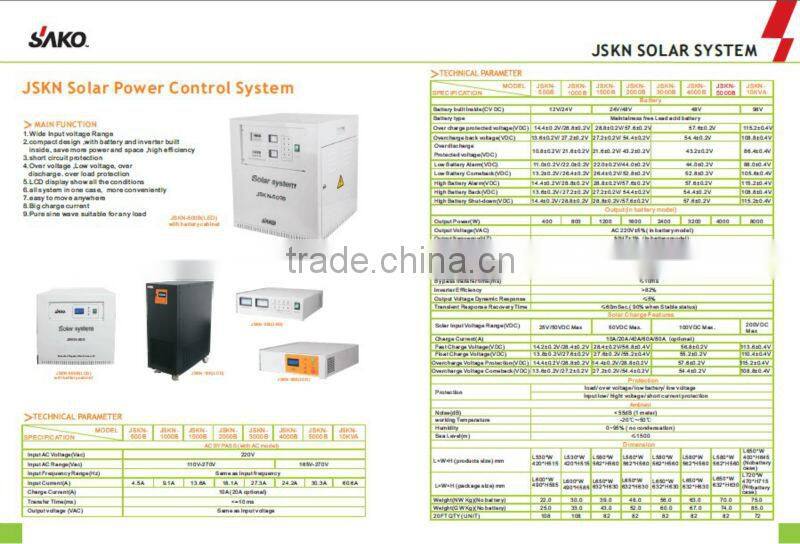

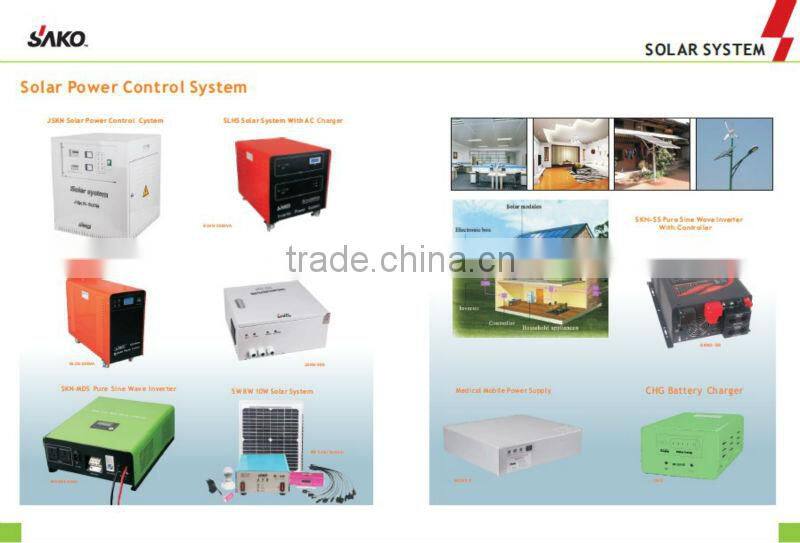

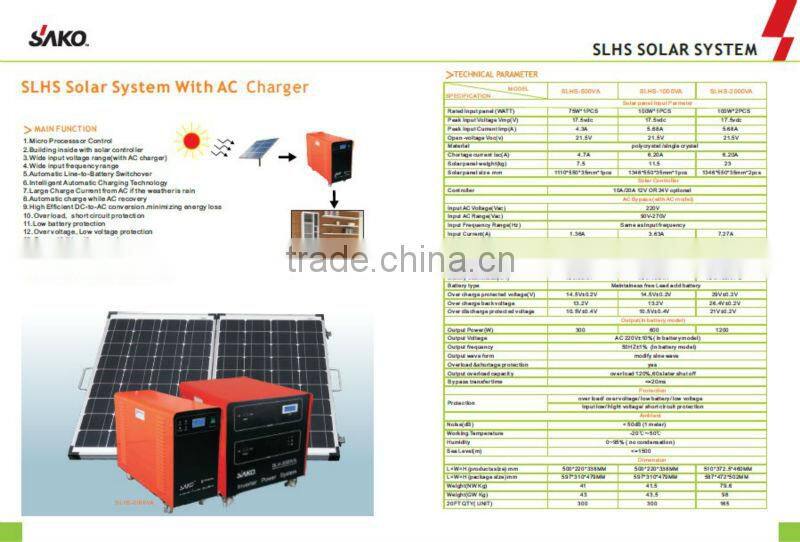

SAKO Other Solar System
