PM9811 Automatic harmonic digital power meter test for led standard lamp
The product Description:
1. LED Digital display: Voltage, Current, Power, Power factor, frequency,2-5 harmonic at the same time
2. All measurements are TRMS
3. Automatic Range
4. Accuracy:0.5
5. Not affected by external noise
6.With standard RS232 Communication interface

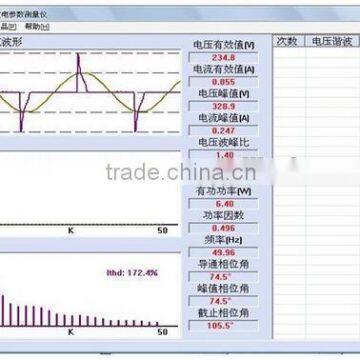

7.With standard harmonic test software
8. Suitable for the production line test, such as lighting products, home appliances, electrical machine products, power products, etc.
Specification:
Connection | Single Phase |
Display | Four Windows display, Seven-segment digital tube |
Measuring items | Voltage-V, current-A, active power-W, power factor-PF, Frequency-Hz |
Measuring form | True Root Mean Square(Trms) |
Voltage Rang | 75V/150V/300V/600V AC (switch the range automatically) Peak voltage:700V AC |
Current Range | 0.5A/2A/8A/20A AC(switch the range automatically) Peak currents:26A AC |
Power Range | 0.1W-9999W |
Power factor range | 0.001-1.000 Compute mode: Watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
The frequency Range | 45-64Hz |
Basic Accuracy | ±0.4% reading +0.1%range+1 digit |
Measuring Speed | Five times per second |
Input Impedance | ≥1MΩ(All voltage) |
Communication Interface | 9Pin-9Pin(Rs232) |
Power Supply | 220V AC,50/60 Hz |
Volume and Weight | 380mm(L)*260mm(W)*160mm(H), 4.3KG |
Attachment | Power line, fuses, specification, the Rs232 communication cable, optical disc |
The power meter details:
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
Q: 1. English version is available?
A: Yes
Q: 2. Does it have the function of Communication?
A: Yes, there have RS232 or RS485 (Optional).
Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement
Q: 4. Do you have any MOQ limit?
A: 1pc
Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.
Q: 7.Can you make OEM service?
A: Yeah,we can!
