Home > Products > Rubber cutting machine > Single shear-type plastic machine with good quality

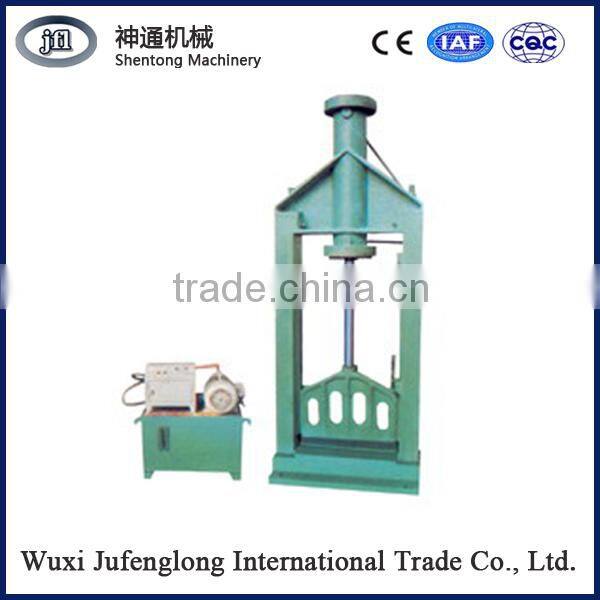

Single shear-type plastic machine with good quality
- 5 Set / Sets per Month
- Shanghai
- T/T
- 660-1 Single shear-type plastic machine, rubber cutting machine
- Single shear-type plastic machine, New Condition rubber cutting machine 660-1
- New design and high quality 660-1 Single shear-type plastic machine, rubber cutting machine
- X(S)M-50*40 Drop door type rubber kneader/Banbury internal mixer with PLC controller
- 75L Drop door type rubber kneader/Banbury internal mixer with PLC controller
- 120L Drop door type rubber kneader/Banbury internal mixer with PLC controller
Product Details
Condition: | New | Type: | Other, Regeneration rubber equipment | Place of Origin: | Jiangsu, China |
Brand Name: | Shentong | Model Number: | 660-1 | Voltage: | 380V |
Power(W): | 5.5KW | Dimension(L*W*H): | 2530*1135*2012 | Weight: | 1.5T |
Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Overseas third-party support available |
Product Description

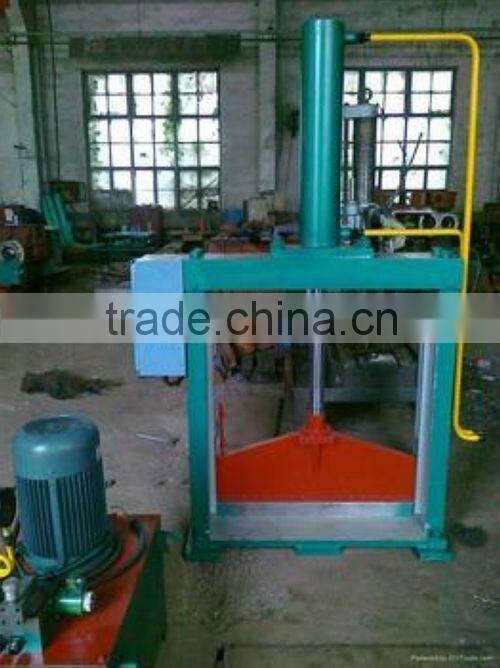

660-1 Single shear-type plastic machine, rubber cutting machine
Specifications
High efficiency
Technical Specification
Model | 660-1 |
Gel Cut Width(mm) | 660 |
Cutter stroke(mm) | 680 |
Total pressure(t) | 8 |
Idle stroke time(seconds) | 10-14 |
Gel cut stroke time(seconds) | 14-16 |
Maximum working pressure(Mpa) | 4.5 |
Pump parameters(Mpa) | 6.3 |
Oil Grade | 20 motor oil |
Oil capacity(kg) | 250 |
Motor Model | Y132M-6 |
Speed(r/min) | 960 |
Power(kw) | 5.5 |
Voltage(V) | 380 |
Machine Dimensions(L*W*H)(mm) | 2530*1135*2012 |
Machine Weight(kg) | 1.5 |
Fuel tank weight(t) | 0.5 |
wooden box, wrapped with the plastic film (seaworthy)
Our company has its own factory which is specified in manufacturering all kinds of rubber machineries
nearly 30 years history (since 1984).
We have advanced measuring methods, sound quality assurance system, and experienced engineering team. We mainly produce internal mixer, open type mixing mill, roll calender, rubber extruder, rubber strainer,
rubber refiner and so on. Our products sell well around the world, such as Europe and the United States,
South America, Southeast Asia, Japan, etc.
What's more, we have TÜV AND BV certification reports about our company and factory, welcome
you to download or get them from me directly.
With spirit of ‘quality first, reputation oriented’, we warmly welcome all friends from home and abroad.
View of factory
1. Our guarantee period is one year, after this period,if you have any questions, please feel free to contact
us, we will try our best to help you.
2. If you need the certification of our machine(eg:CE etc.), we will do it for you.
3. Our engineers are available to install and debug the machines overseas.
4. We can design and manufacture the machine according to your special reqirements.
1. Are you manufacturer?
Yes, we are BV approved rubber products manufacturer in China.
2. Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3. What’s your payment term?
T/T, L/C.
4. How long is your guarantee?
One year (Calculated from the equipment arrives at the customer’s side.).
5. How to contact us ?
You can click 'send' now.
If you want to know more information about our products welcome to contact us in
any time, and welcome to our factory!
