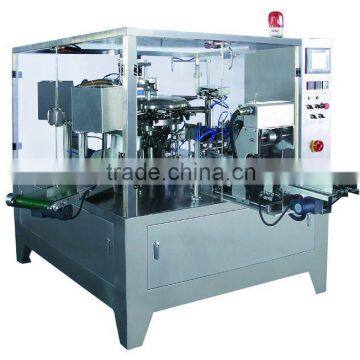

Price Automatic Popcorn Pouch Filling and Sealing Machine (GD6-300D)

Summarize:

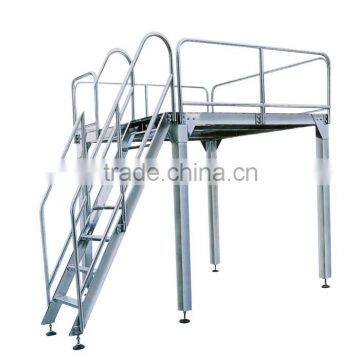

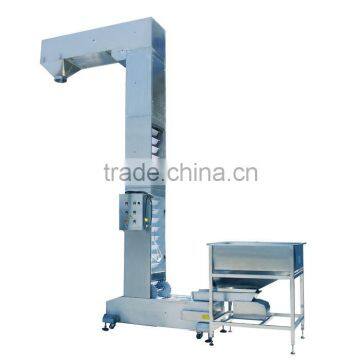

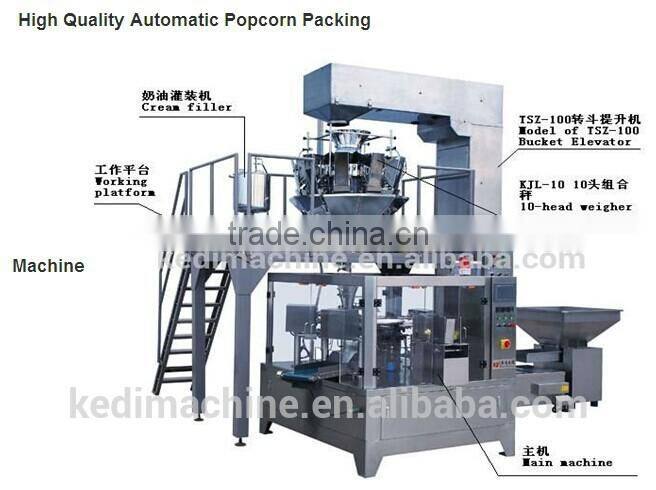

This automatic packaging machine unit is specialized in the microwave popcorn, which includes the GD6-200D special microwave popcorn rotary packaging machine,KJL-10 Multi-head Weigher,TSZ-100 Bucket Elevator,YJL-500A Liquid & Paste Filler and Working Platform.

Function and Characteristics:

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

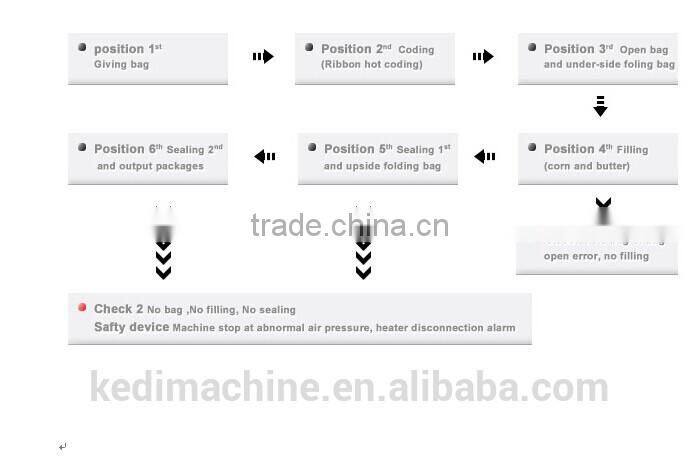

Automatic checking: no pouch or pouch open error, no fill, no seal, the bag can be used again, avoid wasting packaging materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

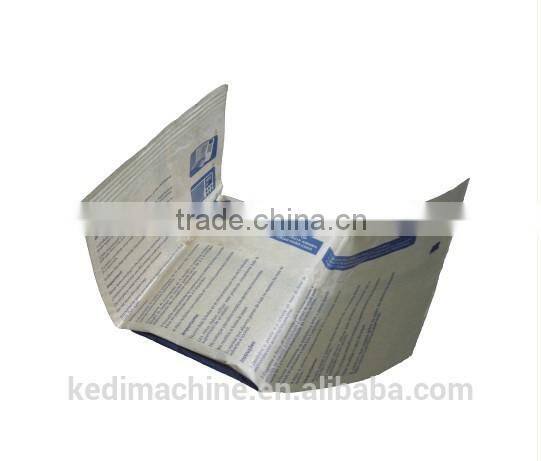

Automatic Folding-bag Function: It could do folding bags automatically, and match to the next packaging procedure.

The part where touch to the material is made of stainless steel.

Main technical parameters:

Working positon:     Six-working position

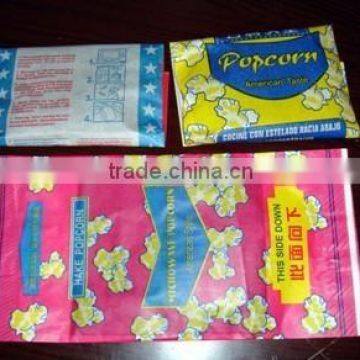

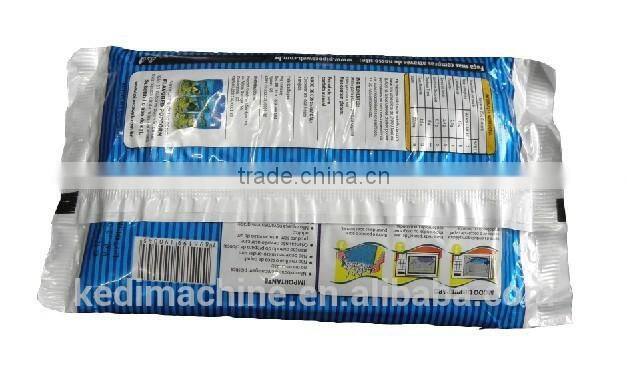

Pouch pattern:       Special microwave popcorn bag

Pouch size:           W:100-210mm L:100-350mm

Filling range:         10-1000g

Weighing range:      +0.5-1.5g

Speed:               10-45bags/min

Voltage:             380V 3phase 50/60HZ

Total power :         5.5KW

Compress air:          0.6m3 /min (supply by user)
