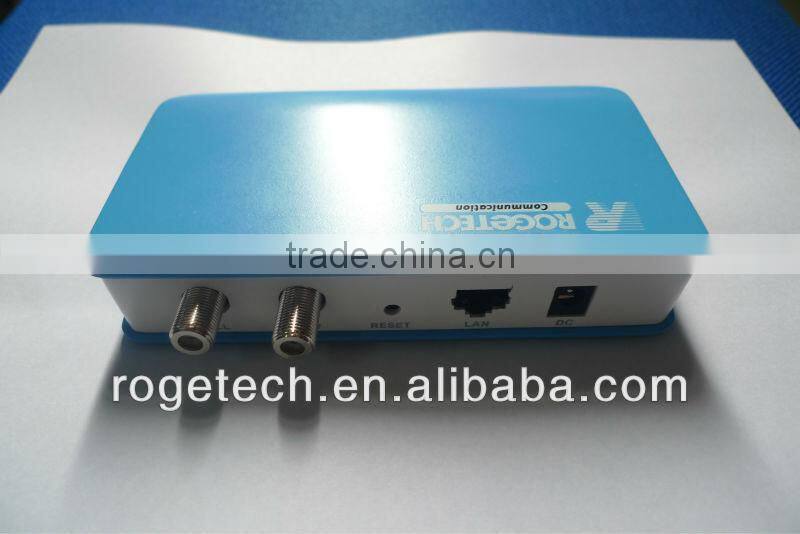

HOT & NEW EOC MODULE

KEY FEATURES:

* Speed up to 200 Mps

* Maximun 8 users

* Transfer Distance:300M

* Prodtocol/standards: homeplug AV, IEEE8023,IEEE802.3u

* Operating System:Windows98se/me/2000/2003/xp/vista, Windows 7,Linux, Mac OS

* Easy home network over existing coax , no additional wiring for TV and internet.

* Additional box design, no need to replace existing wall socket

* External power supply on user side only,No heavy burden on Multiswitch power supply, More safe for the system,More easy for replacement.

Data: 5-30MHZ

TV:85-862MHZ

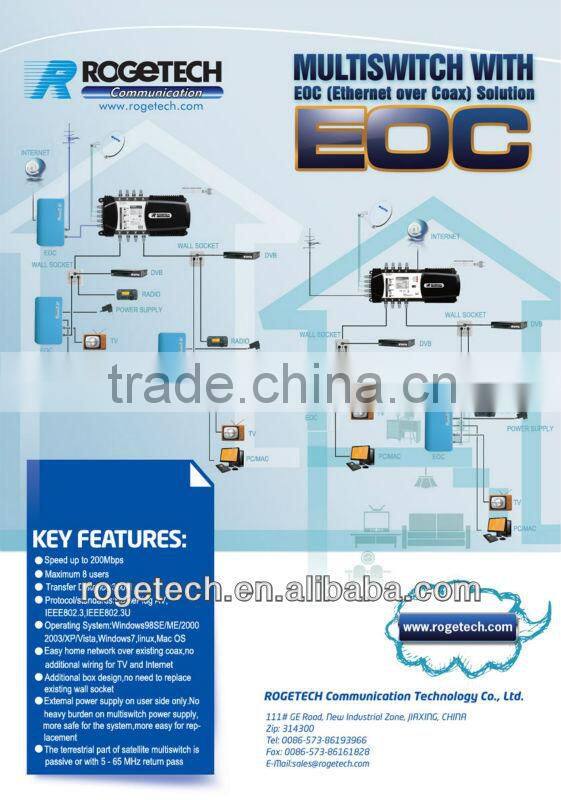

Application 1, With regular Rogetech or any brand multiswitch and existing coax network

Connect internet to LAN, connect TERR input to "CATV"("TV")

Connect "Wall" ("TV+DATA") to TERR input of regular multiswitch

At any wall socket, install another EOC module

Connect TV output to "Wall" ("TV+DATA") of EOC module

Connect "CATV"("TV") to TV

Connect LAN output to computer

Then you could watch TV programs as usual, on the same time, access Internet

Application 2, With EOC built-in multiswitch and existing coax network

Connect internet to LAN port of multiswitch, connect TERR input to TERR input of multiswitch

At any wall socket, install another EOC module

Connect TV output to "Wall" ("TV+DATA") of EOC module

Connect "CATV"("TV") to TV

Connect LAN output to computer

Then you could watch TV programs as usual, on the same time, access Internet

Application 3, With return path multiswitch and existing coax network

The multiswitch has return path (5-65MHZ), passive design for TERR.

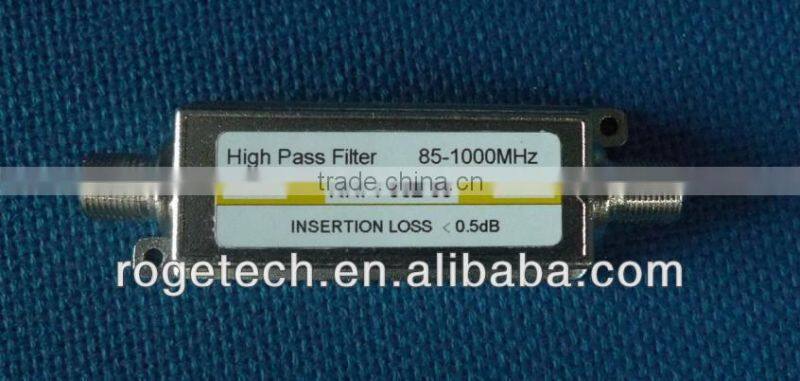

Connect the High pass filter at the Terr input, then you could connect Internet input at any wall socket (no need to connect to TERR input only)

Connect internet to LAN port of EOC module, connect TV output of wall socket to "Wall" ("TV+DATA") of EOC module, connect "CATV"("TV") of EOC to TV

At any other wall socket, install another EOC module

Connect TV output to "Wall" ("TV+DATA") of EOC module

Connect "CATV"("TV") to TV

Connect LAN output to computer

Application 4, with multi-mixer and existing coax network

Connect the High pass filter at the Terr input, then you could connect Internet input at any wall socket

Connect internet to LAN port of EOC module, connect TV output of wall socket to "Wall" ("TV+DATA") of EOC module, connect "CATV"("TV") of EOC to TV

At any other wall socket, install another EOC module

Connect TV output to "Wall" ("TV+DATA") of EOC module

Connect "CATV"("TV") to TV

Connect LAN output to computer
