FQFD Series Purifier for Wheat/Corn Flour

Specifications

FQFD Series Purifier for Wheat/Corn Flour
1.Various sieve sizes.
2.Aluminum inlets.
3.Import rubber spring bushes,SEFAR cloth

FQFD Series Purifier for Wheat/Corn Flour



Principle:

- This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified by the interaction of vibration and suction while it’s flowing to the end of the machine. The materials then are separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to different next passage.



Features:

- Advanced design and excellent fabricating.

- Sieve size:490mmx490mm, 590mmx590mm.

- Aluminum inlets, conveying and collecting trough for durable working.

- Imported rubber spring bushes, reliable.

- Imported SEFAR cloth.

- High quality vibration motor.



Application:

- Widely applied in modern flour mills for high quality flour.

- Successfully used for semolina flour in durum flour mills.

- Please feel free to contact us if more information is needed.

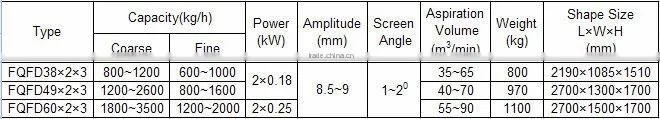

Specifications:
