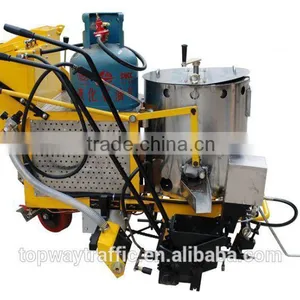

TW-V Self-walking Thermoplastic Vibrating Road line marking machine
- 5 Piece / Pieces per Month
- Huangpu/Hong Kong
- T/T L/C Credit Card
You May Like
-
TW-V Self-walking Thermoplastic Vibrational Road Line Marking Device
-
TW-V Self-walking Thermoplastic Vibrational Road Marking Device
-
TW-V Self-walking Thermoplastic Vibrating Road Marking Device
-
TW-V Self-walking Thermoplastic Vibrating Road Line Marking Machine
-
TW-V Self-propelled Thermoplastic Vibrating Road Marking Machine
-
TW-V Self-propelled Thermoplastic Vibrating Road Line Marking Machine
Product Details
| Condition | New | Power(W) | engine | |
| Place of Origin | Guangdong, China | Brand Name | TOP WAY | |
| Model Number | TW-V | Dimension(L*W*H) | 1400*1050*1050mm | |
| Weight | 250kg | Features | new design | |
| Certification | certification | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description

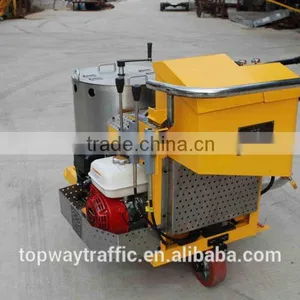

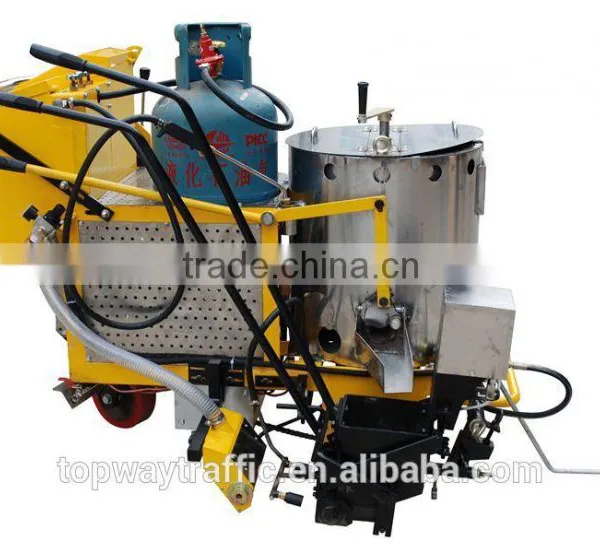

TW-V Self-propelled Thermoplastic Convex Road Marking Machine, made up of a hydraulic system, a pneumatic system, a mechanical system, and a microcomputer system, can complete the construction of baseline and vibrating line at one time and mark lines with different bulge length and bulge spacing by controlling the microcomputer.
Features of TW-V thermoplastic convex road marking machine
lThe hydraulic step less transmission device can make the machine walk automatically, which is faster and more effective.
lFor traditional self–propelled vibrating marking machines, the liquefied petroleum gas tank is too taller than operator that their sight is blocked. Our new model overcame this disadvantage by rearranging the hydraulic system, pneumatic system, mechanical system and the microcomputer system, which makes the machine structure more reasonable and user-friendly. The most important thing is that the total weight of the machine is 50KG lighter.

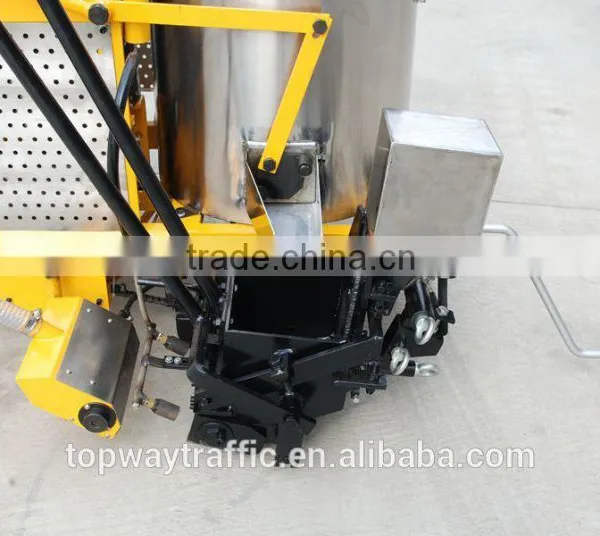

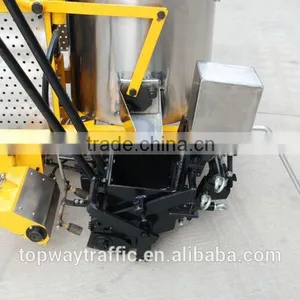

lThe new designed vibrating marking hopper adopted several kinds of new materials and is more durable than ordinary hopper. The new arrangement of the pneumatic system and mechanical system on the vibrating hopper contribute to fewer breakdowns of the air cylinder and electric equipment by keeping the air cylinder far away from heat source.
lLines of different bulge length and bulge spacing can be marked by adjusting the control panel of the microcomputer.
lThe hydraulic system, pneumatic system and microcomputer system we adopted are all well-known international brands, which make our vibrating marking machine function better.
The technial parameters of TW-V thermoplastic convex road marking machine
Outer dimensions(L*W*H) | 1400 X1100 X1100mm |
Total weight of machine | 220kg |
Capacity of glass beads box | 10kg |
Weight of paints to be melted: | 115kg |
Diesel engine power | HONDA gasoline engine of 5HP |
Working pressure | 0.5Mpa |
Walking installment: | Hydraulic pressure step less speed regulation |
Walking speed | 0-10km/h |
Lineation speed | >400m/h(depending on coat, baseline thickness and bulge thickness) |
Gradient | 30%(about 16.5º) |
Bulge height | 1-10(depending on the quality of paint) |
Bulge spacing: | 1-999mm within error of ±5mm |
Bulge length | 1-999mm within error of ±5mm |
Bulge width | Standard models Hopper of 150mm. made up of three lines with each 25mm Hopper of 200mm. made up of four lines with each 25mm Hopper of 300mm. made up of four lines with each 25mm |
Baseline thickness | 1-5mm |
Glass dead dispense method | Gear driven, automatically clutch, fine adjustment dispense amount |
Heating method | 15kg liquefied petroleum gas |

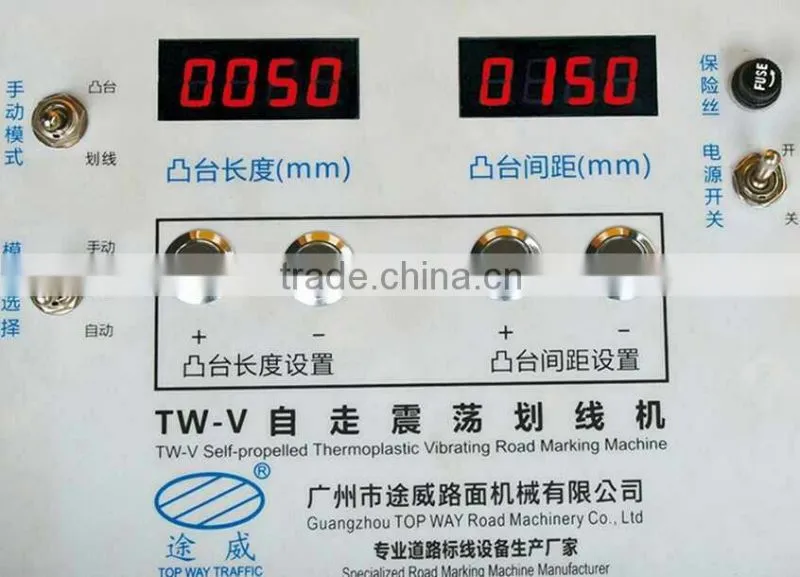

1)Microcomputer:The bulge spacing and the bulge length could be adjusted by the microcomputer. ONLY BULGE?ONLY BASELINE?AUTOMATIC?MANUAL?WELL,TAHT IS NO PROBLEM.

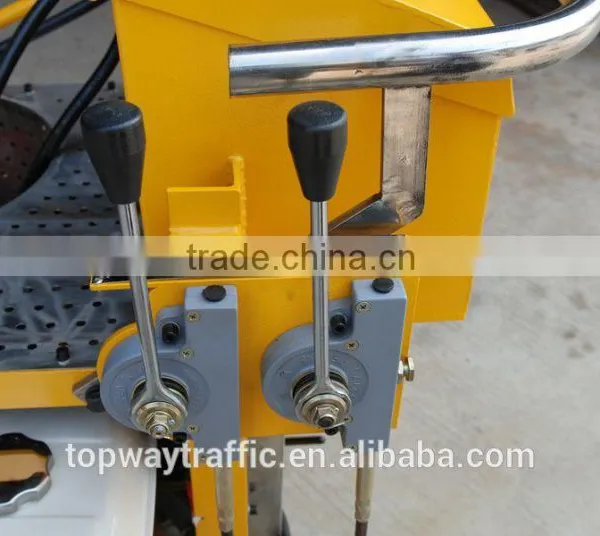

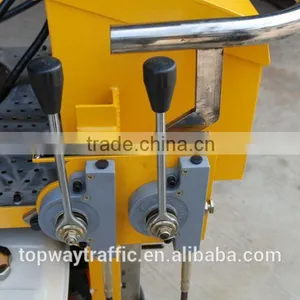

2)Speed controller: You want go forward? or draw back? faster? slower? Choose TOP WAY , you could do that.

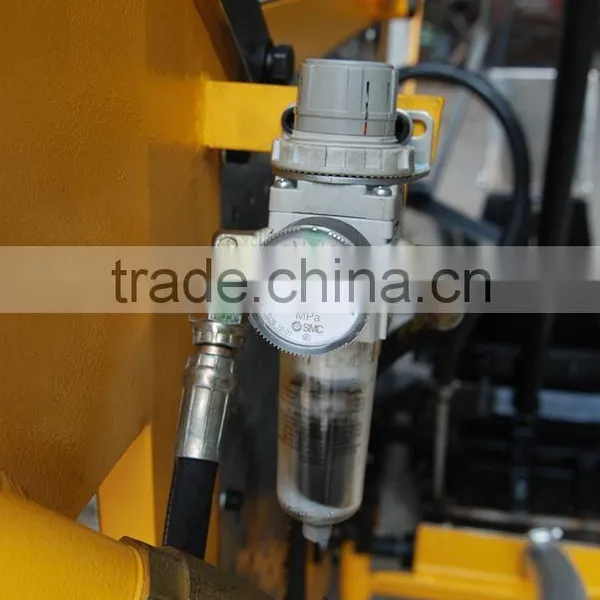

3)Paint filter: Let all varia go away.

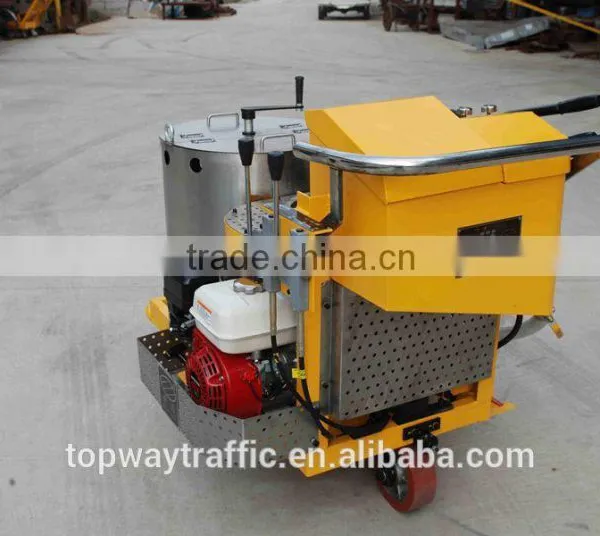

4)Honda engine: hard to find better one than it.

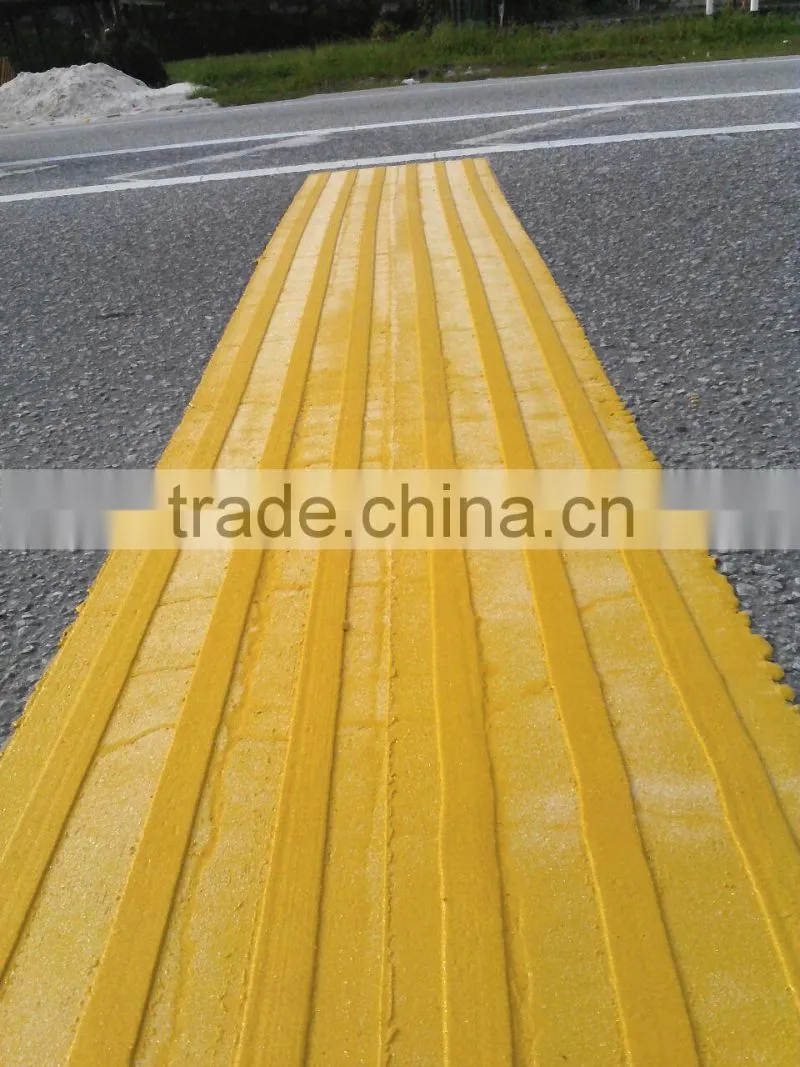

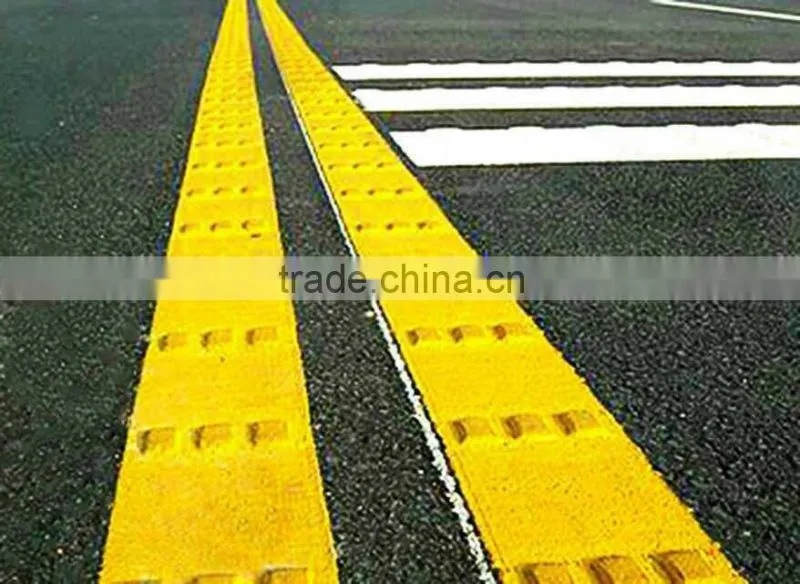

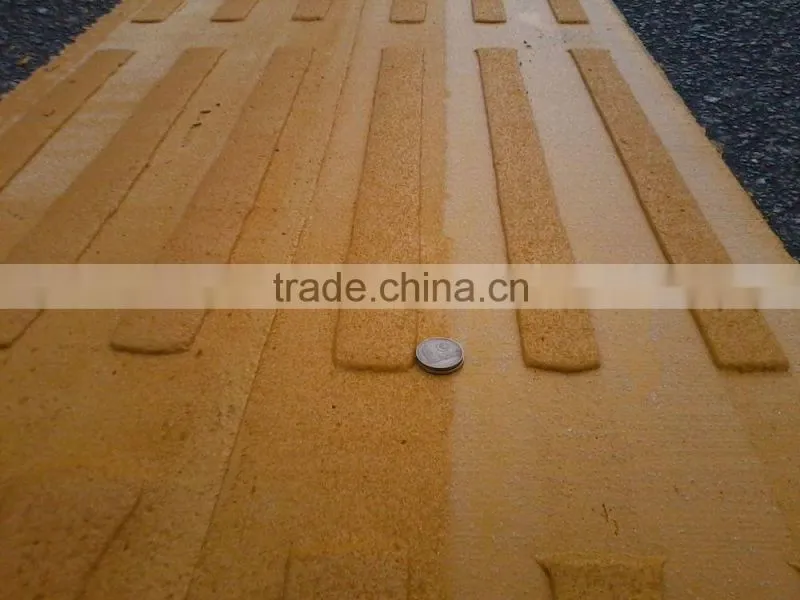

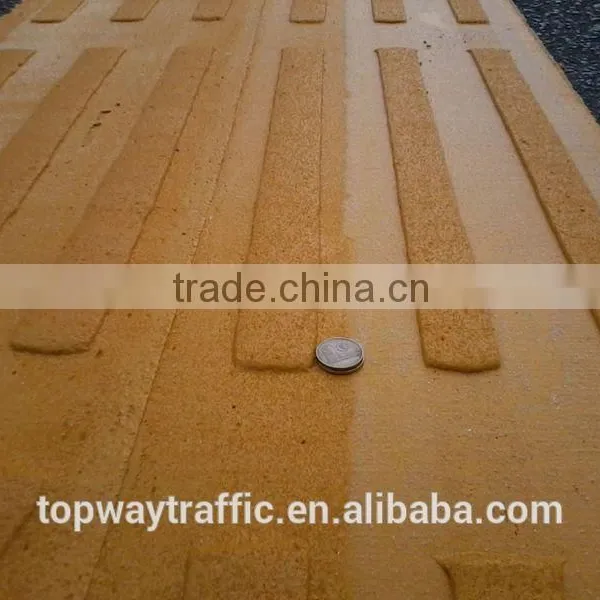

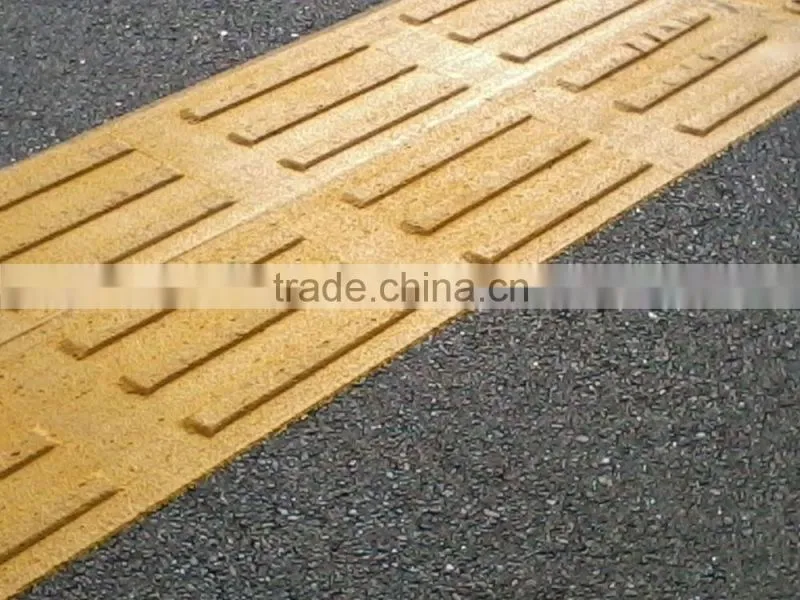

5)Real pictures from our customers
1. Q: Can this machine preheat the thermoplastic paint?
A: No. It needs to work with a preheater, like the last picture. The TW-H just can preserve the heat of thermoplastic paint.
2. Q: Do you have thermoplastic road marking machine with preheater?
A: Yes, we have. It is model TW-FJ, which is suitable for small line marking project. For more details,pls check home page.
3.Q: Can I adjust the line thickness? And how?
A: Yes, it could be adjusted by edging knife and hanger. The normal line thickness is 1.2-4 mm.
4.Q: How to mark lines in different width?
A:Change the marking hopper, change line width. We have varied sizes, from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we could produce special marking hopper for you.
5. Q: What about the after-sale service?
A: We are responsible to provide technical advise in the machine's whole shelf life. We help solving problems via whatsapp, skype,viber and email by sending pictures and videos.
6.Q: Could you produce customized machine?
A: Yes, we could. We are the manufacturer of thermoplastic road marking machine in Guangzhou City.
7. What about the shipment?
A: It is on your choice. Usually, we recommend sea shipping which provides reasonable prices. Also, for spare parts, it could be in FEDX, DHL and ther internatioanl express.
If you have other questions, please feel free to contact us! We shall be glad to answer them.
