Dinghua DH-5830 infrared bga rework station soldering flip chip qfp csp pop with germany Elstein ceramic heating

Product Application

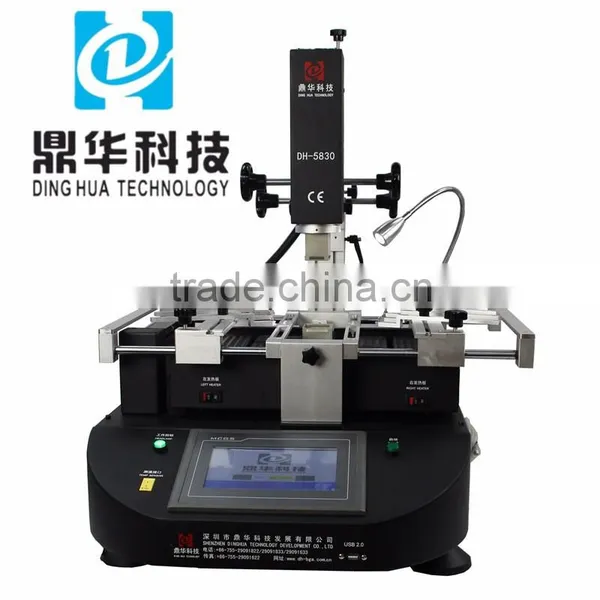

BGA rework station DH-5830soldering/deolsdering motherboard of cellphone ,PC and other electronic consumables, which is loaded with feature of industrial PC with HD touch screen, temperature controlled precisely and humanized design.

Main Features

1) With vacuum sucker, pick up the bga chip conveniently after desoldering.

2) With USB 2.0 interface, can be connected with a computer or mouse, screenshot temperature curve or future system update.

3)Real-time settings and actual temperature profile display can be used to analyzed and correct parameters.

4)External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

5)Adopt three heating zone, upper and low heater hot air, bottom heater is infrared preheating zone.

6)K type and close loop control, temperature accuracy will be on ±2°C.

7)High power cross flow cooling fan, prevent the PCB from deformation.

8)Sound hint system: there is voice reminder 5-10s before the completion of heating, to get the operator prepared.

9)security measure: overheat guard and emergency stop function

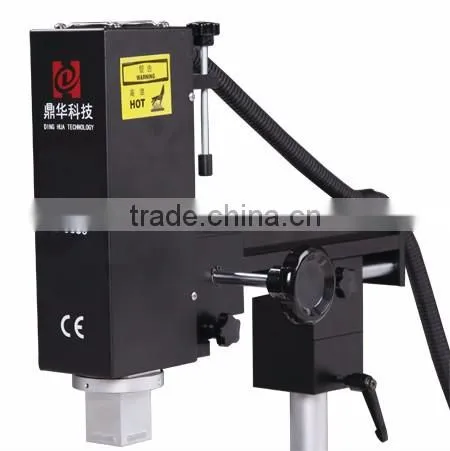

Name: Top head

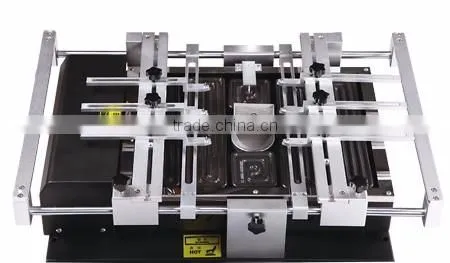

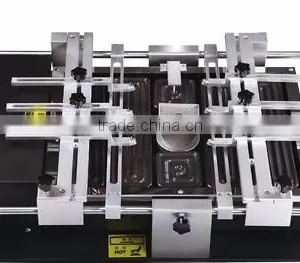

Name:  BGA rework station bottom part

1. Bottom hot air heater  that can be adjusted up/down.

2. Universal fixture can fix rapidly any shaped PCB boards.

3. Two pieces of beams used for regular and large PCB boards.

4. Whole of PCB holder can move to left or right, and fix it by a screw.


Name:Operation interface

1. Industrial PC with HD touch screen , temperature controlling precisely.

2. Temperature sensor detecting real-time temperature

3.Led and start button, resonable design, using conveniently

Name: Vacuume pen
