Home > Products > New Products > assemble RHD/LHD 2WD gasoline 1 ton mini truck SKD/CKD
assemble RHD/LHD 2WD gasoline 1 ton mini truck SKD/CKD
- 100000 Unit / Units per Month
- Port of China
- T/T
You May Like
-
assemble 2WD gasoline Single Canbin Mini Truck with SKD/CKD parts
-
assemble RHD/LHD rear wheel drive mini double cabin truck with SKD/CKD parts
-
assemble RHD/LHD RWD double cabin gasoline mini truck with SKD/CKD parts
-
assemble RWD petrol double cab mini truck with SKD/CKD parts Quality Choice
-
assemble 1000cc single/double cabin cargo truck with SKD/CKD parts
-
assemble 1000cc 2WD mini cargo truck with SKD/CKD parts
Product Details
Type | PickUp | Fuel | Gas/Petrol | |
Gear Box | Manual | Made In | China | |
Steering | Left | Drive | RWD | |
Brand Name | Customized | Place of Origin | China | |
Model | Mini Truck | Year | 2015 | |
Month | 1 |
safe export packages (RHD/LHD 2WD gasoline 1 ton mini truck)
Product Description
"assemble RHD/LHD 2WD gasoline 1 ton mini truck with SKD/CKD parts in local" has many advantages, such as: to save customs duty; to save freight; it is easy to start; the assembling operation is very simple, from SKD to CKD much easier
assemble RHD/LHD 2WD gasoline 1 ton mini truck with SKD/CKD
Description of the 2WD gasoline 1 ton mini truck---
Technical details of this 2WD gasoline 1 ton mini truck (LHD & RHD are available)
---Basic Parameter Datas (1020 model 2WD gasoline 1 ton mini truck):
1020 Model 2WD gasoline 1 ton mini truck | |||
Main Performance Parameters of the 2WD gasoline 1 ton mini truck | |||
Model code | Single Cabin | ||
Dimensions | Seat (including driver) | 2 | |
Overall Dimension(Length*width*height, mm) | 4330*1535*1885 | ||
Cargo Body (Length*width*height, mm) | 2500*1420*360 | ||
Wheelbase (mm) | 2615 | ||
Weight | Curb Weight (kg) | 900 | |
Gross Weight (kg) | 1950 | ||
Performance | Top speed (km/h) | 120 | |
Max. Gradeability (%) | ≥30 | ||
Min. ground clearance (mm) | 155 | ||
Min. Turning Diameter (m) | 9.8 | ||
Drive type | Rear wheel drive 4x2 | ||
Core Equipments Specifications of the 2WD gasoline 1 ton mini truck | |||
Engine | Engine Model | LJ465QR1E1 | |
Engine type | Inline four-cylinder gasoline engine, water cooling | ||
Displacement (L) | 0.998 | ||
Rated power/Rotate speed (kW/(r/min)) | 44/5600 | ||
Maximum torque/Rotate speed (N.m/(r/min)) | 85/(3500-4000) | ||
Fuel consumption (L/100km) | 7.2 | ||
Emission control | Euro IV + OBD | ||
Suspension | Front Type | Macpherson Strut Independent Suspension | |
Rear Type | Longitudinal leaf spring independent suspension | ||
Steering system | Pinion and-rack | ||
Fuel tank | capacity (L) | 40 | |
Wheel&Tire | Type & Size | Tire: 165/70R14, Spare Tyre with Steel Rim | |
Other standard configurations of the 2WD gasoline 1 ton mini truck | |||
Function | Radio + MP3 | Exterior | Metallic Paint |
High-Fidelity Loudhailer | High-mounted Lamp | ||
Manual adjustable rearview mirror | Over-roof antenna | ||
Manual window | Diamond crystal lights | ||
Steel wheel hubs | Interior | Gary interior decoration | |
Front Wiper, windscreen washer | Cloth Seats | ||
vacuum booster, two-circuit hydraulic brake, SABS | PVC mat |

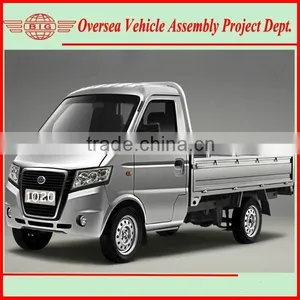

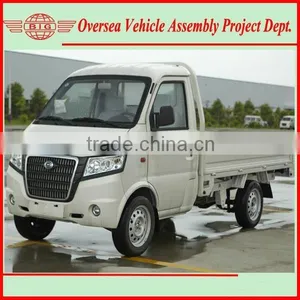

Pictures of this 2WD gasoline 1 ton mini truck:
Our company is focusing on the overseas automobile assembling project, including 2WD gasoline 1 ton mini truck, pickup, SUV, van, and bus, now let me introduce you the truck assembly line project as below:
Brief Introduction of this SKD/CKD 2WD gasoline 1 ton mini truck assembly line project in local (suitable for other countries, in which the customs duty difference between CBU and SKD / CKD is large, e.g. at least 30% or so):
1) save customs duty, this is the most important factor, usually, in most of the countries, the customs duty rate for the kd parts (knocked down auto parts) is much less than the rate for the complete vehicle, the government wants to protect or develop their own industry, for example, in Nigeria, the tax rate on CBU (complete vehicle) is 35%, while only 5% for SKD, and zero percentage for CKD, this is a very good policy;
2) save other taxes in your country for importing such a vehicle, for example, to exept the VAT for 10 years, etc.;
3) save shipping cost, for promote this 2WD gasoline 1 ton mini truck Assembly Line Project to the world, it can save the shipping cost, why? with CBU (complete built unit), one 40HQ container can load 5 units, but with KD parts, on average in bulk, 8-12 units can be loaded in a 40HQ container.
4) Earn your own Intangible Assets: with the 2WD gasoline 1 ton mini truck assembly line project, you can develop and have your own auto brand, logo and also enlarge to the neighboring countries by using the preferencial tariff policy among your communities.
What kind of partners we are looking for?
1) Investment Power Requirement: over 0.5-1 million USD;
2) Land & Workshop Requirement: over 3000 square meters land including 5000 square meter workshop at least;
3) Software Requirements: Good Automobile Sales Channel, Familiar with Automobile Industry and Its Business;
4) Hardware Requirements on the Import Tariff: the difference gap between auto spare part CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%, for example, import tariff on CBU is 35%, it must be 5% or zero on CKD.
-- 1 Ton Truck Assembly line Workshops:
What about After-Sales Service?
We propose and provide "REPAIR & MAINTENANCE" After-Sales Service:
1) Found a professional bus "Repair & Maintenance" service company to ensure the After-Sales Service;
2) 2WD gasoline 1 ton mini truck spare parts supply;
3) Driving & repairing training guidance;
4) Technical advisory and training;
5) Market data feedback and disposing;
6) The most important - Technology Support.
Brief Introduction of our "Big Group Company":
1. Our company is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. Anyone who is interested, contact us freely, looking forward to your cooperation.
2. Our main products:
1) Truck/Pickup (Single & Double Cabin; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
2) SUV (off-road vehicle: 5 / 7 seats; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
3) Van (7-8 seats, 9-15 seats, Gasoline & Diesel Engine; 4x2 drive; LHD & RHD);
4) Mini Moke (Gasoline & Electric, 4x2 drive, LHD & RHD);
5) Bus (Mini Bus, Middle bus, City Bus, and Long-Distance Bus);
6) Providing the assembling equipments and assembing technology of the above mentioned automobiles (pickup, SUV, Van, Moke and Bus) as well as the complete SKD/CKD parts.
Looking forward to your cooperation !!
Our Contact:
Lucky Peng (Ms.)
yingqingpeng at china-big dot com dot cn
Skype: chongqingbig
Whatsapp / Viber: 15223551381
Company Profile

We are an auto manufacturer from China searching for local cooperation partners for Auto assembly projects. Our cooperation models include turn-key project, joint venture and agreement cooperation, while our product line includes mini cars, mini trucks, pickups, SUVs, mini Moke jeeps, CNG buses (airport buses, new energy buses, electric-powered buses, and Hybrid buses) etc. We have established a lot of auto assembly factories in many countries, e.g. Syria, Egypt, Ghana, Nigeria, Angola, Bangladesh etc. Achieving a win-win by providing technology and/or investment is our core principle. Our main business includes two parts auto sales and set up overseas joint ventures factories with local partners.
Welcome to visit our factory and join us.
