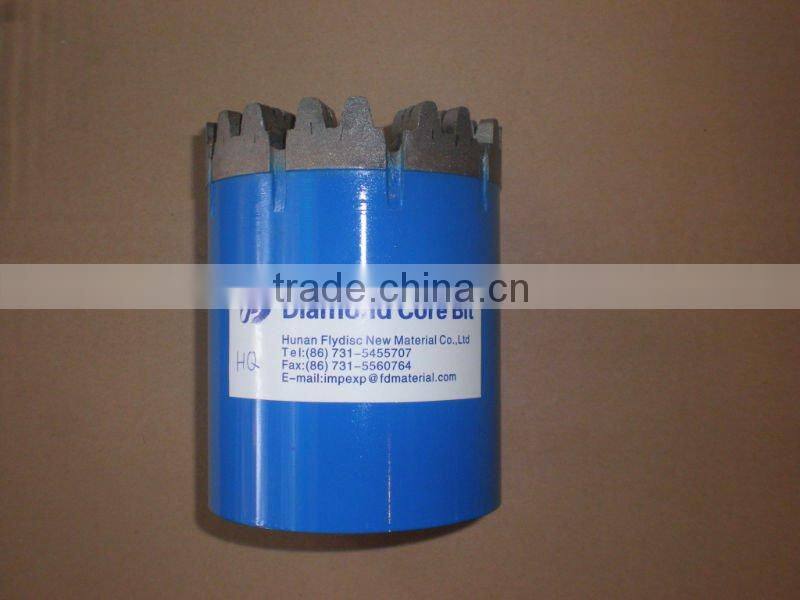

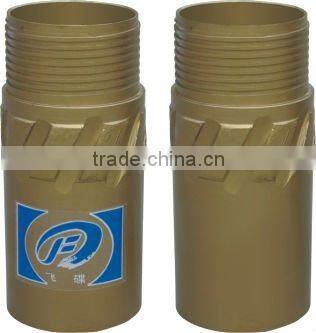

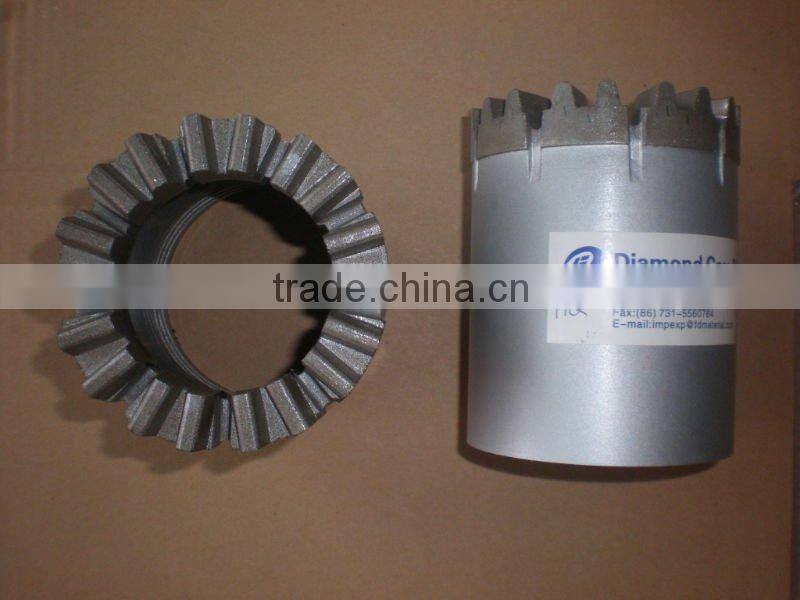

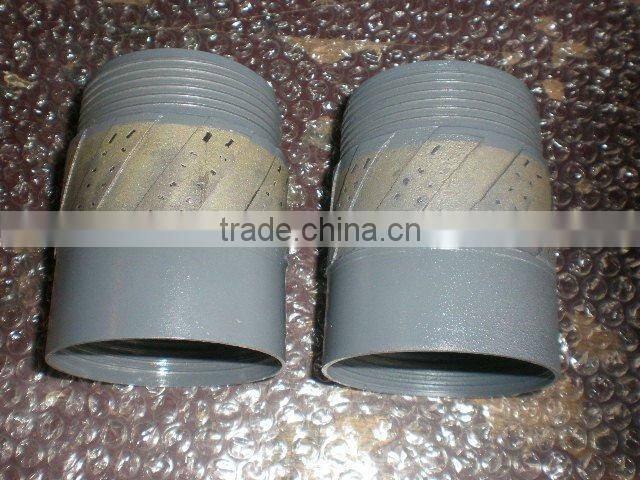

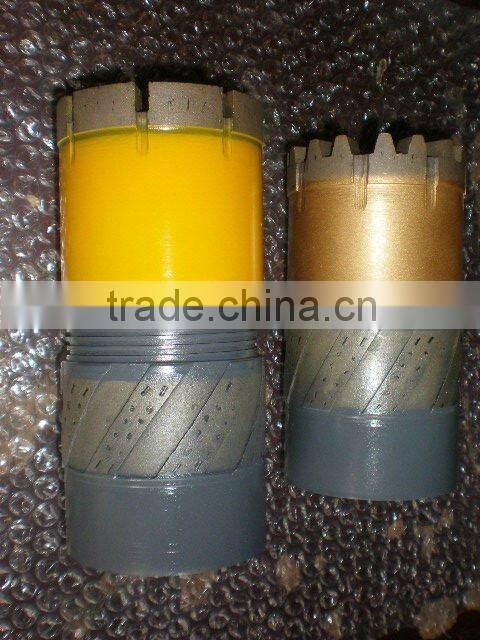

Diamond Core Drill Bit and Reaming Shells

Specifications

Diamond Core drill Bit and Reaming Shell:
46~250mm, core drill bit for exploring,soil investigation,
drill rock, take samples

Diamond core drill  Bit and Reaming Shell:



Company introduction:



1.50 years professional manufacture

2. Certificate: ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Company introduction:



1.50 years professional manufacture

2. Certificate: ISO9001:2000 and ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Size for Diamond Core Bits

Size: 46~325mm diamond core drill bits with national and international standard

Main exportation: AQ,BQ,NQ,HQ,PQ wire-line diamond core drill bits

ITEM	DIAMOND BIT					REAMING SHELL
"Q" Series Wireline	Size	Bit-set OD		Bit-set ID
		mm	inch	mm	inch	mm	inch
	AQ	47.6	1.88	26.97	1.06	48	1.89
	BQ	59.5	2.35	36.4	1.43	59.9	2.36
	NQ	75.3	2.97	47.6	1.88	75.7	2.98
	HQ	95.58	3.77	63.5	2.5	96	3.78
	PQ	122	4.8	84.96	3.35	122.6	4.83



Type for Diamond Core Bits :

Impregnated diamond drill bits; Natural surface-set diamond drill bits;

Electroplated diamond bits; Thin-wall diamond bits;

Concentric circular saw tooth diamond dril bits; Casing shoe bits

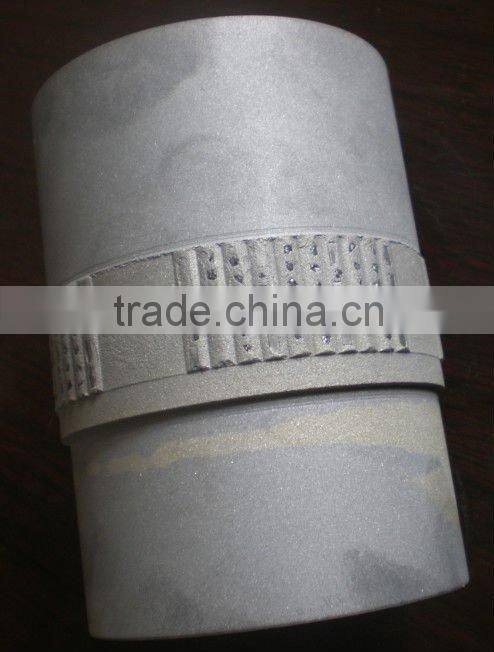

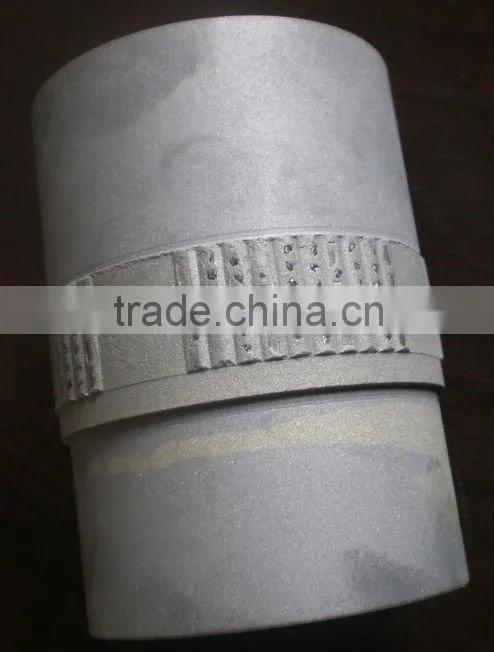

Electroplated Diamond Hole Reamer, Sintered Diamond Hole Reamer



diamond core bits Size Available:
1. A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48

2. B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW

3. N-Gauge Core Bits: NQ, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW

4. H-Gauge Core Bits: NQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

5. P- Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short

6. S- Gauge Core Bits: SWF-Long, SWF-Short

7. U- Gauge Core Bits: UWF-Long, UWF-Short

8. Z- Gauge Core Bits: ZWF-Long, ZWF-Short

9. T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,

T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

10. T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

11. T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

12. B Series(ISO3552-1) Metric Core Bits: B36, B46, B56, B65, B76, B86, B101, B116, B131, B146

13. Chinese Standard Metric Core Bits for Single Tube Core Barrels: φ36, φ46, φ56, φ59, φ75, φ91, φ110, φ130, φ160, φ170, φ219, φ275

14. Chinese Standard Metric Core Bits for Double Tube Core Barrels: φ56, φ59, φ75, φ91

15. Chinese Standard Metric Core Bits for Wireline Core Barrels: φ59, φ75, φ91



The custom core drill bits can be manufactured according to the samples or drawings.
