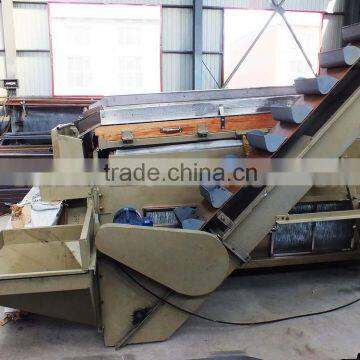

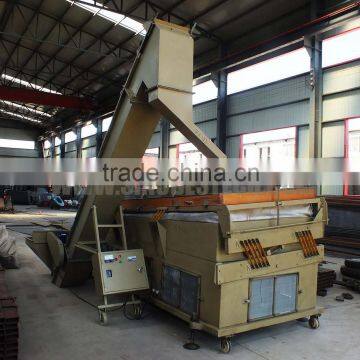

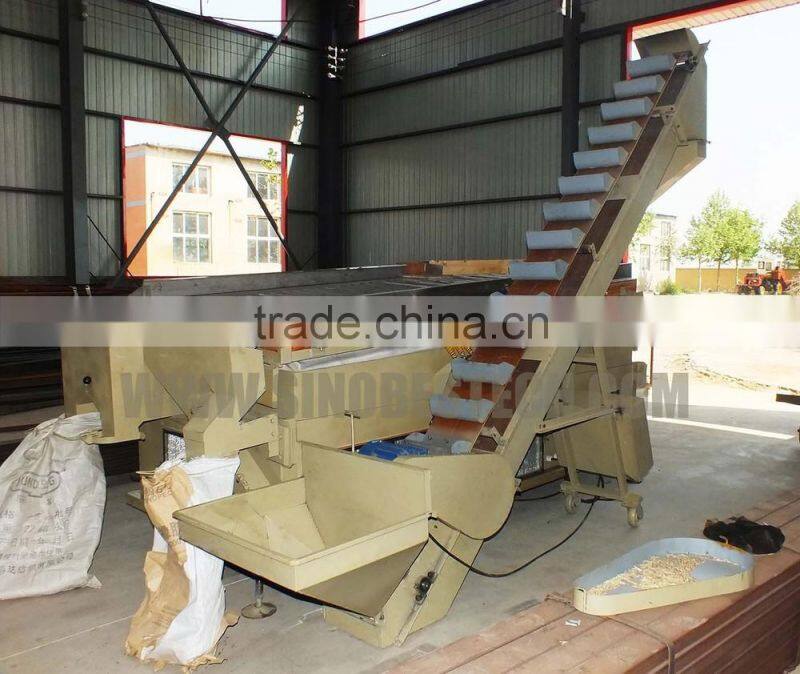

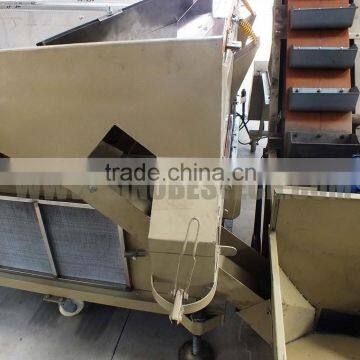

Density Separation Table for Paddy
Introduction

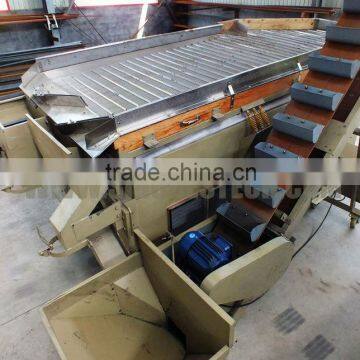

5XZ (barotropic) Density Separation Table for Paddy has a rectangular deck so that the product travels a longer distance resulting in separation of light and heavy particles. The product flows over the vibrating deck in which pressurized air is forced through causing the material to stratify according to its specific weight. The heavier particles travel to the higher level and the lighter particles travel to the lower level of the deck. The separator is world widely used in seed fine-cleaning company.
Feature
- Adopt multiply combined type underlying positive wind pressure system, pressure parameter wide adjustable range, good adjustable performance, strong applicability.
- Equip visible deducting cover, reduce effectively dust content of workshop, and also convenient to monitor material processing.
- Sieves frequency could be stepless adjust and real-time display.
- Main parameter is widely adjustable range, strong applicability.
- Equip safety guard for each moving parts to ensure good safety protection.
Model | Capacity (T/H) | Power (KW) | Dimensions(MM) (L×W×H) | Dimensions(MM) (L×W) | Weight (KG) | Remark |
5XZ-3 | 3 | 9 | 3400×1600×1450 | 2860×1320 | 2050 | Barotropic Type |
5XZ-5 | 5 | 13.2 | 3900×1700×1750 | 3360×1420 | 2350 | |
5XZ-12 | 10 | 15 | 4300×1960×2500 | 3990×1550 | 2550 |
