fix led advertising display with double sides
- 10 Square Meter / Square Meters per Month
- FOB SHENZHEN
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Haisheng | Model Number: | HSGD-O |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 10.12.12.5.14.16.18.20.25.31.25mm |
Packaging Details
flight case and wooden case
Product Description
Specifications
1.fix led advertising display with two sides2.5500nit-7500nits
3.iron and aluminum
4.2 years warranty
Model: P16 outdoor full color screen,video wall,led billboard,led gaint TV for advertising,commercial board
P16-1R1G1B/2R1G1B
Haisheng
Outdoor full color led display products features:
1) Based on the customized design,our outdoor display can be custom-bulit into fit and size.They are ideal for entertainment,sports,advertising,concerts in both of rental and fixed installation.
2) The outdoor LED display is suitable for long viewing distance application.It includes P10,P12,P16,P20,and P25.
With our outdoor display you can get clearer resolved images,Colors are appeared brighter and contrast is more strengthen.
3] Outdoor advertising screen refers to the red, green and blue LED lights composition, white balance, and can display 16,777,216 colors are capable of real-time, simultaneous display of various information, such as two-dimensional or three-dimensional animation, video, TV, DVD and on-site a variety of live video content. Outdoor advertising display outdoor display of the most widely used one type, characterized by large angle, high brightness, colorful and attractive, long life and energy-saving and so on, the display can be synchronized with the computer display Chinese characters, English text and graphics; video display screen using micro-computer control, graphics, images, and Mao, to real-time, synchronization, clear message to the broadcast of a variety of information dissemination, but also shows two-dimensional, three-dimensional animation, video, TV, VCD programs and on-site live. LED screen display colorful, three-dimensional sense of strong, static, such as painting, moving, such as movies.
LED
led brand | opto and silan |
red | 1100mcd/ 620nm-621nm |
green | 2300mcd/520nm-521nm |
blue | 500mcd/470nm-471nm |

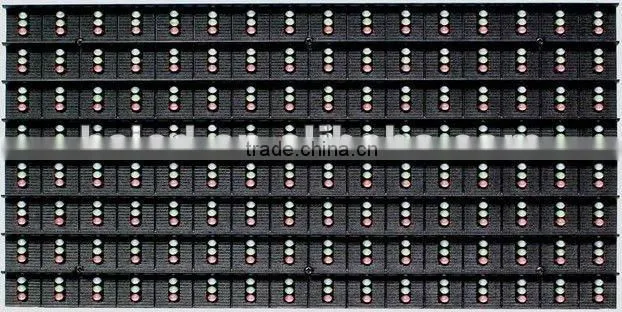

Module
led module size | 256mm*128mm |
Moudle Resolution(W×H) | 16dotsl*8dots |
drive mode | static scanning |
pixel density | 3906dots/sq.m |
Cabinet
Technical Specification(P16mm):
Display and control feature | Structure feature | ||
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 16 mm | Module size | 256*128 |
Pixel composing | 1R1G1B | Display resolution/module | 16 dots*8dots |
Wavelength (R) | 620±1 | Standard cabinet size | 1024 mm*768 mm |
Wavelength (G) | 520±1 | Weight per sqm | 65 Kg/sqm |
Wavelength (B) | 470±1 | Protection classification | IP65 |
Wave Angle (H) | 140°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
LED package | DIP 346 | Cabinet Material | Iron/Aluminum |
Density per sqm | 10,000 pixel | Working power | |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥5500 | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 750W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
Refresh | 480 Hz | Short circuit protection | Yes |
Driving method | 1/4 Constant Driving | Led Lamp type | Nichia/Cree/Axt/Silan/Taiwan |
Control mode | synchronous | Working environment | |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --20~50 |
lifetime | 100,000 hours | Working Humidity | 10~90% |
display aging and test
certification

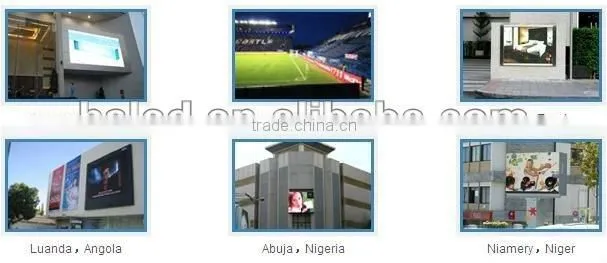

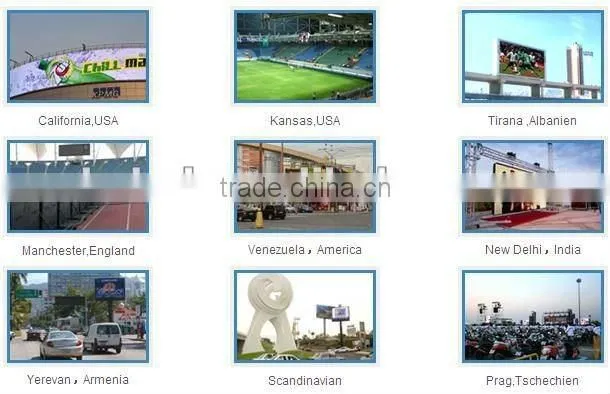

our case
Company Profile
ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.
Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.
Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.
At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.
With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
