P10-B Outdoor SMD 1/4 Scan led screen display

FOB Price

USD $500.00 - $500.00 / Square Meter

10 Square Meters(Min.Order)

Supply Ability 3000 Square Meter / Square Meters per Month
Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Model Number:	OFSC10-B	Usage:	Outdoor
Tube Chip Color:	Full Color	Display Function:	Video	Pixels:	10mm
Screen Dimension:	Customized Size

Packaging Details

special flightcase or woodencase

Product Description

P10-B Outdoor SMD 1/4 Scan led screen display

Pixel Pitch	10mm
Type	SMD3535
Arrangement	1R1G1B
Brand	Epistar
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)

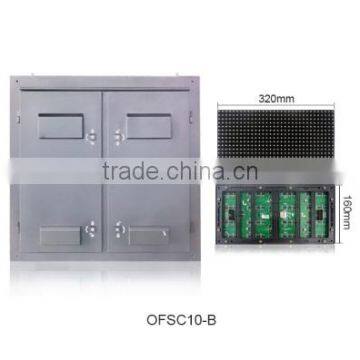

Module Resolution	32×16=512(Dots)
Module Size	320×160mm
Module Weight	0.5kg
Pixel Density	10000 Dots/sqm
Cabinet Resolution	96×96=9216(Dots)
Cabinet Dimension(WHD)	960×960×175mm
Module Quanty /Cabinet	3×6=18(Pcs)
Cabinets Material	Steel
Cabinet Weight	40kg
Brightness	>5600cd/sqm
Viewing Angle	120(Horizontal),120(Vertical)
Nearest Viewing Distance	13m
Power Consumption (Max)	950 w/sqm
Power Consumption (Average)	250 w/sqm
Display Function	Text, Graphics, Video
Refresh Rate	>1800Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC110-220V±10%, 50/60Hz
Output Voltage	DC-5V, 40A/60A/80A
Color Grayscale	16bit
Gray Scale per Color	65536 level
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures)	5000 hours
Life-span	100,000 hours
Protection Level(front/back)	IP66/IP54
Malfunction Dot Rate	less than 0.0001
Working Temperature	-30^oC~50^oC
Humidity	15%~85%
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card, Receiving HUB
Software	LED Studio ( HSTV-linsn )
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 7, XP and Vista
Communication Type	Net cable; 3G, WIFI(Sold separately)
Certificate	CE, ROHS, FCC, ISO9001, TUV

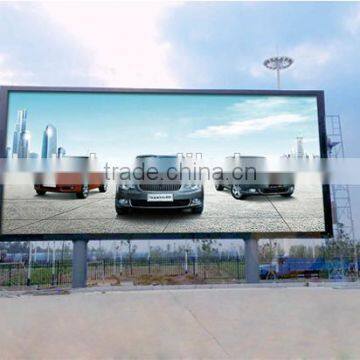

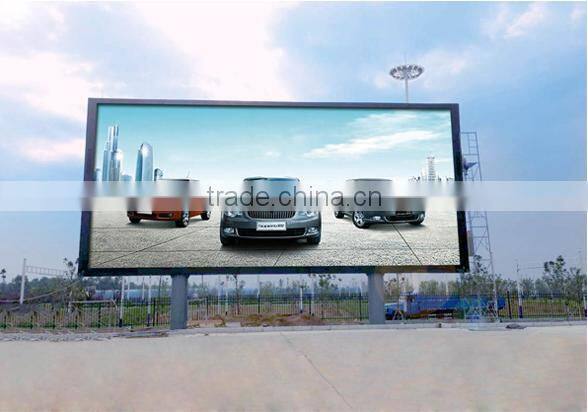

Large Outdoor LED Advertising Display

The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

LED advertising display

Pixel pitch : 10mm Pixel Configuration: SMD

Brightness: over 5600cd/sqm

Refresh Rate :over 1800Hz

Drive Mode: 1/4 Scan

Panel dimension: 960*960mm

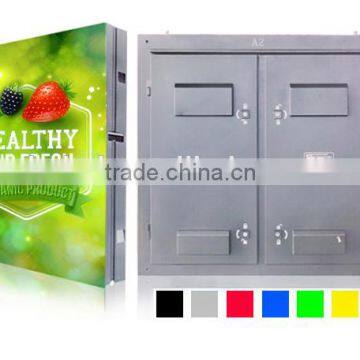

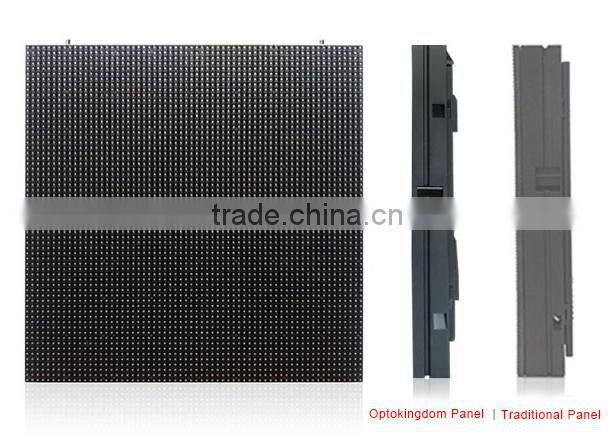

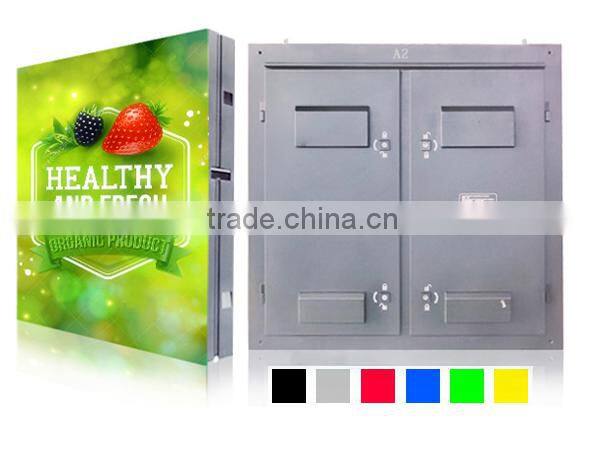

Unique Design - Easy to Install & Transport

The cabinet of P10 LED Display Price features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

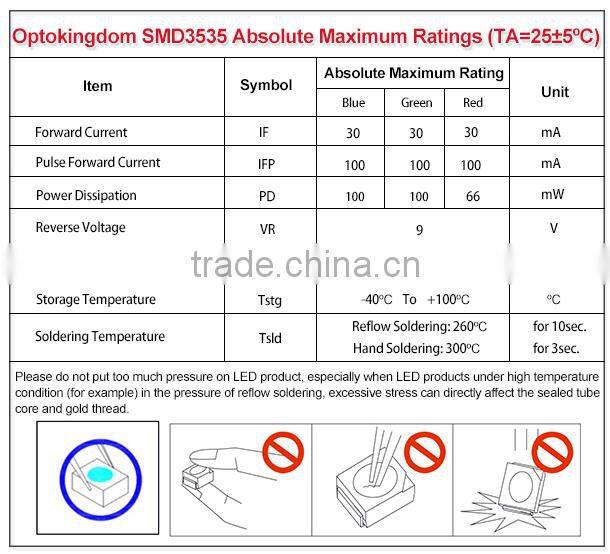

IFP Conditions

One: 1/10 Duty Cycle.

Two: 0.1 msec Pulse Width.

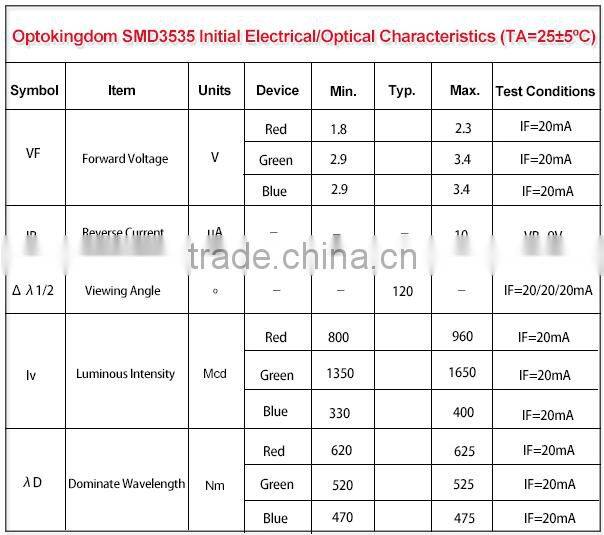

Electrical / Optical characteristics

One: Tolerance of measurement of Vf is ±0.05 V.

Two: Luminous Intensity Measurement allowance is ± 10%.

Three: Color Coordinates Measurement allowance is ± 1nm.

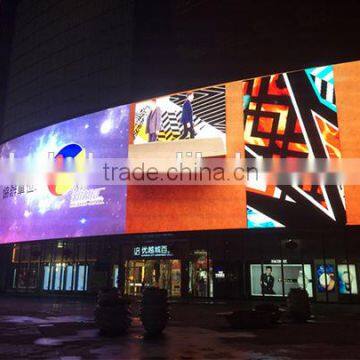

Outstanding Outdoor Performance

The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.

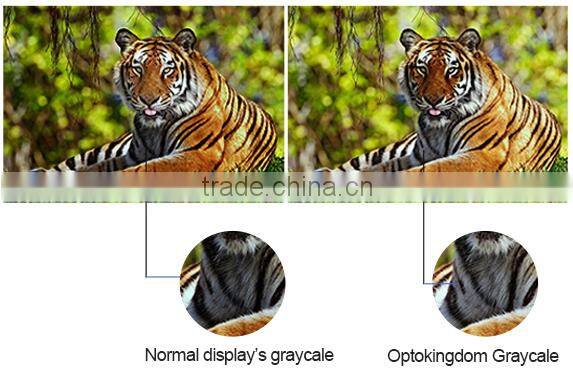

High Gray Scale - Better Picture

The P10 LED Display Price is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.

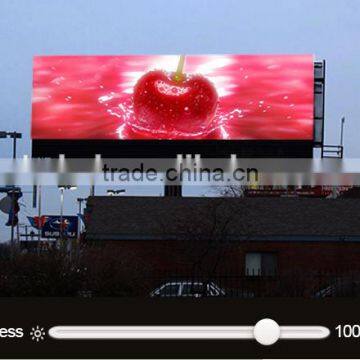

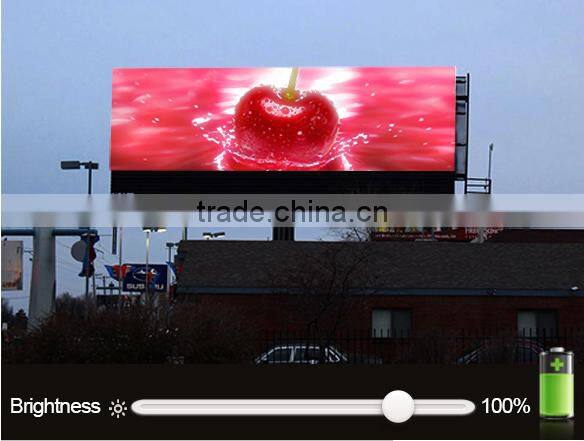

High Brightness, Better Quality

Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the P10 LED Display Price ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

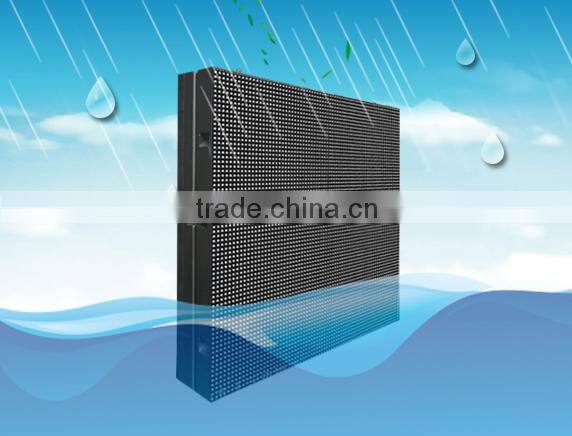

High IP Rating IP66 - Safe and Reliable

The special waterproof design of P10 LED Display Price protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.

High Refresh Rate

The P10 LED Display Price is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

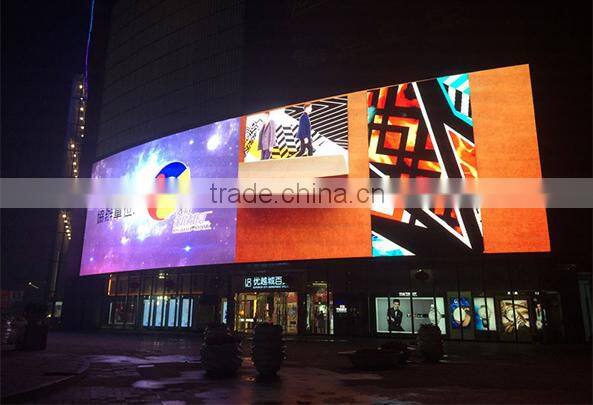

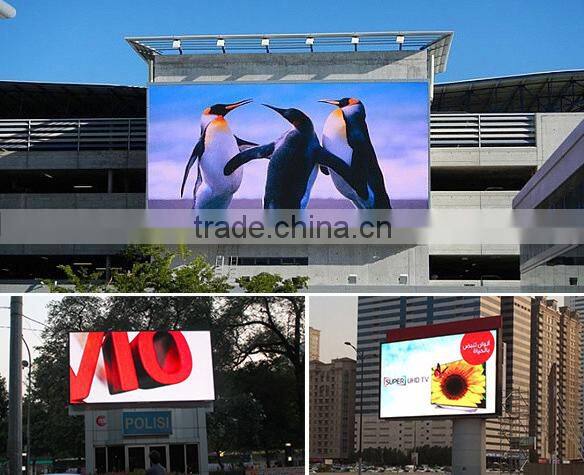

Application

The P10 LED Display Price can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.

Our Company Building

Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.

Best Quality Guaranteed

Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality

Company Profile

Shenzhen Haisheng Led Co., Ltd.

ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.

Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.

Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.

At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.

With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
