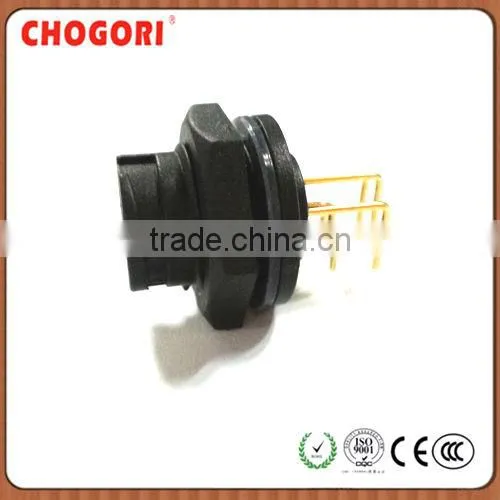

Standard 6pin PCB 90 degree type panel mount
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHOGORI | |
| Model Number | 22006525-01 | Type | Other, Connector | |
| Application | Power | Gender | Female |
Product Description
Specifications
1. Standard series, panel mount2. 2p to 12p for 10A to 2A
3. Assembly and molding
4. IP67, IP68 waterproof
5. CE/UL/ISO/TUL
Standard series circular waterproof connector
1. Standard size provides universal application and good looking, used for varies industries
2. Screw, Lock bayonet and Push lock mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
Material | |
Connector body: | Nylon + GF UL94V-0 1/16" |
Plastic: | PA66 &UV resistance |
Contact pin: | Brass(gold-plated 4 u" -20u") |
Sealing | Silica gel |
ROHS,CE Approved | |
Property | |
Contact Resistance | <10mΩ |
Insulation Resistance | ≥100 MΩ at DC500V |
Breakdown Voltage | ≥1KV/1Minute |
Temperature Rating | "-45°C~+105°C |
Waterproof Rating | IP67&IP68 |
Durability(Plug and Insert) | ≥ 3K Plug/Unplug Cycles |
