USB waterproof connector

Name: USB waterproof connector
Brand: Chogori
Availability: InStock

FOB Price

USD $1 - $5 / Piece

500 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Chogori
Model Number	34000000-01	Type	USB
Application	Power	Gender	Male

Product Description

Specifications

A. The waterproof rating is IP67
B. 3 types can be choose: screw type, lock bayonet type, push lock type
C. UL,CE,ROHS

The detail description of Chogori USB waterproof connector

The brief introduction of chogori large series waterproof connector

the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
we have 3 types :screw, lock bayonet, push lock. we can use the cable provided by customers, and we also can purchase cable for our customers.
The larg USB advantage : Adopt separate design, increase creep distance

The specification of usb waterproof connector

Material	Connector Body: ABS/PBT/PA66 UL94V-0 1/8” Contact: Brass 4U”-20U” Gold plated
Temperature Range	-45°C-105°C
Waterproof Rating	IP67
Durability	3000 Cycles
Flame Test	UL/CAS FT4 Flame Test
Thermal Shock	5 Cycles at -45°C-105°C
Salt Spray	48 Hours

Connector Size	large
Rate Voltage	125V
Rated Current	1.5A
Wire Gauge	24AWG
Connector Type	usb
Connector Gender	male
Assembly Style	field installable 180°
Mating Style	lock bayonet

The application of our connector

Application	Medical equipment
	Outdoor LED display
	Streetlight
	Wireless communication
	Marine electron
	Actuating motor

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)

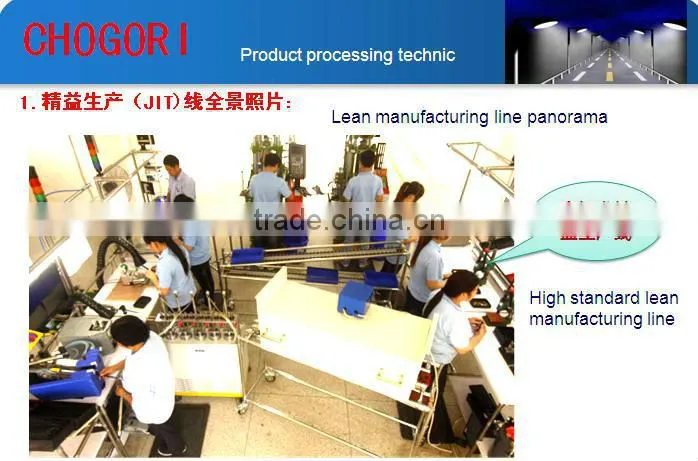

The test equipment of our company

The material of our connector
