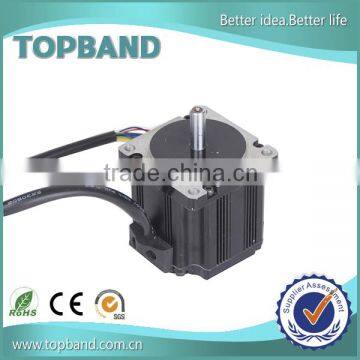

60mm 24V brushless bldc motor for Centrifuge
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Speed BLDC Motor 36V Brushless Motor
-
Hot selling high torque brushless dc motor bldc motor for electric vehicle
-
Low cost 100w brushless dc motor electric motor for bicycle
-
Low vibration 36v 120w small powerful electric car motor kit
-
86mm 36v bldc motor brushless electric bicycle motor
-
86mm Customized 36v electric bicycle bldc motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Topband | |
| Model Number | BL6060 | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | |
| Certification | CCC, CE, ROHS, UL, VDE | Type | Other, brushless motor | |
| Torque | 70mN.m | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Waterproof | |
| Speed(RPM) | 7000RPM | Continuous Current(A) | 0.6A | |
| Output Power | 70W | Voltage(V) | 24V | |
| Efficiency | Other, 77 |
Product Description
60mm 24V brushless bldc motor for Centrifuge
| BL6060 | UNIT | ’001 | ‘002 | ’003 |
| Rated voltage | V/DC | 24 | 24 | 48 |
| Rated speed | RPM | 3100 | 10000 | 7300 |
| No load speed | RPM | 3600 | 11000 | 8000 |
| No load current | A | 0.5 | 2.4 | 0.65 |
| Rated current | A | 3.5 | 5.3 | 2.3 |
| Rated torque | mNm | 200 | 60 | 97 |
| Max efficiency | % | 75 | 65 | 77 |
| Resistance phase to phase | OHM | 0.49 | 0.12 | 0.65 |
| Torque constant | mNm/A | 63 | 20 | 57 |
| Speed constant | rpm/V | 150 | 458 | 165 |
OUR MOTOR FEATURES
* Precise long life motors
* High efficiency and high torque in a small diameter
* Sizes ranges from 16mm to 35mm diameter
* outpur power is from 1.0 to 90 watts
* coreless rotor means no cogging or preferred rotor position,no iron losses
* Low starting voltage,low rotor intertia,low starting voltage
* Custom systems available from design to production
* High precision gearboxes available in all sizes
* Controller available foe all brushless motor series
APPLICATIONS
* Medical equipment-- Dental tools,tooth washing,tooth drilling
* Instrumentation-- Laser leveling devices,precision balances and gas analyzing device
* security equipment-- Air sampling, camera platforms and electronic lock
* Machinery & Equipment-- Robot,electric tools,miniature pumps,tattoo machine,grinding machine,golf cart
OUR COMPANY INFORMATION
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and Controller in China, which is established in 1996. Motor division is focusing on coreless motor, general BLDC motor RC brushless motor and brushless dc motor controller.Topband was listed in Shenzhen stock change on July 2007, became the first listed company in intellectual control in China, the stock code 002139.
