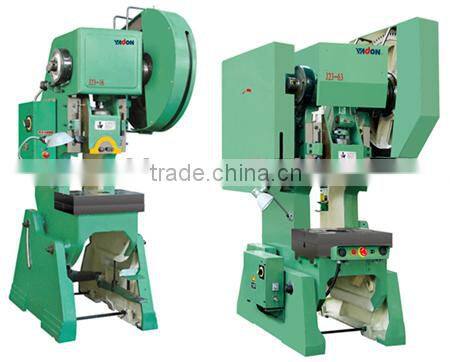

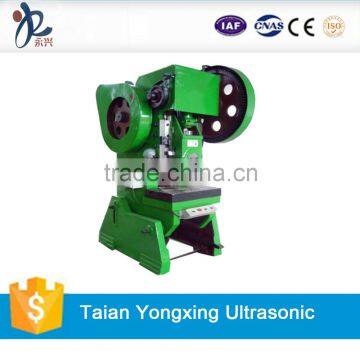

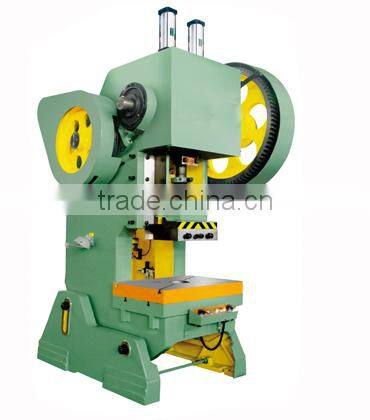

frame inclinable power press,punching machine
Performance Features:
1)The machine body adopts foundry technology and crankshaft traverse-placing structure. The machine is designed into compact structure.
2)The machine has a rigidity rotating-button clutch which is easy structured, convenient to operate and maintenance.
3) Gear-driving, steady performance, tiny shock and low noises.
4) Shear plate type overload protector.
5)The machine can tilt 25° for material-withdrawing to improve productivity.
Technical Parameter:
Technical data
Model |
Unit |
J23-25 |
J23-40 |
J23-80 |
Nominal Pressure | KN | 250 | 400 | 800 |
Nominal Stroke | mm | 5 | 6 | 9 |
Slider Stroke | mm | 70 | 80 | 150 |
Stroke Numbers | times/min | 55 | 50 | 45 |
Maximum Shut Height | mm | 260 | 295 | 380 |
Shut Height Regulation | mm | 75 | 80 | 85 |
Distance from Slider Center to Frame | mm | 190 | 220 | 290 |
Columns Distance | mm | 260 | 305 | 385 |
Slider Bottom Size ( front to back × left to right ) | mm | 185×210 | 250×380 | 350×370 |
Mold Handle Hole ( diameter × depth ) | mm | Φ40×60 | Φ50×75 | Φ50×80 |
Working Table Dimension ( front to back × left to right ) | mm | 360×560 | 420×630 | 540×800 |
Working Table Pad Dimension ( thickness × aperture ) | mm | 65×Φ120 | 80×Φ160 | 100×Φ200 |
Engine Power | KW | 3 | 5.5 | 7.5 |
Dimension ( front to back × left to right × height ) | mm | 1256×950×2025 | 1137×1605×2325 | 1895×1360×2680 |
Weight | KG | 1800 | 3600 | 5800 |
