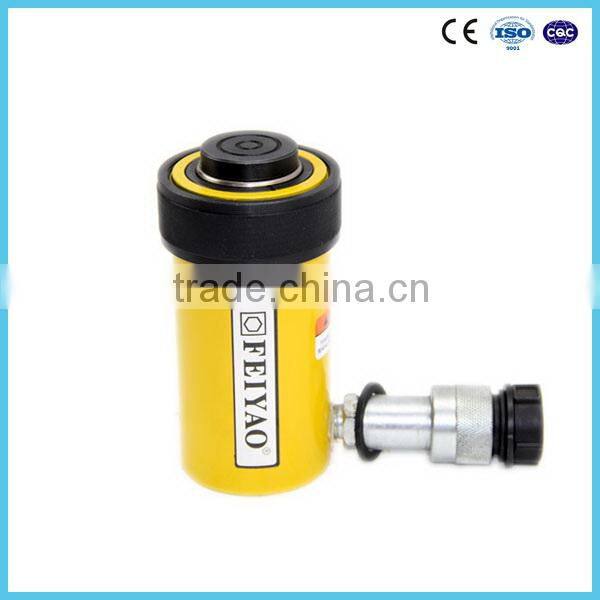

RC series single acting hydraulic jack spring return

Specifications

hydraulic jack spring return
1.CE certificate
2.Capacity: 5-100ton
3.High quality, good price
4.Factory supply directly

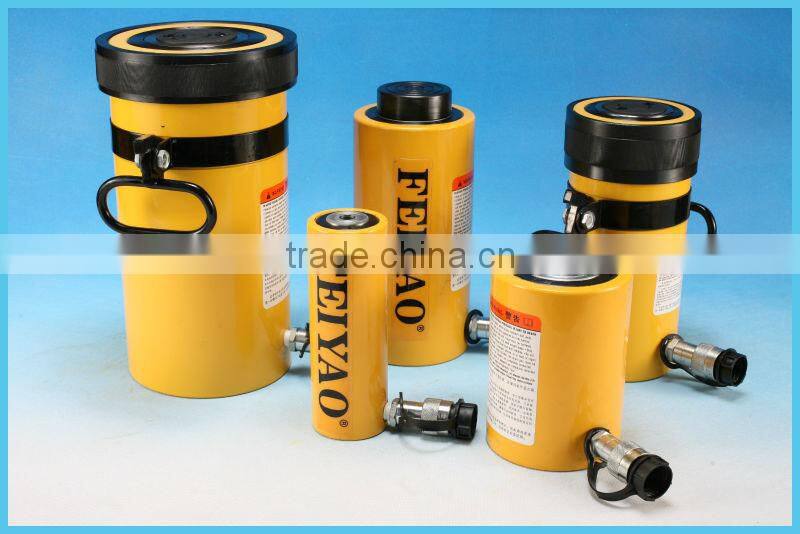

RC series single acting hydraulic jack spring return

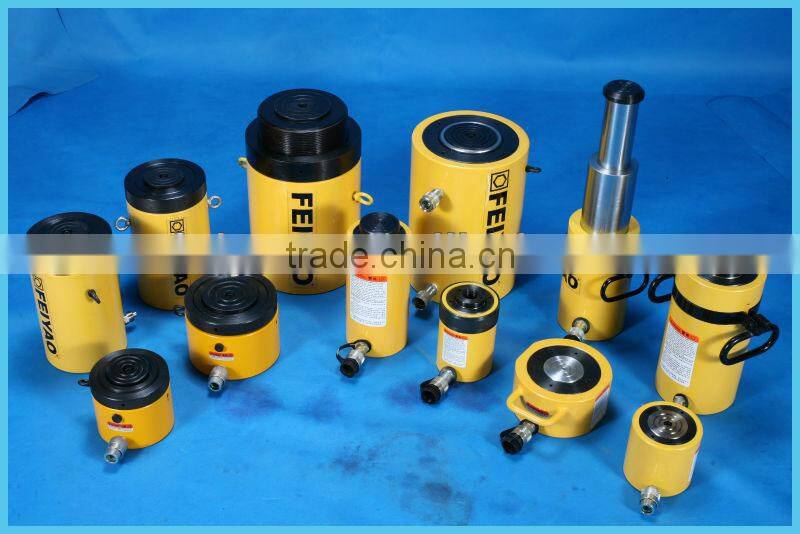

Feiyao general purpose hydraulic jack are available in hundreds of different mechanical or hydraulic cylinder configurations. Whatever the industrial application; lifting, pushing, pulling and available in range of force capacities, stroke lengths or size restrictions. Single acting, hollow plunger, or low height, you can be sure that Feiyao has the hydraulic jack to suit your high force application.



Features

1. Heavy-duty return spring for last retraction

2.External access to fasteners requires only standard shop tools for simplified maintenance

3.Plunger wiper reduces contamination, extending cylinder life

4.Base and plunger made from high-strengh alloy steel for durability

5.Collar threads, plunger threads and base mounting holes enable easy fixturing on most models

6.Baked enamel finish for increased corrosion resistance

7.Design allows cylinder to be used in all positions

8.CR-400 coupler and dust cap included on all models

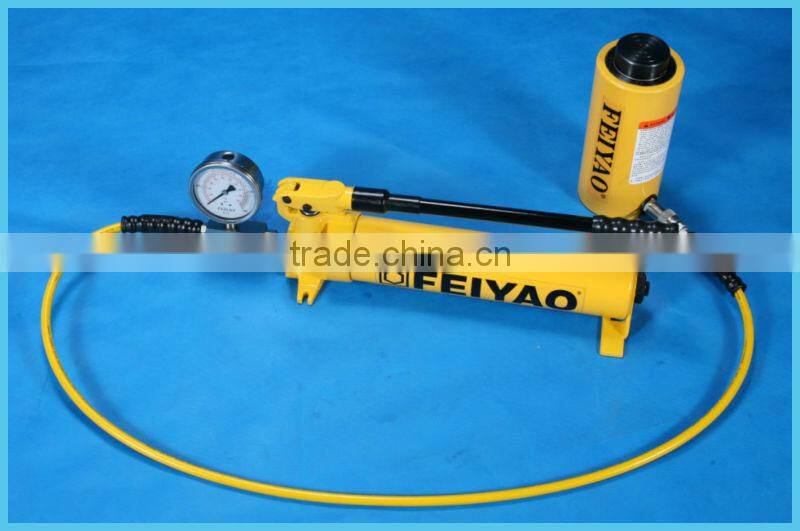

Typical application

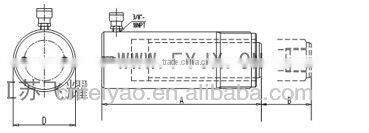

Parameter information

Model Number	Capacity @ 700bar	Stroke	Effective Area	Oil Capacity	Collapsed Height	Out Diameter	Weight
	ton(KN)	mm	cm2	cm3	mm	mm	kg
FY-RC-50	5(45)	16	6.5	10	41	59	1.0
FY-RC-51		25	6.5	16	110	38	1.0
FY-RC-53		76	6.5	49	165	38	1.5
FY-RC-55		127	6.5	81	216	38	1.9
FY-RC-57		178	6.5	114	273	38	2.4
FY-RC-59		232	6.5	148	324	38	2.8
FY-RC-101	10(101)	25	14.5	36	90	57	1.8
FY-RC-102		54	14.5	78	121	57	2.3
FY-RC-104		105	14.5	151	171	57	3.3
FY-RC-106		156	14.5	225	248	57	4.4
FY-RC-108		203	14.5	292	298	57	5.4
FY-RC-1010		257	14.5	370	349	57	6.4
FY-RC-1012		305	14.5	439	400	57	6.8
FY-RC-1014		356	14.5	513	451	57	8.2
FY-RC-151	15(142)	25	20.3	51	124	70	3.3
FY-RC-152		51	20.3	104	149	70	4.1
FY-RC-154		102	20.3	207	200	70	5.0
FY-RC-156		152	20.3	309	272	70	6.8
FY-RC-158		203	20.3	412	322	70	8.2
FY-RC-1510		254	20.3	516	373	70	9.5
FY-RC-1512		305	20.3	619	424	70	10.9
FY-RC-1514		356	20.3	723	475	70	11.8
FY-RC-251	25(232)	25	33.2	83	140	86	5.9
FY-RC-252		51	33.2	169	165	86	6.4
FY-RC-254		102	33.2	339	216	86	8.2
FY-RC-256		159	33.2	528	273	86	10.0
FY-RC-258		210	33.2	697	324	86	12.3
FY-RC-2510		260	33.2	863	375	86	14.1
FY-RC-2512		311	33.2	1033	425	86	16.3
FY-RC-2514		362	33.2	1202	476	86	17.7
FY-RC-308	30(295)	210	42.1	880	387	102	18.1
FY-RC-502	50(498)	51	71.2	364	176	127	15.0
FY-RC-504		102	71.2	727	227	127	19.1
FY-RC-506		159	71.2	1134	283	127	23.2
FY-RC-5013		337	71.2	2403	461	127	37.7
FY-RC-756	75(718)	156	102.6	1601	286	146	29.5
FY-RC-7513		334	102.6	3427	492	146	59.0
FY-RC-1006	100(933)	168	133.3	2239	357	178	59
FY-RC-10010		260	133.3	3466	449	178	72.6



Brief introduction of FEIYAO

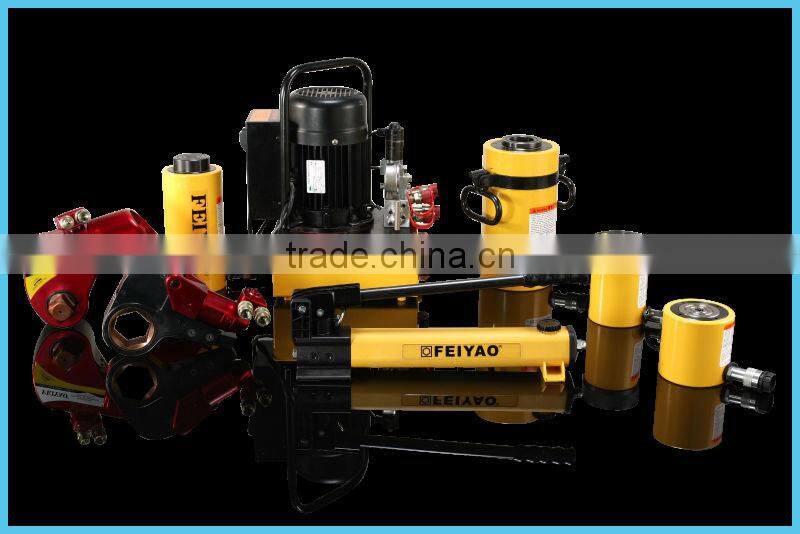

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

We warmly welcome all overseas customers to talk with us about business or other cooperations.

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
