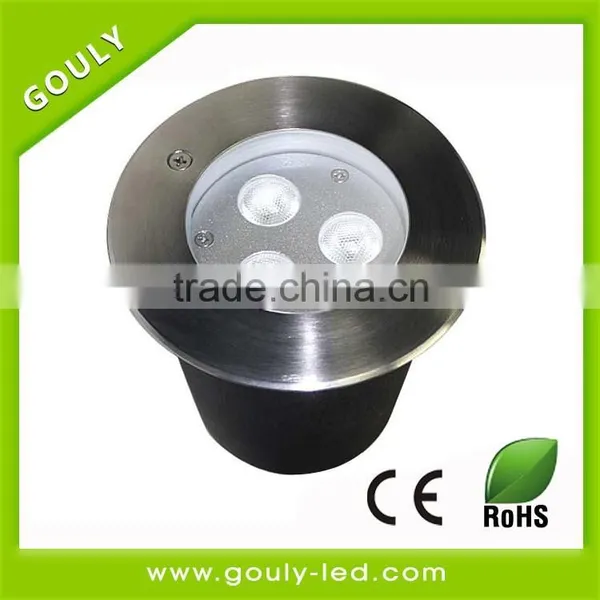

3W 9W outdoor led inground lights underground led light CE ROHS

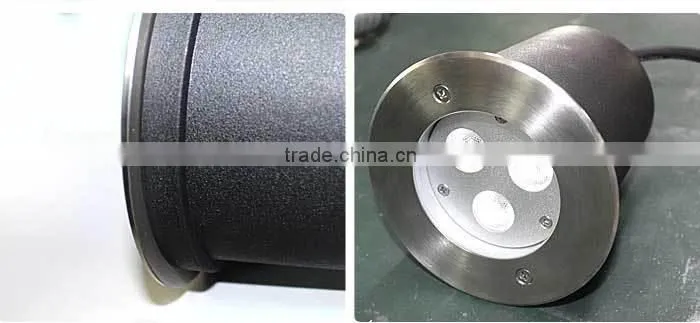

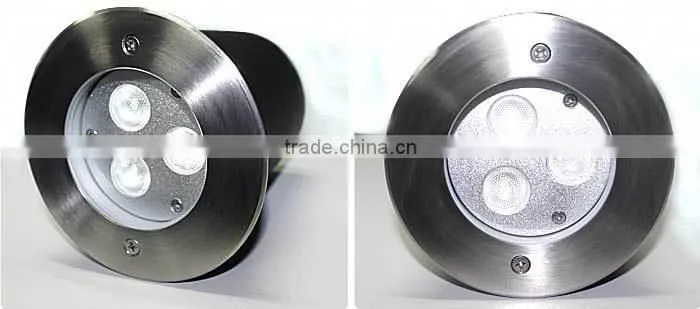

 round led inground light

1.Introduction

The Inground lights adpots High power LED as the light sourse, there are many advantages when compare to the normal inground light, such as low energy-saving, environment protection, high brightness, anti-shork, anti-vibration, purity color, and long lifespan, about 50,000 hours.

2.Application

With IP67 rank and-20°C~45°C working temperature,the inground lights can adapt to a variety of indoor and outdoor temperature, humidity difference. They can be widely used in decoration of the buildings, stage, ancient buildings, shopping malls, hotel, cultural place and so on.

3.Technical parameters

3*3W-LED series

Dimension diagram

3*1W&3*3W (Round flat cover) (IN3X1W, IN3X3W)

4.Introduction

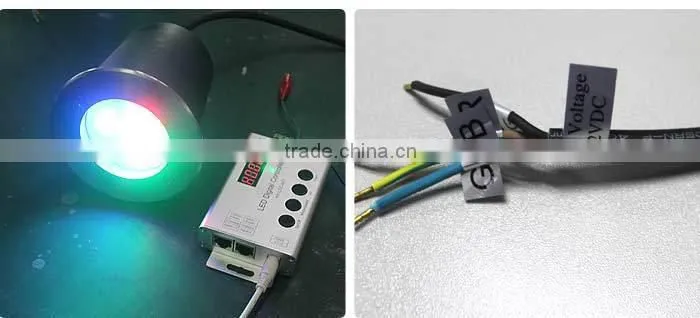

  Made up of RED, GREEN and BLUE high power LED, the inground lights can realize more than 16,770,000 kinds of color output, and with great effect and colorful features. It adopts wires with 4pin connectors, and work with 4-wire and 3-loop controller,which can achieve Gradual Change, jumping and many good light effect.

5.Application

  With IP67 rank and-20°C~45°C working temperature,the inground lights can adapt to a variety of indoor and outdoor temperature, humidity difference. They can be widely used in decoration of the buildings, stage, ancient buildings, shopping malls, hotel, cultural place and so on.

8.The connection way

Illustration of the connection

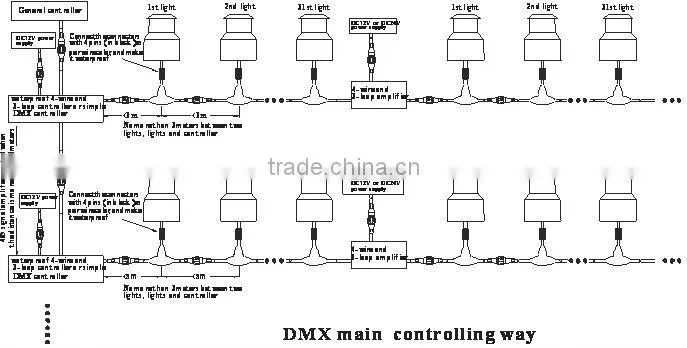

Method One : DMX controller as main controller ( take 3*3W RGBinground light as example )

lThe length of The lamp between the power supply , The length of the lamp between the lamp should not be more than 3meter.

lThe total length of the T wire should not be over 100meter.

9.Controlling way

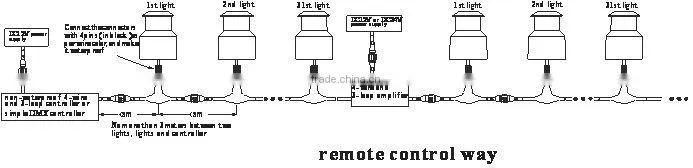

The inground lights should be work with 4-wire and 3-loop controller,Simple DMX controller ( Please refer to the instruction for operation ) With a remote controller, 4-wire and 3-loop controller can be chose single mode optical efficiency, total 13 kinds, and also it can stteing the address of the controller to accept DMX signal and control the brightness. However, Controller drive capability is limited,eg. The max data if the 12V 10A remote RGB controller can drive is 120W(=12V*10A)inground lights, and take 3.8W( max power ) 1*3W RGBinground light as another example, the controller just can drive 31pcs(120/3.8≈31). The maximum number of connections power of other inground lights calculated in this way.RGB amplifiers are needed when you want to connect more lights together.

10.Option of the power supply

The total power of all the lights drived by RGB controller multiplied by 1.35, and the data you get is the power of the power supply needed.

11.Attention

Please follow the "use environment" requirements;

The inground lights work with 4-wire and 3-loop controller or Simple DMX controller, could not work without RGB controller;

Please choose the Adequate power supply according to the total power if the lights;

Three addresses for each RGB controller, the first simple DMX controller or 4-wire and 3-loop controller added by three is the address of next simple DMX controller or 4-wire and 3-loop controller;

The inground lights series connected with the same 4-wire and 3-loop controller or Simple DMX controller are with the same change effect;

The Maximum address of the 4-wire and 3-loop controller or Simple DMX controller is 510;

Please follow the illustration of conection when connect many lights;

To ensure the good control, please add amplifiers when the distance is more than 100meters.

12.Installation Guide

lMake sure the power supply of housing to connect ground;

lThe power and signal output wire of the last light in each loop connected waterproof cap;

lMake sure the controller and power supply to work in ventilated, dry environment;

lPlease make sure no short-circuit before using, or the components may be burned

attention:

1. Power must be off before installing or removing;

2. Please replaced by new one when light body is damaged;
