YK Series Circular Vibrating Screen With ISO9001 From OEM Manufacture

Specifications

1.Capacity:40-1200t/h
2.Max feeding size:500mm
3.Little electricity

YK Series Circular Vibrating Screen With ISO9001 From OEM Manufacture

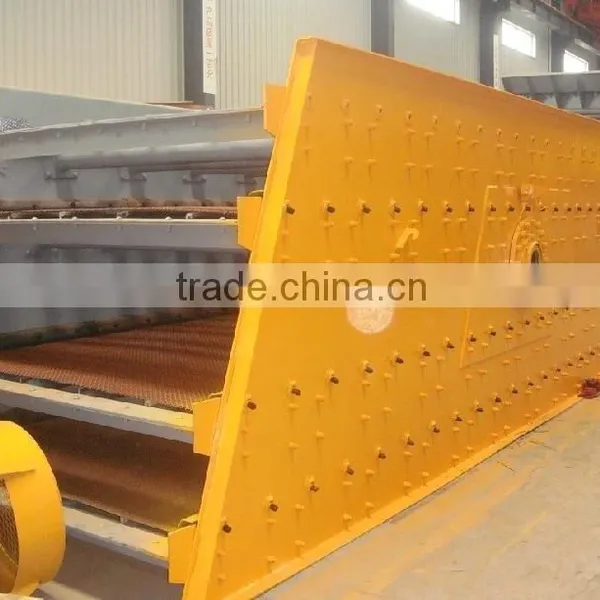

YK Series Circular Vibrating Screen Overview



The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.



Circular Vibrating Screen Features



1. Ring groove rivet connection, advanced structure and excellent durability.

2. Designed with a simple structure, with eccentric block as excitation, strong vibrating force, low electricity consumption and low noise.

3. Uses small amplitude, high frequency and big angle structure which enables it to have high screening efficiency and great handling capacity.

4. Uses large clearance bearings and is lubricated with thin oil. It causes little noise and has a long service life.



Circular Vibrating Screen Application



It is widely used for grading and screening materials in the following fields: mines, quarries, aggregate, high-way construction, building materials, chemical industry, metallurgy and so on.





Circular Vibrating Screen Specification



Type	Sieving size (w*l)	Sieve Surface Area (m2)	Double Amplitude (mm)	Vibrating Frequency	Feeding Size(mm)	Handling Capacity (m3/h)	Motor Power (kw)	Weight (t)
				(r/min)
YK1245	1200*4500	5.4	6-8	16-17	0-25	40-150	11	3.2
2YK1245	1200*4500	5.4	6-8	16-17	0-200	40-150	11	4.8
3YK1245	1200*4500	5.4	6-8	16-17	0-150	40-120	15	5.5
YK1545	1500*4500	6.75	6-8	16-17	0-25	100-180	11	4.8
2YK1545	1500*4500	6.75	6-8	16-17	0-25	100-180	15	5.8
3YK1545	1500*4500	6.75	6-8	16-17	0-25	100-180	18.5	6.2
4YK1545	1500*4500	6.75	6-8	16-17	0-25	100-180	22	7.3
YK1848	1800*4800	8.64	6-8	16-17	300	100-250	18.5	5.6
2YK1848	1800*4800	8.64	6-8	16-17	150	100-500	22	6.5
3YK1848	1800*4800	8.64	6-8	16-17	300	100-200	22	7.2
YK1860	1800*6000	10.8	6-8	16-17	300	100-450	22	6.2
2YK1860	1800*6000	10.8	6-8	16-17	300	100-300	22	7.5
3YK1860	1800*6000	10.8	6-10	16-17	300	100-250	22	8.9
YK2160	2100*6000	12.6	6-10	13-15	300	100-864	22	8.3
2YK2160	2100*6000	12.6	6-10	13-15	300	150-800	30	10.6
3YK2160	2100*6000	12.6	6-10	13-15	300	150-800	30	11.9
4YK2160	2100*6000	12.6	6-10	13-15	300	150-800	30	13.5
YK2460	2400*6000	12.6	6-10	13-15	400	150-875	30	7
2YK2460	2400*6000	12.6	6-10	13-15	400	150-875	30	10.6
3YK2460	2400*6000	12.6	6-10	13-15	400	150-875	30	13
4YK2460	2400*6000	14.4	0-7	13-15	400	150-875	37	14
YK2865	2800*6500	18.2	0-7	13-15	400	150-875	37	15
2YK2865	2800*6500	18.2	0-7	13-15	400	150-875	37	15.5
3YK2865	2800*6500	18.2	0-7	13-15	400	150-875	45	16.7
4YK2865	2800*6500	21.6	0-7	16-17	500	200-875	45	18
YK3070	3000*7000	21	0-7	16-17	500	200-900	30	16
2YK3070	3000*7000	21	0-7	16-17	500	200-900	37	17
3YK3070	3000*7000	21	0-7	16-17	500	200-900	45	19.5
YK3270	3200*7000	22.4	0-7	16-17	500	200-950	37	17
2YK3270	3200*7000	22.4	0-7	16-17	500	200-950	45	18
3YK3270	3200*7000	22.4	0-7	16-17	500	200-950	2*37	22
YK3670	3600*7000	25.2	0-7	16-17	500	200-1000	45	18
2YK3670	3600*7000	25.2	0-7	16-17	500	200-1100	2*45	29.8
3YK3670	3600*7000	25.2	0-7	16-17	500	200-1200	2*45	35.5
