Energy saving gold flotation machine

Specifications

1) high magne
2)Short magnetic circuit,
3) little magnetic flux leakage

Taida  gold flotation machine inculde  ZSF Series, ZJJF Series  and  ZXJK Series:

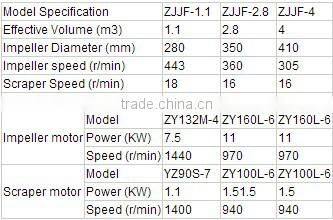

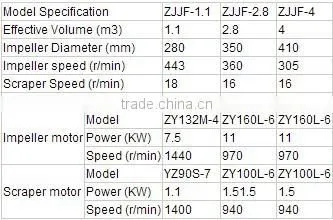

Introduction of   ZJJF Series Flotation Machine



 ZJJF series flotation machine is designed on the basis of principle of Wei Muke flotation machine. It is an ideal self-inspiratory mechanical agitation type flotation machine. The machine has the following features: inspiratory capacity is relatively stable; solid particles suspend better, Impeller installation is shallow depth, Stator has long life, Liquid surface is balance and high Sorting Efficiency. Generally, ZJJF series flotation machine is always applied with ZSF series flotation machine to form a joint unit; ZSF flotation machine is used for inhalation slot of pulp self-absorption while ZJJF series flotation machine is used for DC slot. Thus, operations space is level configuration without foam pump to get high sorting indicators. ZJJF series and ZSF series also play their respective advantages.
It is mainly used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, selection and flotation operations. Its performance is superior to ZXJK type flotation machine.

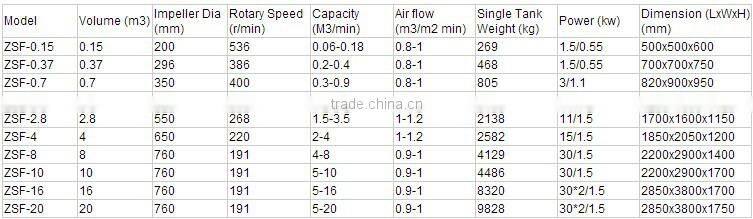

Introduction of Joyal ZSF Series Flotation Machine

After years' exploration in mining industry, the technology of flotation has been more and more professional. According to the changing of market conditions, Joyal brand flotation machine has been changed from single cell type to open flow type to meet modern requirements. Flotation machine is mainly used for mineral separation of the non-ferrous metal like copper ore, zinc ore, lead ore, nickel ore, gold ore, etc. It can be also used for the rough concentration and selected concentration of ferrous metal ore and nonmetallic ore.



Features of Joyal ZSF Series Flotation Machine

1. Self-suck air without foam pump, low power consumption;
2. Vertical recirculation of slurry can keep solids in suspension;
3. Pulp-air intensive mixed help for solids lifting and suspending;
4. Large volumes of pulp sucked can dispel concentrated soilds at the bottom;
5. Promote positive vertical circulation of pulp;
6. With feed pipe and impeller make sure the pulp is 100% mixed in every cell.

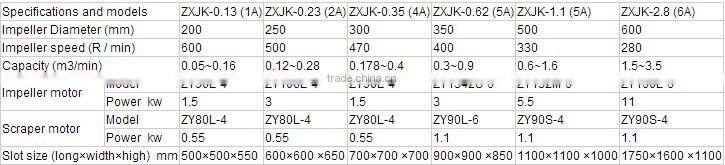

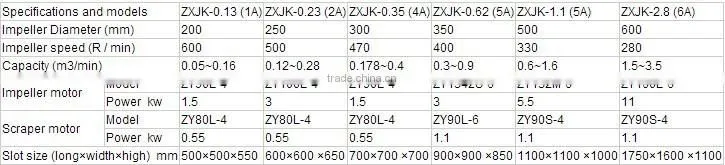

Introduction of Joyal ZXJK Series Flotation Machine

ZXJK series flotation machine flotation process is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper.

ZXJK series flotation select high grade concentrate from low grade Ore effectively. It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.
