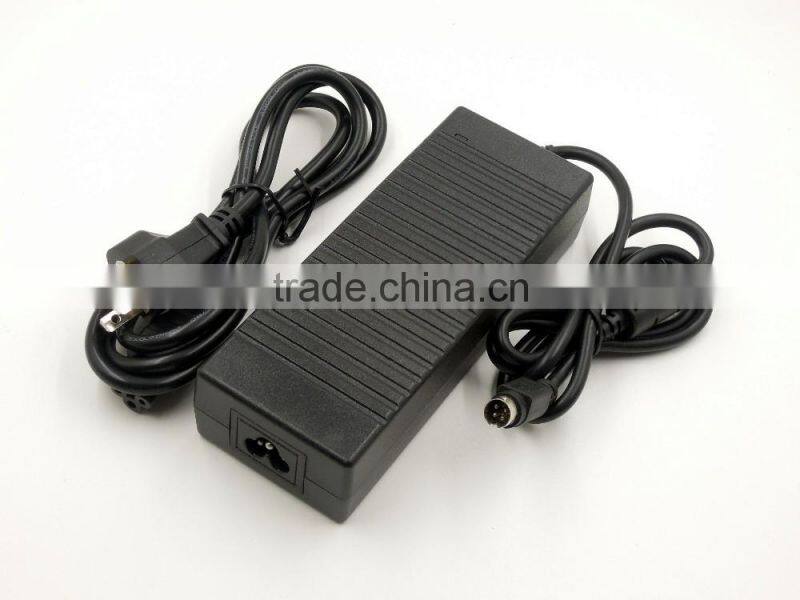

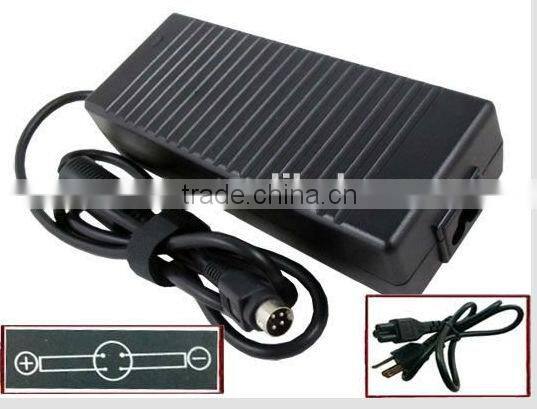

Desktop S-120-24 switching power supply 24V 5A 120w
Features:
Input Rated Voltage : | 100Vac~240Vac |
Input Frequency Range: | 47Hz~63Hz |
Input Inrush Current : | 0.3A max |
Efficiency : | 89%(MIN)at Rated Voltage |
Output: | 24V 5A |
Output power : | 120W |
Ripple and Noise : | <120mV at full road with 20MHz bandwidth |
Turn On Delay Time: | <3S (AC:110V and full load) |
Safety protection : | over voltage and current protection for power adapter |
Leakage Current: | <5mA |
DC cable length: | 1.5 meters |
Operating Temperature: | -10°C----+60°C |
Storage Temperature: | -20°C----+85°C |
Certificate: | CE FCC ROHS |
Application:
LCD Monitor, LED lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo Radio, Security System products, CCTV Cameras power supply.
