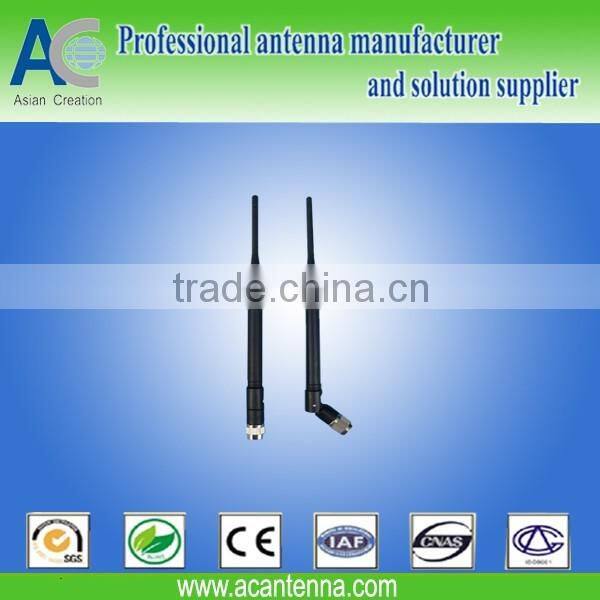

3.3-3.8GHz 5dBi Rubber Duck WIMAX Antenna
Applications:
AP Antenna is designed for the
3.5G Aspread spectrum communication
system. After optimizing the design
and tuning carefully, it has good VSWR.
The small dimension and
light structure make it easy to install.
It also has good shockproof and
anti-aging performance.
Features:
Low VSWR,
Good appearance,
Compact size,
Easy to mount
Stable performance
Electrical Specifications | |
Model | AC-Q35-L20 |
Frequency Range | 3400-3600MHz |
Gain | 5dBi |
VSWR | ≤1.8 |
Polarization | Vertical |
Impedance | 50ohm |
Maximum Input Power | 50W |
Connector | SMA Male |
Operating Temperature | -40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension | Φ13×210 mm |
Weight | 20g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
