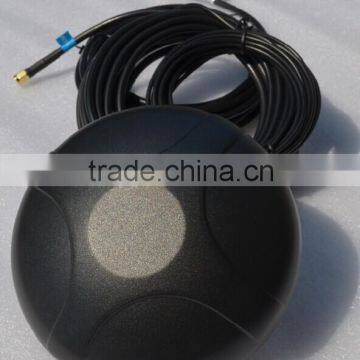

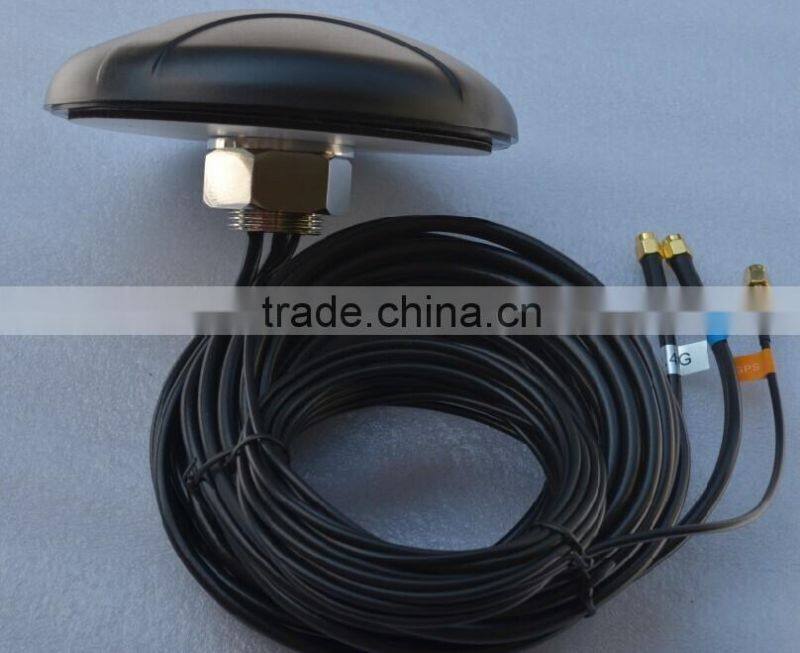

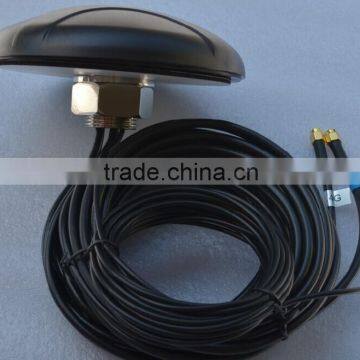

cellular antenna
Applications:
Vehicle gps navigation
Features:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Electrical Specifications | |
GPS Part: | |
Model | AC-GPS/GSM/WIFI-03 |
Center Frequency | 1575.42MHz |
Band width | ±5 MHz |
V.S.W.R | 1.5:1 |
Polarization | RHCP |
Impendance | 50Ω |
LNA Gain | 28±2dB Typical |
Noise Figure | 1.5dB |
V.S.W.R | <2.0 |
DC Voltage | 2.2-5.0V |
DC current | 5-15mA |
Cellular Part: | |
Frequency range | 824-960/1710-2170MHZ. |
VSWR | 2.0:1 |
Gain | 3dBi |
Polarization | Linear |
Impendance | 50Ω |
WIFI Part: | |
Frequency range | 2.4/5GHZ |
VSWR | 2.0:1 |
Gain | 3dBi |
Polarization | Linear |
Impendance | 50Ω |
Mechanical Specifications | |

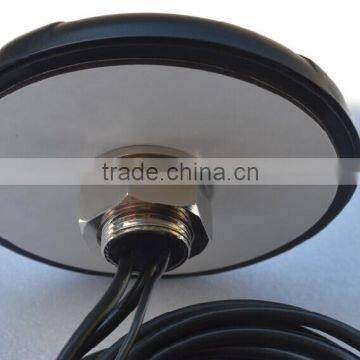

Mounting Method | Screw |
Housing | Black |
Cable | RG316/RG178/RG174/RG58U(can be customization) |
Length | 3M(can be customization) |
Connector | SMA Male(can be customization) |
Operating Temperature | -40°C~+85°C |
Humidity | 55%-75%RH |
Waterproof | IP67 |
Humidity | 95%~100%RH |
Antenna Dimension | 143.6×65 mm |
Weight | 1.2KG |
Memo: Above specification subject to change without further notice.Please contact us for more details.
