Bamboo BBQ Stick Producing Machinery

1.Introduction of Bamboo skewer producing machine

Name                      Power    Weight    Outline dimension

                                       (kw)      (kg)           (m)
1.sawing machine (bamboo)         1.5       60         1.0×0.6×1.2

usage: sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m

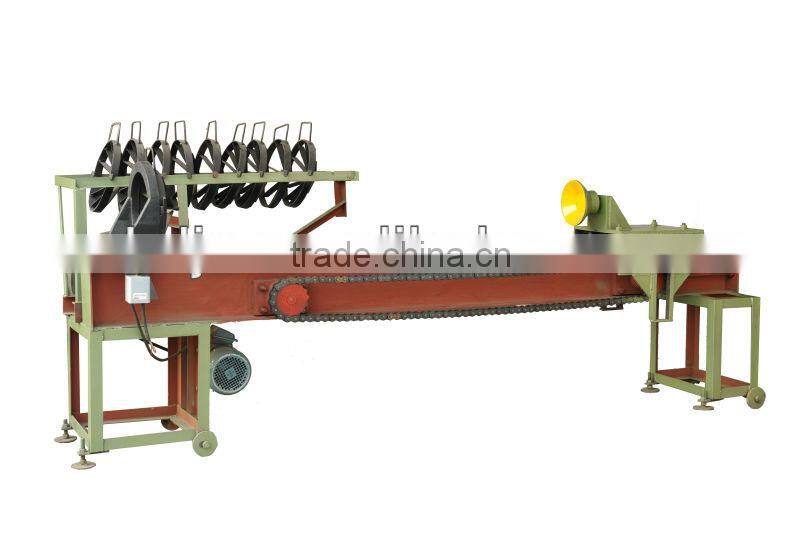

2. Bamboo dissection machine      4.0       800        3.3×0.8×1.1

usage: dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter head according to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min

3. flaker                                     1.5       130         0.7×0.7×1.2

Usage: put some of the flakes into this machine and flake, width is 3-4mm, speed of feeding is 87m/min

4. fixed width and thick  flaker                      2.2×3      500      1.6×0.7×1.2

Usage: put the polished bamboo flakes into this machine and make it

  to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min

5. Bamboo filament shaping machine3.0×2    400      1.0×0.7×1.2

                                                  1.1

usage: the normal standard is 2*2.2mm, speed of feeding is 87m/min

6. Bamboo filament set-size machine 0.75      200      1.5×0.8×1.0

Usage: set the filament, length of 34mm

7. Polishing machine                     2.2       400       2.6×1.1×1.1

Usage: polish the raw stick after the set-size

8.Bamboo filament mincing machine

Usage :mincing the stick

9.  Multi-sharpen machine           0.37      100       0.8×0.6×1.1

Usage: Sharpen the cutter and saw

 This production line is composed of these 9 machines above, which are able to produce stick.And the total output is 220,000 pieces/8hrs, this production need about 4 person to operate.

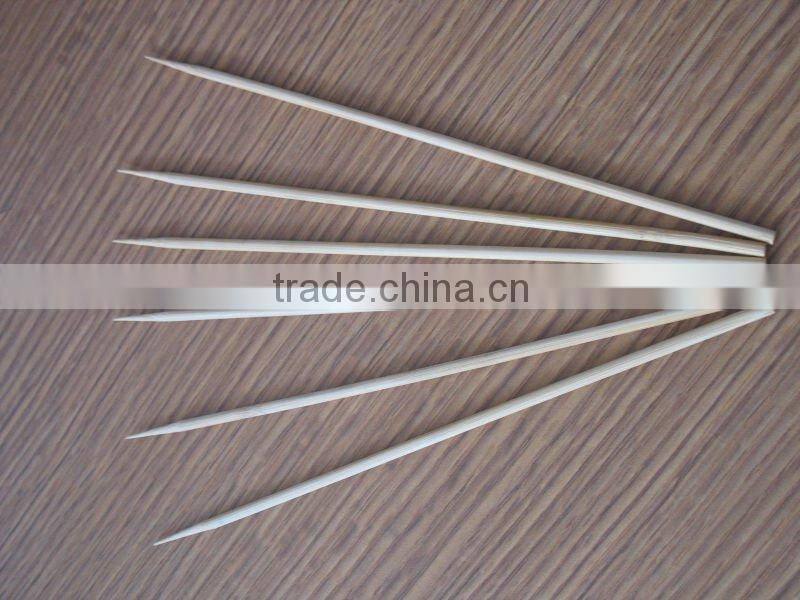

2.Photo of part of machines and production .
